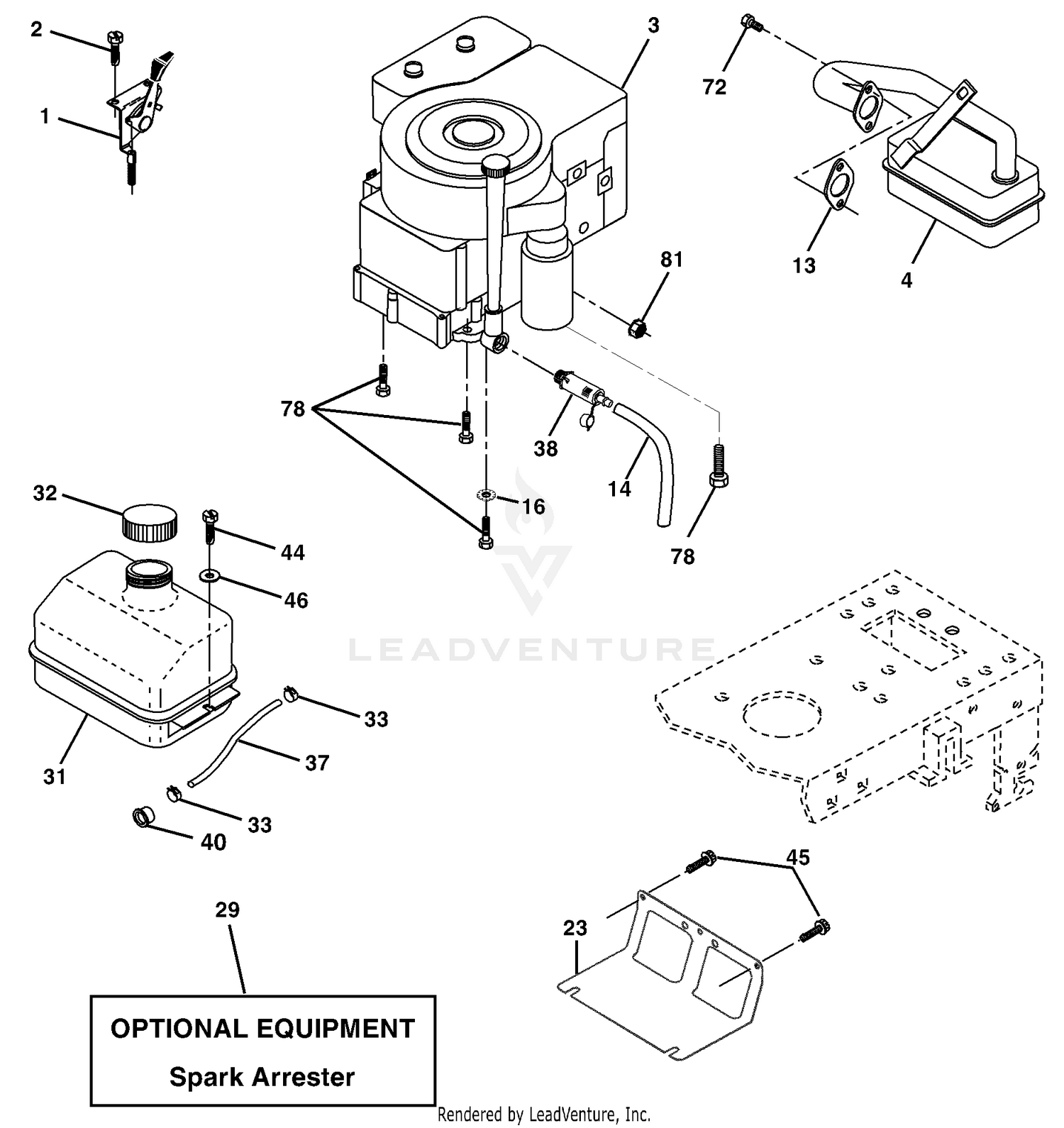

| Ref | Part Number | Description |
|---|
| 1 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 1 |
170551 |
Control Throt /Ch Flag Price: Call Us |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 2 |
75-3780 |
FAN-ENGINE Price: $367.12 |
| 3 |
75-6380 |
SHAFT-FAN Price: $141.82 |
| 4 |
104-9312 |
PIN-GROOVED Price: $1.63 |
| 4 |
137352 |
Muffler Exhaust B&S Lt Price: Call Us |
| 5 |
98-9743 |
PULLEY-DRIVE, FAN Price: $104.17 |
| 6 |
104-9259 |
WASHER-THRUST Price: $21.05 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
104-0001 |
SPACER Price: $25.45 |
| 9 |
75-4450 |
HUB This part replaces 75-4450-03. Price: $205.03 |
| 10 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
67-1630 |
SPACER Price: $28.84 |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 13 |
165291 |
Gasket 1 313 Id Tin Plated Price: Call Us |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
98-4530-03 |
SUPPORT-FAN Price: $349.24 |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 16 |
98-4575-03 |
LEVER-IDLER, FAN Price: $43.57 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
98-9744 |
BELT-FAN Price: $35.29 |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 20 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 21 |
98-9740 |
BRACKET-FAN, SUPPORT Price: $42.56 |
| 22 |
322-2 |
SCREW-HH Price: $0.69 |
| 23 |
169837 |
Shield Browning/Debris Guard Price: Call Us |
| 23 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 25 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 26 |
98-9741 |
BRACKET-MOUNT, FAN Price: $44.53 |
| 27 |
98-4561-03 |
SHIELD-ALTERNATOR Price: $56.98 |
| 28 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 29 |
137180 |
Arrestor Spark Price: Call Us |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 30 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 31 |
184900 |
Tank Fuel 1 25 Fr Price: Call Us |
| 31 |
33114-016 |
SCREW-HH Price: $0.27 |
| 32 |
140527 |
Cap Asm Fuel W/sym Vented Price: Call Us |
| 32 |
322-4 |
SCREW-HH Price: $0.35 |
| 33 |
123487X |
Clamp Hose Blk Price: Call Us |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Easy Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 44 |
17670412 |
Screw Hexwsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 ga Price: Call Us |
| 72 |
183906 |
Screw Socket Head 5/16-18 x 1 Price: Call Us |
| 78 |
17060620 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
