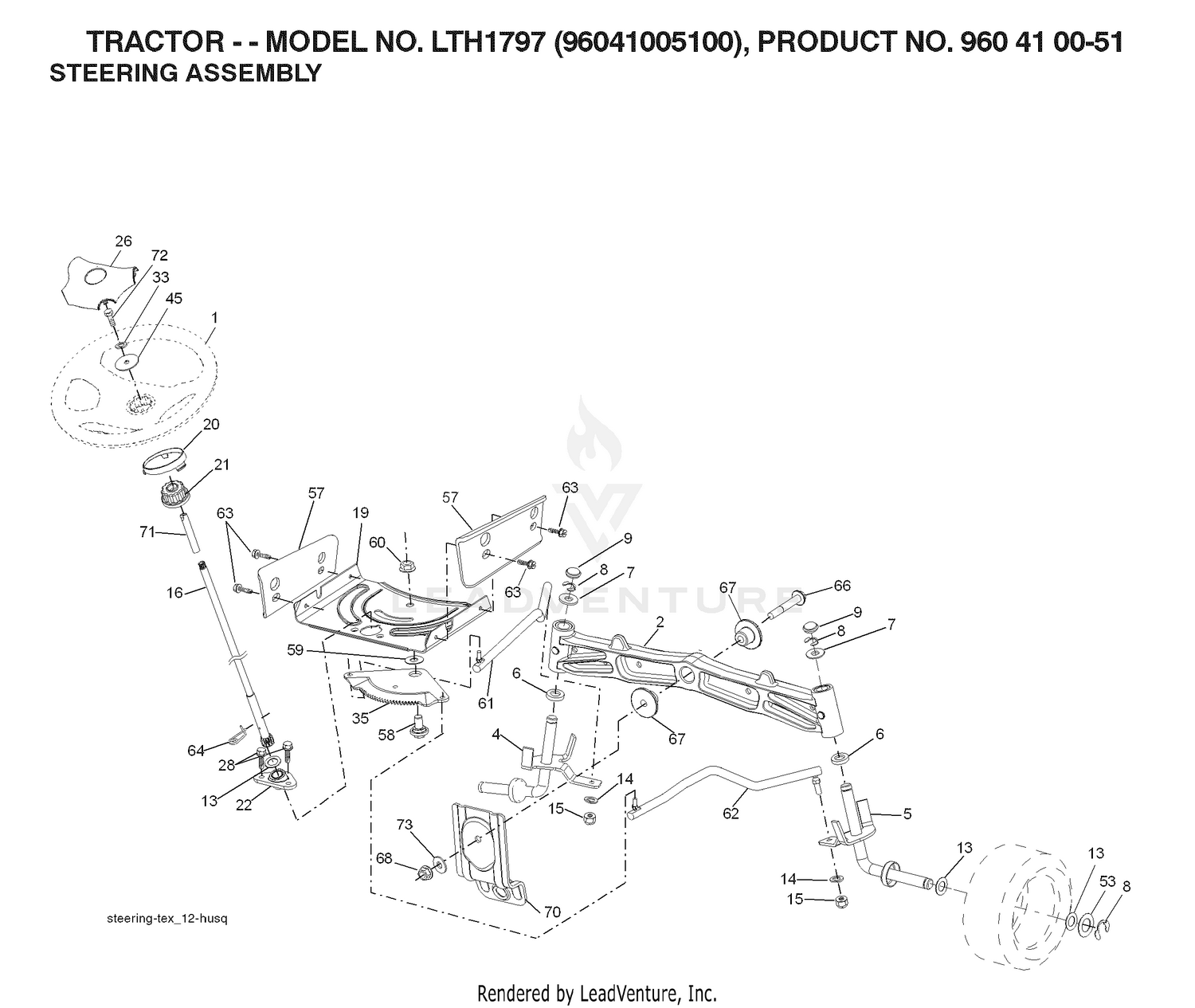

| Ref | Part Number | Description |
|---|
| 1 |
32128-23 |
NUT-HF Price: $1.51 |
| 1 |
532186094 |
STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $169.99 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
32153-5 |
NUT-HEX Price: $1.59 |
| 4 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
47-3800-01 |
STRAP-LOCKING This part replaces 47-3800. Price: $156.60 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
325-14 |
SCREW-HH Price: $2.64 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
32128-20 |
NUT-HF Price: $0.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
47-3480-03 |
SMV BRKT This part replaces 47-3480. Price: $36.01 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
38-6200 |
SOCKET-SLOW MOVING VEHICLE Price: $21.04 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 11 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 12 |
3-0136-01 |
CHAIN KEEPER ASM This part replaces 3-0136. Price: $51.92 |
| 13 |
325-18 |
SCREW-HH Price: $3.19 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
20-4390 |
SPACER Price: $12.54 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
47-3990 |
DECAL Price: $19.68 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
115-4947-01 |
HYDRAULIC CYLINDER ASM (10.69 STROKE) This part replaces 22-7520. Price: $880.23 |
| 16 |
532196074 |
SHAFT STEERING Price: $34.99 |
| 17 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT This part replaces 532411139. Price: $7.99 |
| 20 |
8-1280-01 |
REAR CROSS CHANNEL ASM This part replaces 8-1280. Price: $998.35 |
| 21 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
47-3840 |
ELBOW-ORIFICE (.094) Price: $37.03 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532194845. Price: $14.99 |
| 23 |
49-8170 |
SPACER Price: $27.34 |
| 24 |
3290-216 |
WASHER Price: $3.83 |
| 25 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 26 |
325-6 |
SCREW-HH Price: $1.42 |
| 26 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 27 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 28 |
3-0144 |
SHAFT Price: $53.89 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
65-2710 |
PLATE-INFORMATION Price: $19.40 |
| 30 |
3290-274 |
RIVET-POP Price: $0.25 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 71 |
532196075 |
SHAFT EXTENSION STEERING Price: $14.99 |
| 73 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
