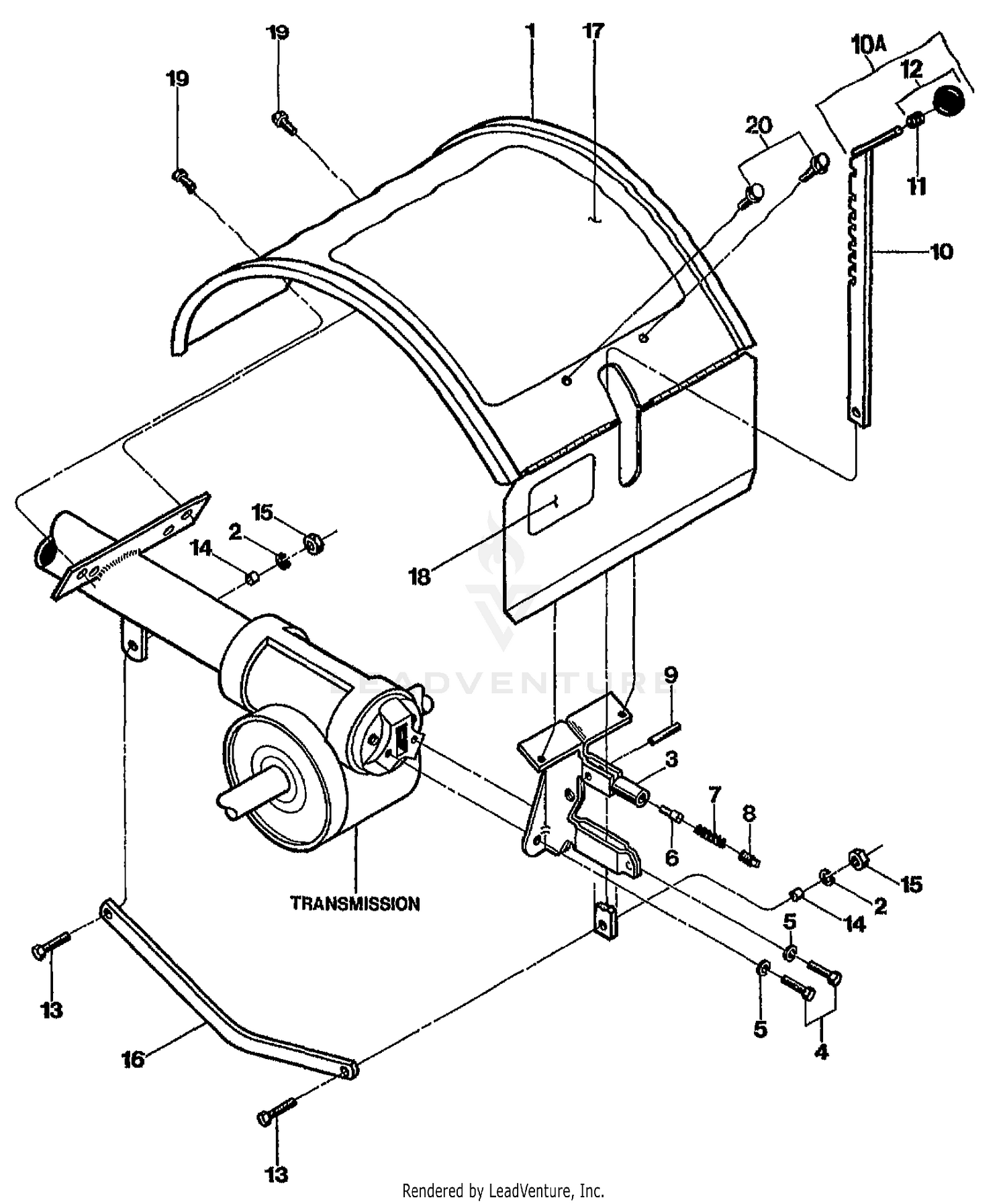

| Ref | Part Number | Description |
|---|
| 1 |
50239 |
HOOD W/DECALS P/J (Tine cover w/ hinged flap; Inc. 17 & 18.) Price: Call Us |
| 2 |
9913 |
WASHER-LK .375 @ DEPL Price: $1.89 |
| 3 |
2255 |
KIT-REAR HOOD BRKT (Hood & depth reg., Inc 9) Price: Call Us |
| 4 |
9703 |
SCR-HHC 5/16-18X.75 GR 5 ZP (Bracket to rear bearing cap.) Price: Call Us |
| 5 |
9912 |
WASHER-LK .312 ZP Price: $19.56 |
| 6 |
GW-1119 |
PLUNGER Not Available This part replaces 1119. Price: |
| 7 |
GW-1120 |
SPRING .406 x 1.25 Not Available This part replaces 1120. Price: |
| 8 |
1105620 |
PLUG-SQ HEAD 1/4-18 NPT This part replaces 9726. Price: $3.66 |
| 9 |
715-0108 |
Pin, Sprg, 1/4 Dia x 1.00 This part replaces 9308. Price: $4.38 |
| 10 |
N/A |
BAR ASSEMBLY (Not available separately, see #10A) |
| 10A |
1900864 |
Depth Regulator This part replaces 1117A. Price: $75.79 |
| 11 |
GW-9120 |
RING- retaining (tolerance ring) This part replaces 9120. Price: $5.94 |
| 12 |
GW-9119 |
KNOB -handlebar height adjustment This part replaces 9119. Price: $10.22 |
| 13 |
9712 |
SCR-HH 3/8-16X1.25 Price: Call Us |
| 14 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces 1113-1. Price: $4.53 |
| 15 |
9802 |
NUT-HEX 3/8-16 ZP Price: Call Us |
| 16 |
1916185001 |
DRAG BAR Not Available This part replaces 20775. Price: |
| 17 |
50236 |
DECAL-HOOD INST Price: Call Us |
| 18 |
50098 |
DECAL-TB JR LOGO Price: Call Us |
| 19 |
710-0607 |
SCREW 5/16-18 x .500 This part replaces 9553. Price: $6.06 |
