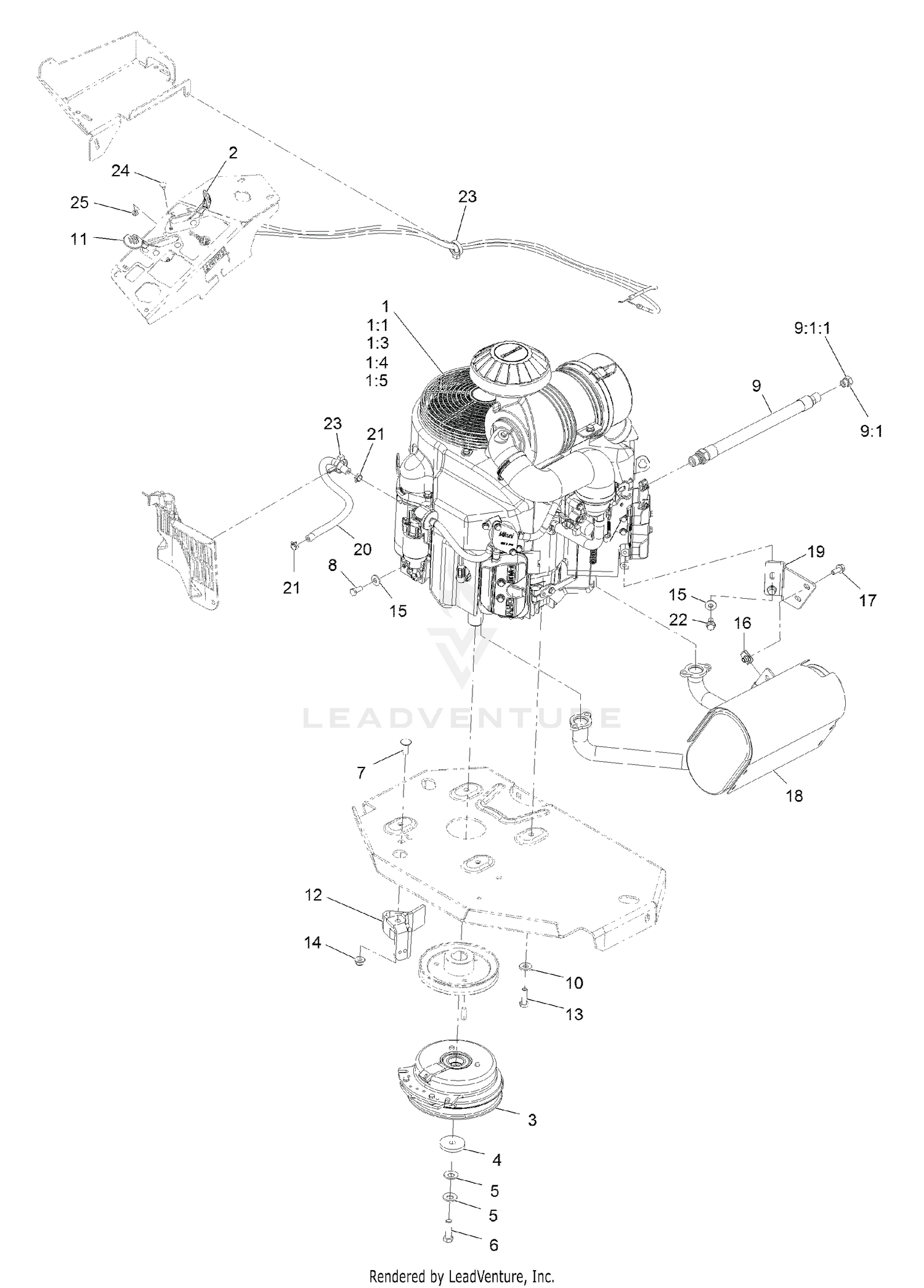

| Ref | Part Number | Description |
|---|
| 2 |
109-8167 |
ASM, CHOKE CABLE Price: $49.99 |
| 3 |
116-1620 |
CLUTCH KIT Price: $333.99 |
| 4 |
109-6919 |
WASHER-CLUTCH Price: $7.19 |
| 5 |
1-603610 |
WASHER-SPRING Price: $4.79 |
| 7 |
3231-22 |
SCREW-CARR Price: $3.09 |
| 8 |
33114-020 |
SCREW-HH Price: $0.59 |
| 9 |
116-4924 |
ENGINE OIL DRAIN HOSE ASM Price: $35.99 |
| 10 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 11 |
116-1972 |
ASM,THROTTLE CABLE Price: $32.99 |
| 12 |
116-2612-01 |
CLUTCH-ANCHOR Price: $51.99 |
| 13 |
323-7 |
SCREW-HH Price: $2.69 |
| 14 |
104-8301 |
NUT-HF, NI Price: $1.19 |
| 15 |
1-303334 |
WASHER-SPRING Price: $2.29 |
| 16 |
94-2413 |
NUT-U Price: $2.29 |
| 17 |
3234-5 |
SCREW-HHF Price: $0.99 |
| 18 |
135-7562 |
KIT, MUFFLER This part replaces 116-1712. Price: $368.99 |
| 19 |
116-0203 |
BRACKET-MUFFLER Price: $31.99 |
| 20 |
109-0296 |
HOSE-FUEL Price: $9.99 |
| 21 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 22 |
139-3392 |
SCREW-LOCK This part replaces 95-4184. Price: $2.69 |
| 23 |
105-1853 |
CLAMP-HOSE Price: $4.79 |
| 24 |
1-807513 |
BOLT-CARR Price: $2.29 |
