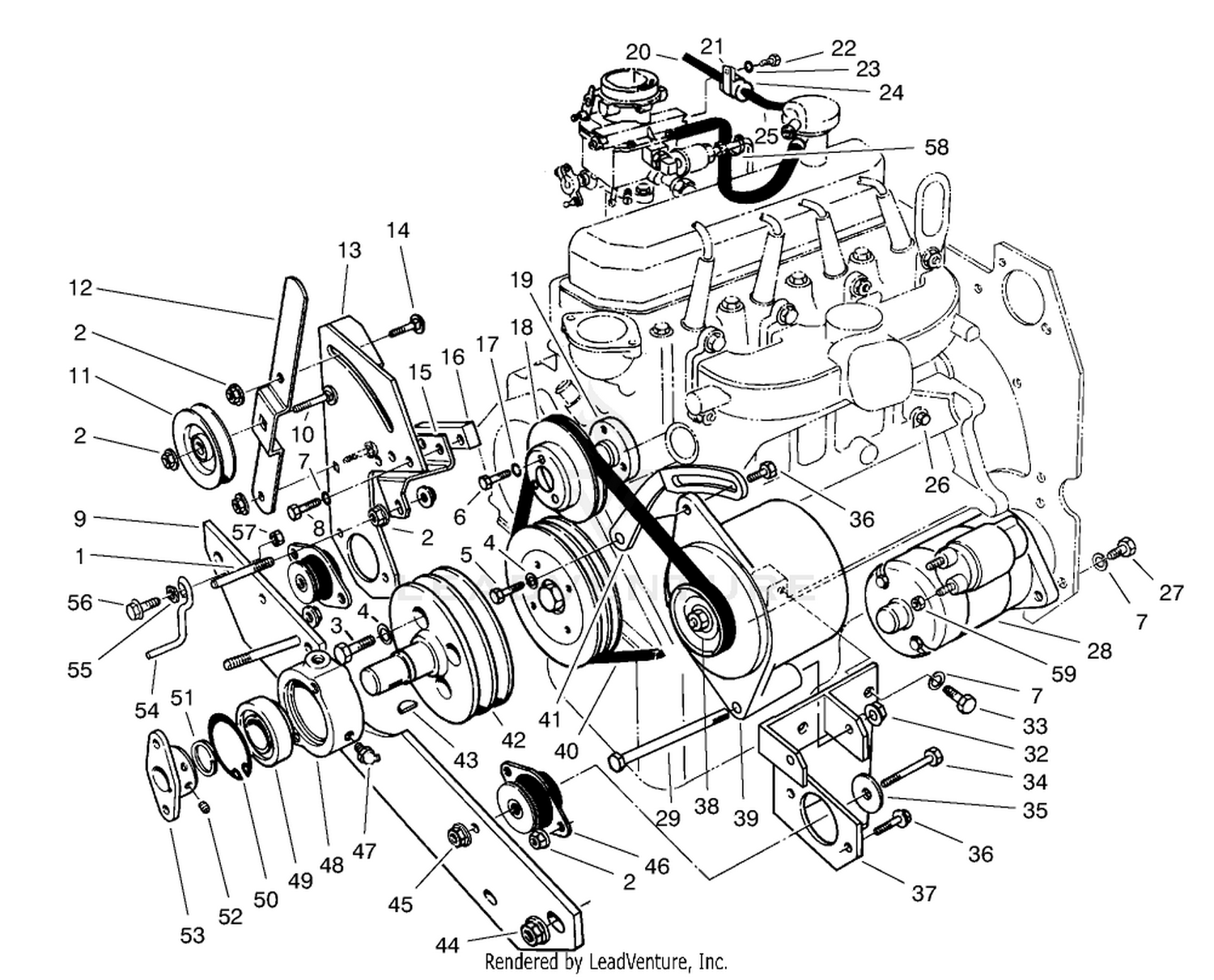

| Ref | Part Number | Description |
|---|
| 1 |
21-1820 |
STUD-RETAINER, BELT Price: $36.84 |
| 2 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 3 |
33114-045 |
SCREW-HH This part replaces 42-9500. Price: $0.68 |
| 4 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 5 |
33114-030 |
SCREW-HH This part replaces 48-7730. Price: $0.50 |
| 6 |
33113-025 |
SCREW-HH This part replaces 43-2600. Price: $1.97 |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
48-7800 |
SCREW-HH Price: $1.78 |
| 9 |
75-9900-01 |
SUPPORT-ENGINE, FRONT This part replaces 75-9900. Price: $226.52 |
| 10 |
3231-28 |
SCREW-CARR Price: $1.92 |
| 11 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 12 |
67-8890 |
DISCONTINUED Price: Call Us |
| 13 |
67-8310-03 |
MOUNT-ENGINE ASM This part replaces 67-8310. Price: $118.51 |
| 14 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 15 |
67-8350 |
BRACKET-GUIDE, BELT Price: $18.53 |
| 16 |
67-8340 |
BAR-SPACER Price: $15.05 |
| 17 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 19 |
67-8910 |
DISCONTINUED Price: Call Us |
| 20 |
70-1920 |
HOSE-VACUUM Price: $14.02 |
| 22 |
3250-29 |
SCREW-PPH Price: $0.25 |
| 23 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 25 |
70-1910 |
HOSE-ADVANCE, VACUUM Price: $3.68 |
| 27 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 29 |
3212-17 |
SCREW-HH Price: $2.17 |
| 32 |
32128-48 |
NUT-LOCK, HHF Price: $1.03 |
| 33 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 34 |
324-11 |
SCREW-HH Price: $3.05 |
| 35 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 36 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 37 |
93-7663 |
DISCONTINUED Price: Call Us |
| 38 |
D3JL-10A352-B |
Pulley-Alternator Price: Call Us |
| 39 |
EZJL-10346-AA |
Alternator Price: Call Us |
| 40 |
92-9785 |
V-BELT Price: $18.65 |
| 41 |
93-8489 |
DISCONTINUED Price: Call Us |
| 42 |
67-8460 |
PULLY-ENGINE Price: $452.39 |
| 43 |
3257-33 |
KEY-WOODRUFF Price: $1.76 |
| 44 |
32128-23 |
NUT-HF Price: $1.51 |
| 45 |
32128-37 |
NUT-HF Price: $3.63 |
| 46 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 47 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 48 |
43-3720 |
COLLAR-BEARING Price: $249.41 |
| 49 |
251-252 |
BEARING Price: $98.35 |
| 50 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 51 |
32120-69 |
RING-SNAP Price: $2.78 |
| 52 |
3241-5 |
SCREW-SET Price: $0.61 |
| 53 |
110-5236 |
HUB-ENGINE This part replaces 27-1960. Price: $30.97 |
| 54 |
63-1400 |
ROD-BELT Price: $17.83 |
| 55 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 56 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 57 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 58 |
3290-379 |
TIE-CABLE Price: $0.31 |
