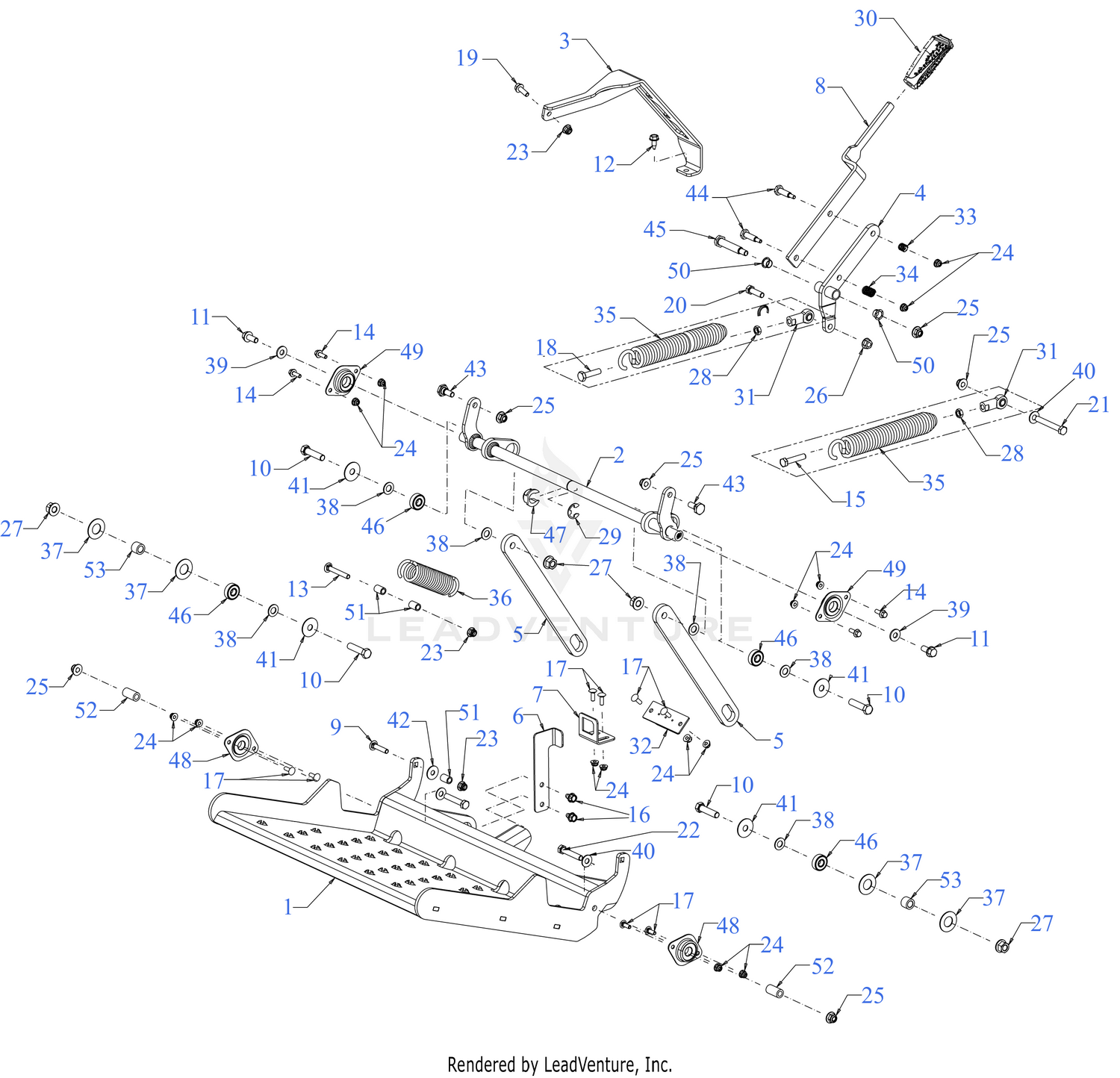

| Ref | Part Number | Description |
|---|
| 2 |
680E01514 |
ROLLER LINK Price: $96.45 |
| 3 |
680E01714 |
ADJUSTMENT INDEX Price: $79.04 |
| 4 |
680E01754 |
ADJUSTMENT ARM Price: $40.92 |
| 5 |
703E19407 |
SUSPENSION LINK Price: $14.61 |
| 6 |
703E19785 |
SWITCH BRACKET Price: $7.59 |
| 8 |
703E20365 |
ADJUSTMENT SPRING LEVER Price: $14.73 |
| 9 |
710-0262 |
CARRIAGE BOLT 5/16-18 x 1.50 Price: $3.66 |
| 10 |
710-04092 |
SCREW 7/16-20 x 1.75 GR 5 Price: $3.70 |
| 11 |
710-04482 |
SCREW 3/8-16 x .875 GR5 Price: $4.08 |
| 12 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 13 |
710-0572 |
BOLT 5/16-18 x 2.50 GR1 Price: $3.75 |
| 14 |
710-04666 |
SCREW 1/4-20 x .75 GR5 Price: $6.04 |
| 15 |
710-0539 |
SCREW 3/8-24 x 1.75 GR5 Price: $3.95 |
| 16 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 17 |
710-0703 |
SCREW 1/4-20 x .75 GR5 Price: $3.66 |
| 18 |
710-1044 |
SCREW 3/8-24 x 1.50 GR8 Price: $3.48 |
| 19 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD This part replaces 710-1238. Price: $3.74 |
| 20 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 21 |
710-3022 |
SCREW 3/8-16 x 2.75 GR5 Price: $4.09 |
| 22 |
710-3096 |
SCREW 3/8-16 x 2.0 GR 8 Price: $7.03 |
| 23 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 24 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 25 |
712-04065 |
NUT Price: $3.68 |
| 26 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 26 |
912-0431 |
HEX LOCK NUT Price: $4.29 |
| 27 |
712-0459 |
FLANGE LOCK NUT Price: $4.39 |
| 28 |
712-0711 |
HEX JAM NUT 3/8X24 Price: $3.90 |
| 29 |
716-0231 |
E-RING Price: $3.50 |
| 30 |
720-04139B |
GRIP Price: $16.45 |
| 31 |
723-04038 |
ROD END 3/8 ID Price: $52.94 |
| 32 |
731-04016 |
SUSPENSION BUMPER Price: $39.59 |
| 33 |
732-0334 |
COMPRESSION SPRING Price: $3.38 |
| 34 |
732-04756 |
COMPRESSION SPRING Price: $2.92 |
| 35 |
732-04959 |
ADJUSTMENT SPRING Price: $46.54 |
| 36 |
732P07126 |
EXTENSION SPRING 1.478 x 5.729 Price: $15.67 |
| 37 |
736-0188 |
FLAT WASHER .760ID X1.49OD x .06 Price: $3.75 |
| 38 |
736-3024 |
FLAT WASHER .469X.750X.054 Price: $3.19 |
| 39 |
736-0262 |
FLAT WASHER .385X.870X.090 Price: $3.66 |
| 40 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 40 |
736-05080 |
FLAT WASHER .401X.88 Price: $2.72 |
| 41 |
936-0406 |
FLAT WASHER Price: $5.94 |
| 42 |
736-3078 |
FLAT WASHER 344X1.00 Price: $3.95 |
| 43 |
738-0380 |
SHOULDER SCREW Price: $7.34 |
| 44 |
738-0572 |
SHOULDER SCREW Price: $7.03 |
| 45 |
738-1011A |
SHOULDER SCREW .50 x 2.23 3/8-16 Price: $7.65 |
| 46 |
741P04245 |
BALL BEARING Price: $4.17 |
| 47 |
741-04504 |
HEX FLANGE SPLIT BEARING Price: $7.71 |
| 48 |
741-04566 |
BALL BEARING Price: $13.94 |
| 49 |
741-04569 |
BALL BEARING Price: $22.68 |
| 50 |
741-0491 |
NYLINER BEARING Price: $4.39 |
| 51 |
750-06170 |
SLEEVE .33X.50X.75 LG Price: $4.64 |
| 52 |
750-08410 |
SPACER .380x.624x1.040 Price: $3.89 |
