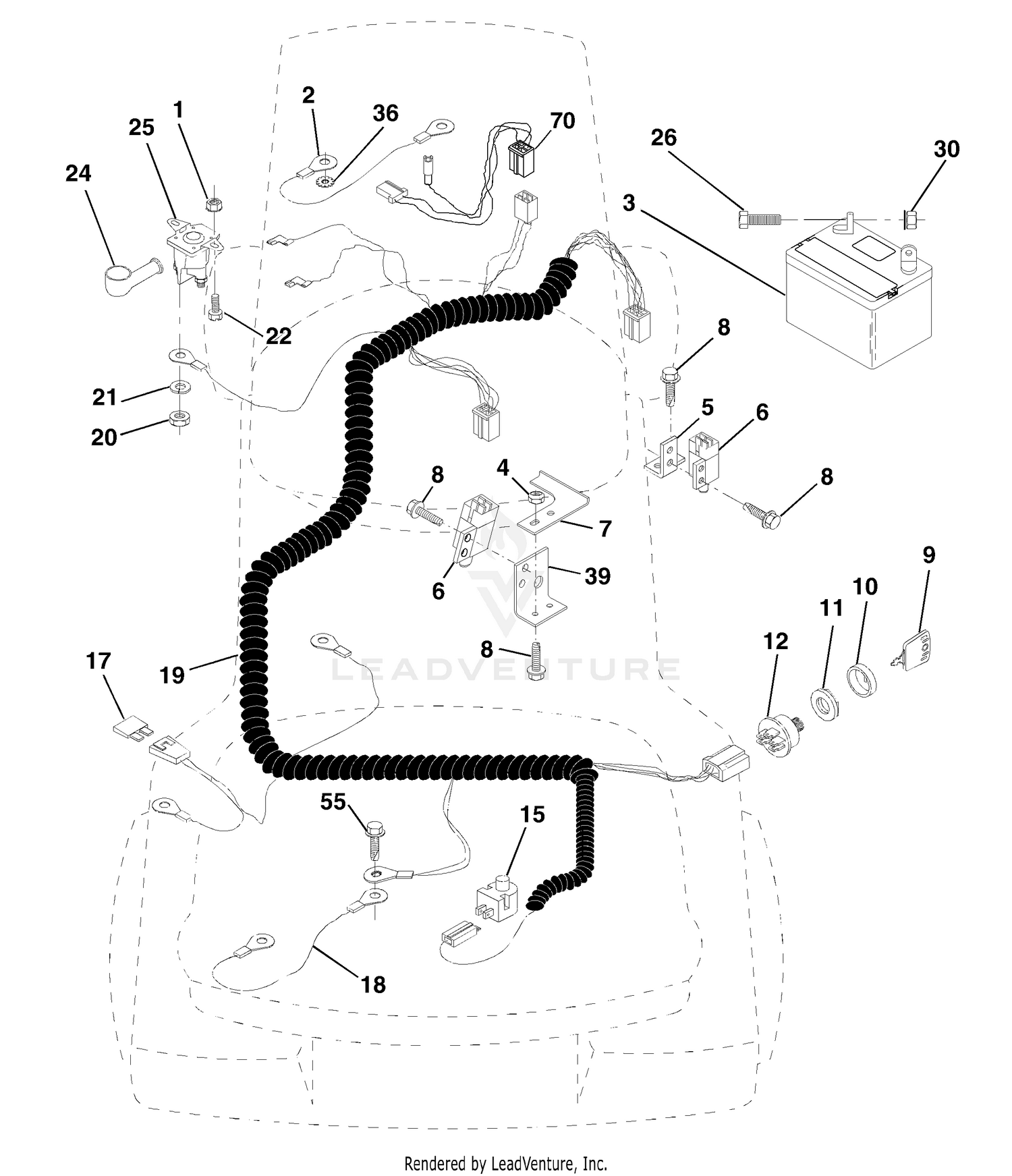

| Ref | Part Number | Description |
|---|
| 1 |
86-2280-01 |
TUBE-CARRIER, RH ASM Price: $252.07 |
| 1 |
873640400 |
Nut, Hex Keps 1/4-20 Price: $2.99 |
| 2 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 2 |
532108423 |
CABLE.BATTERY.6GA.16"RED Price: $6.99 |
| 3 |
325-11 |
SCREW-HH Price: $1.93 |
| 3 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144924. Price: $149.99 |
| 4 |
532069180 |
LOCKNUT Price: $2.99 |
| 4 |
86-2320-01 |
TUBE-CARRIER, LH ASM Price: $370.08 |
| 5 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 5 |
532108236 |
BRACKET LT Price: $2.99 |
| 6 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 6 |
86-8100-01 |
BALL JOINT ASM Price: $137.53 |
| 7 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 7 |
532146374 |
KEEPER, ACTUAT. L.R. Price: $2.38 |
| 8 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 8 |
817021008 |
SCREW Price: $3.99 |
| 9 |
32136-2 |
NUT-SHH Price: $3.55 |
| 9 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 10 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 11 |
532145774 |
KIT-WASHER/NUT This part replaces 532140400. Price: $3.99 |
| 12 |
532158913 |
KIT.SWITCH.IGNITION This part replaces 532144921. Price: $39.99 |
| 15 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 17 |
532108824 |
FUSE HYT Price: $4.99 |
| 18 |
532128353 |
CABLE ASSY Price: $3.99 |
| 19 |
532146063 |
HARNESS, IGN FEND Price: $74.13 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 21 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 22 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 24 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 25 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 30 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 36 |
811150400 |
Washer Lock Inter. Tooth 1/4 Price: $2.99 |
| 39 |
532141735 |
BRACKET Price: $2.99 |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
