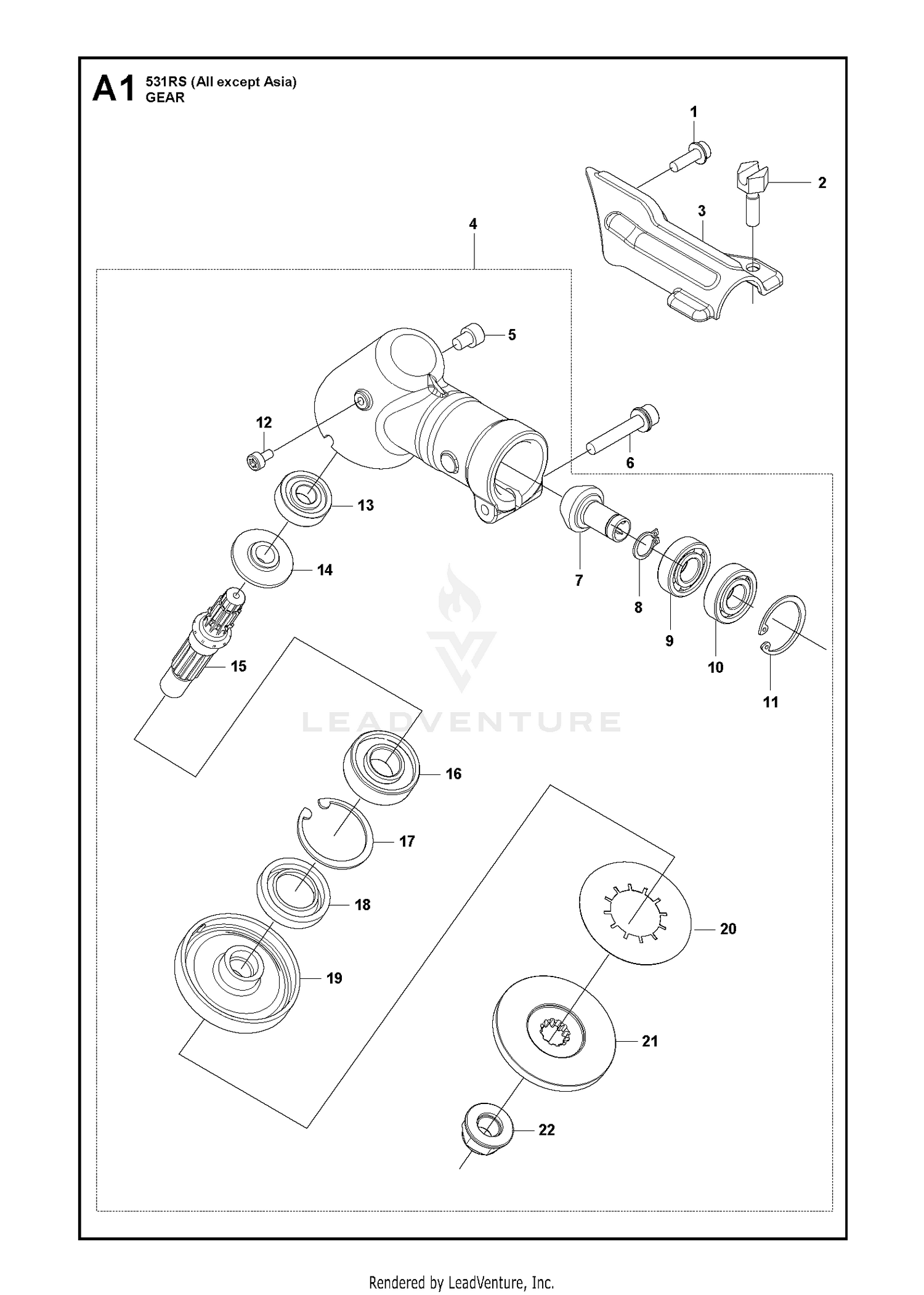

GEARS 2
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 574710801 | BOLT Price: $2.99 |
| 2 | 43-5940 | WASHER-LOCK, SPRING Price: $0.70 |
| 2 | 537189501 | SCREW Price: $3.99 |
| 3 | 104-9902 | WASHER-FLAT Price: $20.50 |
| 3 | 528818501 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 100-7599 | BEARING-BALL Price: $39.33 |
| 4 | 579076201 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 100-7588-03 | TINE ARM ASM Price: $617.26 |
| 5 | 521862001 | BOLT,TORX M6X8 Price: $2.99 |
| 6 | 100-7598 | RING-SNAP Price: $93.01 |
| 6 | 576590701 | BOLT Price: $2.99 |
| 7 | 100-7644 | BELT-HA ( SET 2=1 PC ) Price: $53.87 |
| 7 | 579076801 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 33119-120 | SCREW-HH Price: $14.56 |
| 8 | 516124101 | RING Price: $3.99 |
| 9 | 33115-120 | SCREW-HH Price: $4.61 |
| 9 | 516127901 | BEARING Price: $5.99 |
| 10 | 33099-00 | WASHER-FLAT Price: $0.95 |
| 10 | 516130001 | BEARING,12MM ID,28MM OD, 8MM W Price: $7.99 |
| 11 | 100-7580 | BOTTOM LINK ASM Price: $331.60 |
| 11 | 506609901 | RING Price: $2.99 |
| 12 | 100-5391 | TUBE-SPACER Price: $14.28 |
| 12 | 544362701 | BOLT Price: $2.99 |
| 13 | 100-7607 | WASHER-LOCK Price: $2.71 |
| 13 | 505170201 | BEARING Price: $5.99 |
| 14 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 14 | 579076701 | NEEDS DESCRIPTION Price: Call Us |
| 15 | 100-7606 | NUT-HEX Price: $2.92 |
| 15 | 579076601 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 104-9913 | SCREW-HH, LH Price: $31.00 |
| 16 | 516131701 | BEARING 0600406202 Price: $7.99 |
| 17 | 100-7631 | PULLEY-IDLER Price: $146.29 |
| 17 | 502849301 | SNAP RING Price: $2.99 |
| 18 | 100-7578 | SPACER-IDLER,SHORT Price: $14.03 |
| 18 | 521522201 | SEAL Price: $2.99 |
| 19 | 100-7579 | SPACER-IDLER, LONG Price: $17.54 |
| 19 | 579076901 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 328-23 | SCREW-HH Price: $13.03 |
| 21 | 579077101 | NEEDS DESCRIPTION Price: Call Us |
| 22 | 579076401 | NEEDS DESCRIPTION Price: Call Us |
