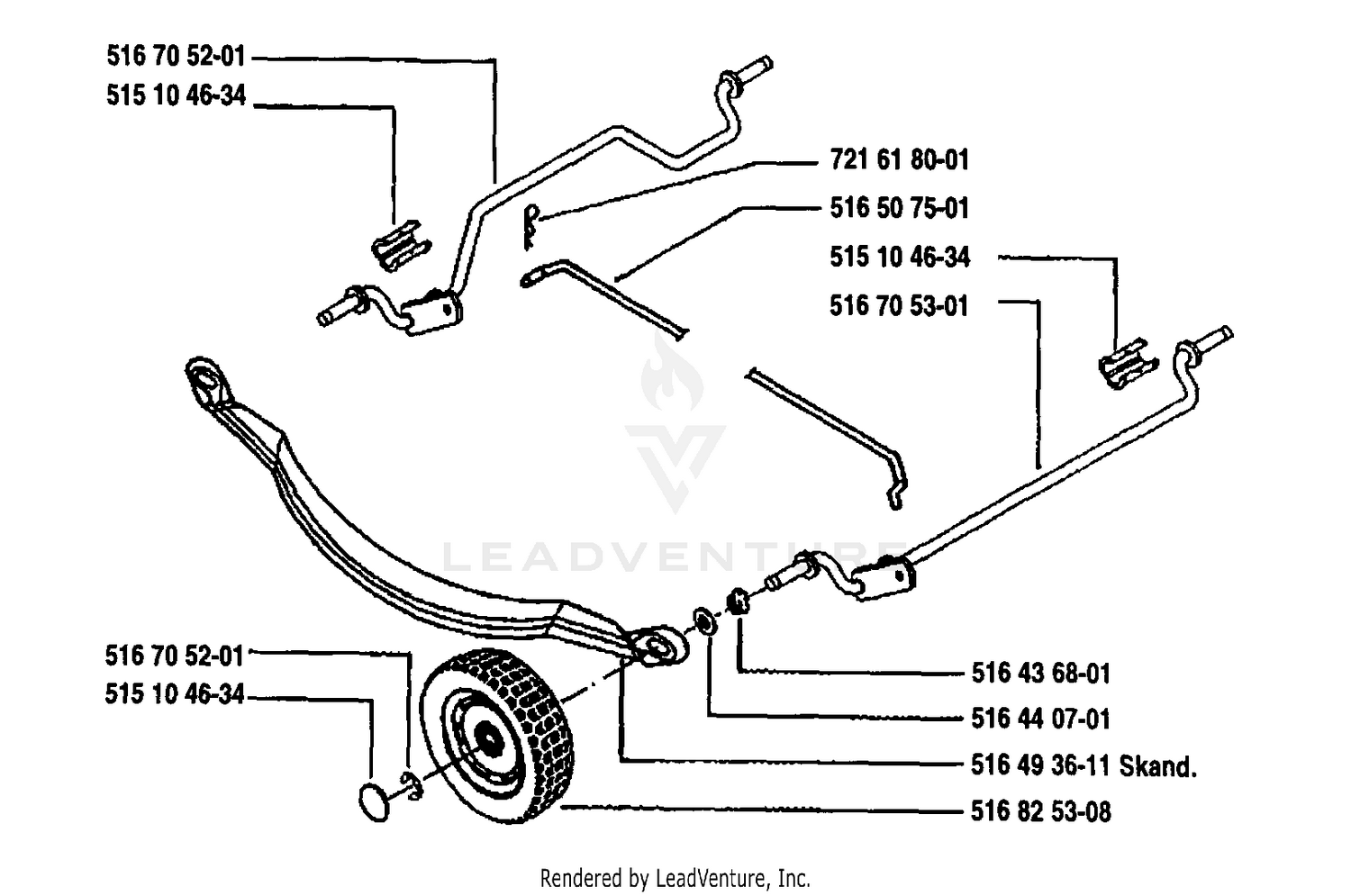

Chassis Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 515104634 | 515104634 | WHEEL BRG Price: $2.99 |
| 516436801 | 516436801 | CONE SPRING Price: $1.59 |
| 516440701 | 516440701 | WASHER Price: $2.39 |
| 516493611 | 516609511 | PLATE NLA This part replaces 516493611. Price: $38.40 |
| 516507501 | 516507501 | STAY Price: $34.96 |
| 516705201 | 516705201 | SHAFT Price: $149.99 |
| 516705301 | 516705301 | Price: $42.67 |
| 516825308 | 516825308 | WHEEL Price: $42.99 |
| 721618001 | 721618001 | PIN Price: $3.99 |
