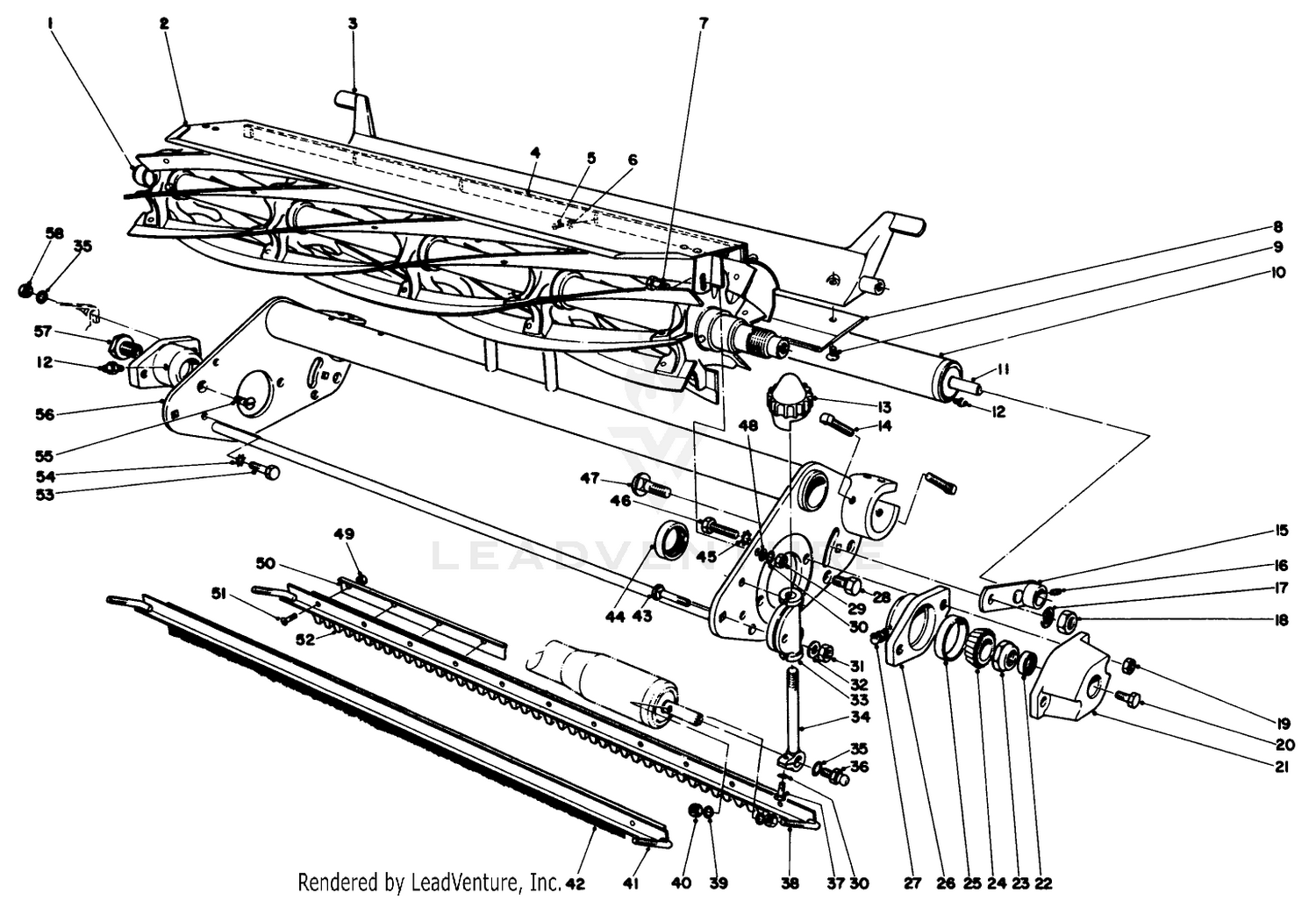

| Ref | Part Number | Description |
|---|
| 1 |
137-8577 |
ES REEL-SPA 4 BOLT, 8 BLD This part replaces 5-3189. Price: $506.13 |
| 2 |
36-7190 |
GRASS SHIELD ASM Price: $89.46 |
| 3 |
10-4930-01 |
BAR-BED This part replaces 10-4930. Price: $194.64 |
| 4 |
36-7260 |
BAR-OFF, CUT Price: $24.10 |
| 5 |
3290-237 |
SLOT HD SCREW Price: $0.25 |
| 6 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 7 |
321-4 |
SCREW-HH Price: $0.99 |
| 8 |
94-6395 |
BEDKNIFE, LOWCUT, GR This part replaces 19-8880. Price: $60.45 |
| 9 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 10 |
21-8450 |
REAR ROLLER ASM Price: $188.65 |
| 11 |
52-3180 |
BEARING-ROLLER, FRONT This part replaces 21-8430. Price: $31.50 |
| 12 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 13 |
65-8600 |
KNOB-ADJUSTMENT, HEIGHT This part replaces 10-5040. Price: $43.42 |
| 14 |
3243-13 |
SCREW-SET, SQH Price: $3.32 |
| 15 |
27-2650 |
HOC ADJUSTMENT ASM Price: $59.81 |
| 16 |
3290-125 |
SCREW-SET,HSH Price: $1.47 |
| 17 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 18 |
3217-9 |
NUT-HH Price: $0.37 |
| 19 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 20 |
323-2 |
SCREW-HH Price: $0.68 |
| 21 |
10-5080-01 |
CAP-END This part replaces 10-5080. Price: $94.19 |
| 22 |
253-61 |
SEAL-OIL Price: $9.11 |
| 23 |
3296-60 |
NUT-LOCK, NI This part replaces 32127-46. Price: $5.08 |
| 24 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 25 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 26 |
108-6475 |
KIT-BEARING HOUSING This part replaces 10-5120. Price: $42.60 |
| 27 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 28 |
217-74 |
BOLT-WHEEL Price: $4.87 |
| 29 |
3217-5 |
NUT-HEX Price: $0.25 |
| 30 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 31 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 32 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 33 |
10-5060 |
BRACKET-HOC Price: $38.24 |
| 34 |
10-5010 |
SCREW-ADJUSTMENT, ROLLER Price: $53.13 |
| 35 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 36 |
94-2958 |
STUD/BALL This part replaces 2411-7. Price: $6.70 |
| 37 |
321-4 |
SCREW-HH Price: $0.99 |
| 38 |
11-0070 |
SCRAPER COMB ASM Price: $92.26 |
| 39 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 40 |
3219-1 |
NUT-HEX Price: $0.47 |
| 41 |
33-1000 |
SCRAPER BRUSH ASM Price: $54.29 |
| 42 |
33-0630 |
BRUSH Price: $24.64 |
| 43 |
3230-5 |
BOLT-CAR Price: $0.54 |
| 44 |
253-96 |
SEAL-OIL Price: $6.85 |
| 45 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 46 |
323-9 |
SCREW-HH This part replaces 32105-4. Price: $1.29 |
| 47 |
3233-26 |
SCREW-CARR, SHORT NECK Price: $2.21 |
| 48 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 49 |
3296-9 |
NUT-HEX Price: $0.25 |
| 50 |
8-2520 |
DISCONTINUED Price: Call Us |
| 51 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 52 |
8-2530 |
COMB Price: $34.64 |
| 53 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 54 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 55 |
32108-20 |
SCREW Price: $0.61 |
| 56 |
36-7230 |
DISCONTINUED Price: Call Us |
| 57 |
93-1394 |
NUT-SPLINE This part replaces 10-5100. Price: $27.80 |
| 58 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
