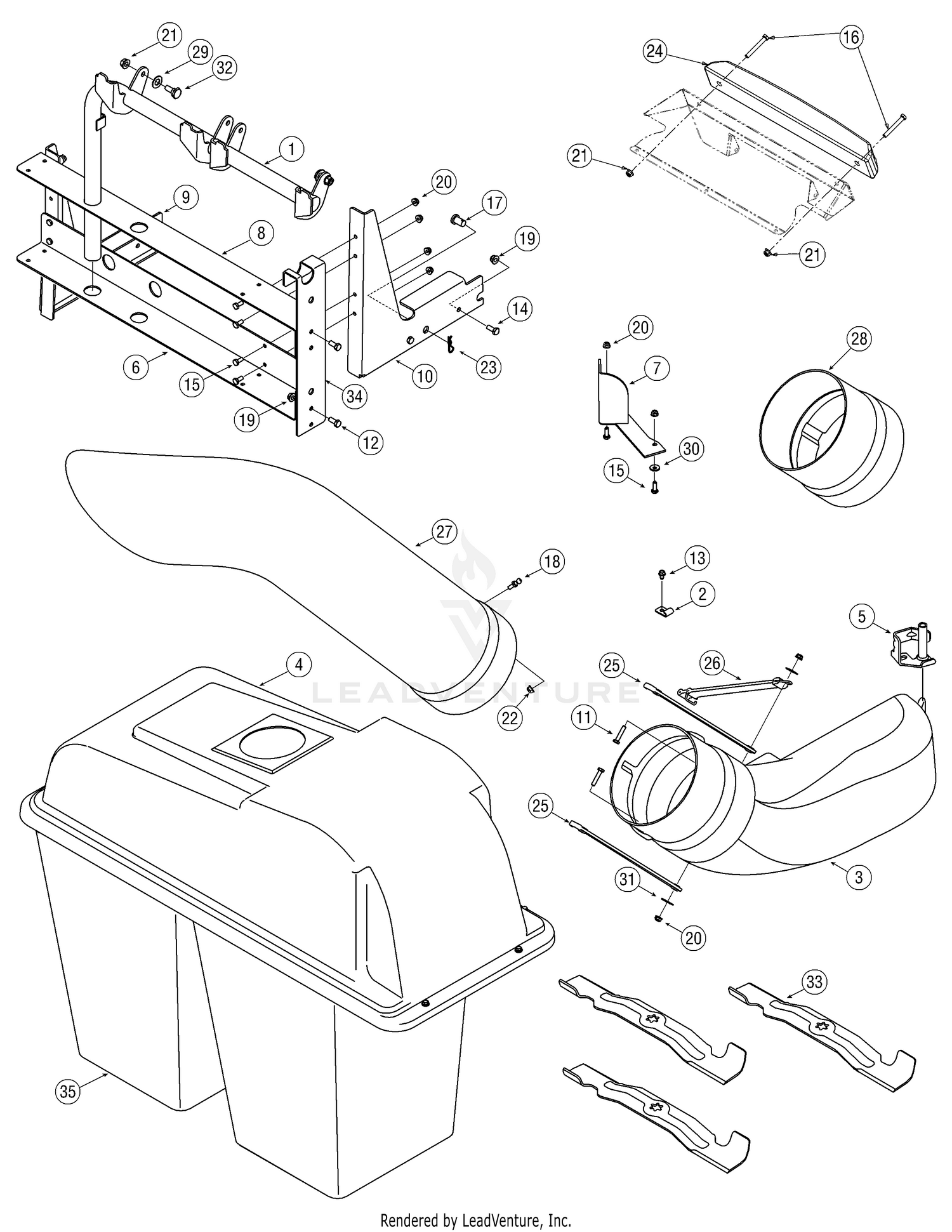

| Ref | Part Number | Description |
|---|
| 1 |
16592-0637 |
Support Tube Assembly This part replaces 16592. Price: $170.58 |
| 2 |
96606 |
Retainer Hook Bracket This part replaces 16606. Price: $6.71 |
| 3 |
631-0221A |
Chute Elbow Price: $228.96 |
| 4 |
664-04017 |
COVER ASSEMBLY- Not Available Price: |
| 5 |
683-0617A-0637 |
Chute Stop Bracket This part replaces 683-0617A. Price: $60.14 |
| 6 |
703-05195-0637 |
HANGER BRACKET (POWDER BLACK) Not Available This part replaces 703-05195. Price: |
| 7 |
703-05783-0637 |
Deck Baffle, 50" This part replaces 703-05783. Price: $76.79 |
| 8 |
703-05833 |
TOP HANGER BRACKET Not Available Price: |
| 9 |
783-05856A |
Catcher Mounting Bracket LH Price: Call Us |
| 10 |
703-05858A |
SUPPORT BRACKET (RH) Not Available Price: |
| 11 |
710-0106 |
Hex Bolt 1/4-20 x 1.25 Gr5 Price: $3.66 |
| 12 |
710-0376 |
Hex Bolt 5/16-18 x 1.00 Gr5 Price: $3.66 |
| 13 |
710-0599 |
TT Screw 1/4-20 x 0.5 Price: $3.86 |
| 14 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 15 |
710-3015 |
Hex Bolt 1/4-20 x 0.75 Gr5 Price: $3.65 |
| 16 |
710-3022 |
Hex Bolt 3/8-16 x 2.75 Gr5 Price: $4.09 |
| 17 |
911-0332 |
Clevis Pin, .50" Dia. This part replaces 711-0332. Price: $14.98 |
| 18 |
911-04069 |
Grass-catcher Pin This part replaces 711-04069. Price: $7.81 |
| 19 |
712-04063 |
Flange Lock Nut, 5/16-18 GrF Price: $3.56 |
| 20 |
712-04064 |
Flange Lock Nut 1/4-20 GrF Price: $3.64 |
| 21 |
712-04065 |
Flange Lock Nut 3/8-16 GrF Price: $3.68 |
| 22 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 23 |
714-04023 |
Cotter Pin Price: $3.90 |
| 25 |
723-04009A |
Chute Strap Price: $10.57 |
| 26 |
723-0476 |
Chute Strap Price: $30.86 |
| 27 |
731-0926B |
Chute Tube Price: $124.78 |
| 28 |
731-2299A |
Chute Extension Not Available Price: |
| 29 |
736-0253 |
Bell Washer Price: $3.58 |
| 30 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 31 |
736-3092 |
Flat Washer Price: $3.68 |
| 32 |
738-0380 |
Shoulder Screw 3/8-16 Price: $7.34 |
| 33 |
742-04056C-0637 |
Bagging Blade, 17.90 Lg. Star Not Available This part replaces 742-04056C. Price: |
| 34 |
783-0601-0637 |
Mounting Bracket This part replaces 783-0601. Price: $32.78 |
