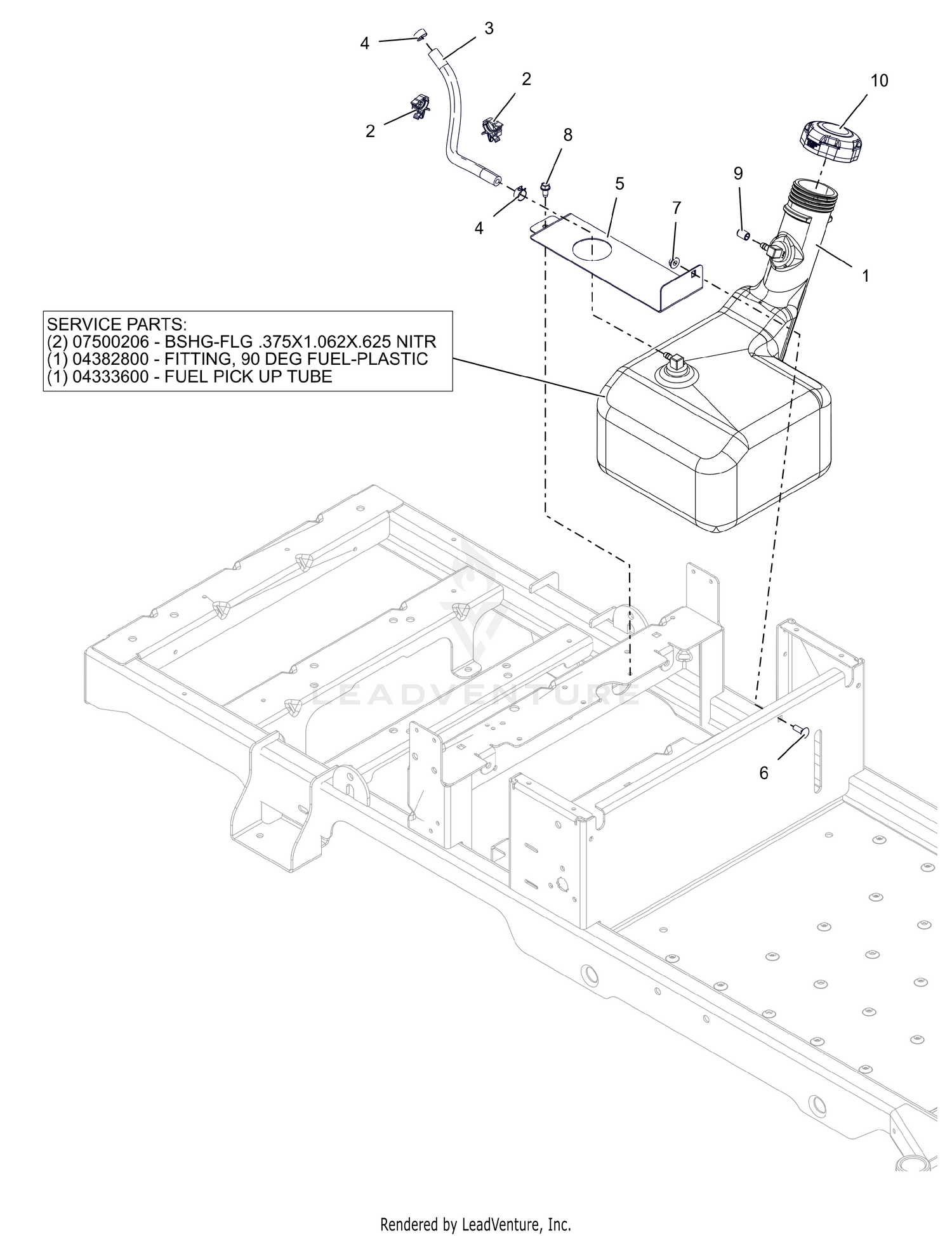

Fuel System
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 05244700 | ASM, FUEL TANK-ZOOM Price: $128.45 |
| 2 | 00390100 | WIRE CLIP Price: $3.45 |
| 3 | 03278100 | HOSE, .25 LOW-PERM BULK GAS, SOLD BY THE INCH Price: $0.95 |
| 4 | 03278800 | CLAMP, FUEL LINE Price: $0.95 |
| 5 | 03771451 | BRKT, TANK STRAP Price: $17.45 |
| 6 | 06200307 | BLT, RHSN .25-20X.750 G5 ZCC Price: $0.95 |
| 7 | 06500821 | NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 8 | 07400122 | SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 9 | 07500604 | CAP- FUEL OUTLET PORT Price: $8.45 |
