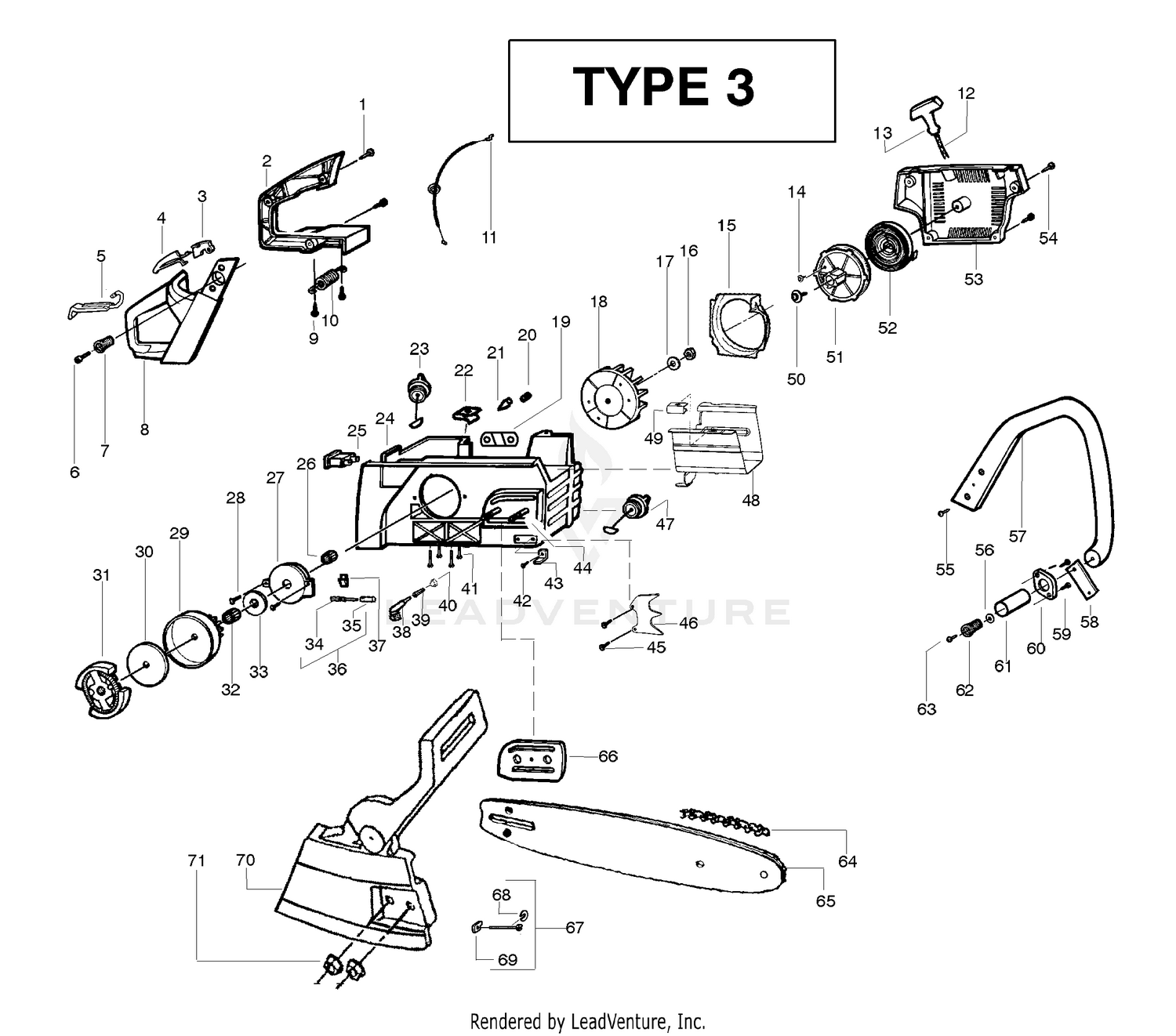

Handle, Chassis & Bar Assembly Type 3

Handle, Chassis & Bar Assembly Type 3

Parts (82)

RefPart NumberDescription
1 119-9303 CROSSMEMBER Price: $298.17
1 530015957 Screw Price: $1.99
2 119-4005 LH SIDEPLATE ASM Price: $110.40
2 530071272 Cover-Handle This part replaces 530036491. Price: $64.99
3 119-4007 RH SIDEPLATE ASM Price: $110.40
3 530036097 Trigger-Throttle Price: $1.99
4 115-7042 BOLT-SHOULDER, FLANGE Price: $2.40
4 530036098 Lockout-Throttle Price: $1.99
5 119-4041 NUT-HF Price: $0.48
5 530053443 Lever-Choke Price: $1.99
6 115-3303-03 BAR-CUTOFF Price: $11.49
6 530015937 Screw Price: $1.99
7 119-4012 SCREW-HWHTF Price: $0.61
7 530038985 Spring-Isolator Price: $1.99
8 119-4095 GRASS SHIELD ASM Price: $49.61
8 530071272 Cover-Handle This part replaces 530036130. Price: $64.99
9 106-2619 STRIP-SEAL Price: $4.84
9 530015906 Screw Price: $1.99
10 106-5344 BUSHING-FLANGE, KEYED Price: $2.37
10 530038986 Spring-Isolator Price: $1.99
11 106-5363 SHAFT-ADJUSTER Price: $41.05
12 119-4164 WASHER-WAVE Price: $2.73
12 530069232 Kit-Rope Price: $3.99
13 32120-93 RING-RETAINING Price: $2.49
13 530056402 Handle-Starter This part replaces 530037485. Price: $2.99
14 137-6130 SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42
14 530016080 Screw Price: $1.99
15 119-4155 WASHER-HARDENED Price: $4.16
15 530047667 Plate-Baffle Fan Price: $1.99
16 119-4156 SPRING-COMPRESSION Price: $0.91
16 530016071 Nut-Flywheel Price: $1.99
17 119-4039 NUT-HEX, NI Price: $0.28
17 530015127 Washer-Flywheel Price: $1.99
18 575635501 FLYWHEEL ASSY This part replaces 530039147. Price: $9.99
18 99-2097 DETENT Price: $12.71
19 119-4067 SCREW-HH Price: $0.81
20 530029868 Plug-Vent Price: $1.99
21 530026119 Valve-Check Price: $1.99
22 530015922 Nut-Speed Price: $1.99
23 530010845 Assy-Fuel Cap Price: $5.99
24 530037511 Assy-Chassis Price: $54.99
25 530069572 Kit-Switch Price: $4.99
26 530029833 Worm-Oil Pump Price: $3.99
27 545036801 PLUNGER & GEAR ASSY This part replaces 530029835. Price: $11.99
28 530015896 Screw Price: $1.99
30 530015611 Washer-Clutch Price: $1.99
31 530014949 Assy-Clutch Price: $7.99
32 530032119 Bearing-Clutch Price: $4.99
33 530015907 Washer-Thrust Price: $1.99
34 545036801 PLUNGER & GEAR ASSY This part replaces 530029838. Price: $11.99
35 545036801 PLUNGER & GEAR ASSY This part replaces 530029834. Price: $11.99
37 545037101 OIL HOSE This part replaces 530019174. Price: $6.99
38 545047801 Pickup-Oil This part replaces 530037057. Price: $2.99
39 530056533 Filter-Oil This part replaces 530037821. Price: $2.99
40 530056533 Filter-Oil This part replaces 530030189. Price: $2.99
41 530016037 Screw Price: $1.99
42 530015814 Screw Price: $1.99
43 530029850 Chain Catcher Price: $1.99
44 530015877 Bar Bolt Price: $2.99
45 530015805 Screw Price: $1.99
47 530057236 OIL TANK CAP This part replaces 530010846. Price: $5.99
48 530055406 Shield-Heat Price: $2.99
49 530055322 Clip-"U" Price: $1.99
50 530015920 Screw Price: $1.99
51 530069313 Kit-Starter Pulley Price: $4.99
52 545008005 RETURN SPRING This part replaces 530015891. Price: $3.99
54 530015892 Screw Price: $1.99
55 530015814 Screw Price: $1.99
56 530015123 Washer Price: $1.99
57 530053955 ASSY HANDLE BAR This part replaces 530038327. Price: $11.99
58 530036113 Front Strap-AV Price: $2.99
59 530015775 Screw-Plate Price: $1.99
60 530036101 Plate-Isolator Price: $1.99
61 530036142 Spring Sleeve-AV Price: Call Us
62 530038985 Spring-Isolator Price: $1.99
63 530015984 Screw Price: $1.99
64 952051310 Chain-20" Price: $24.99
65 952044326 Bar-20" Price: $37.95
66 530047855 Bar Plate Price: $3.99
68 530038593 Retainer-Bar Adjust Price: $0.99
69 530015826 Pin-Bar Adjust Price: $1.99
70 530054803 Assy-ChainBrake Price: $37.99
