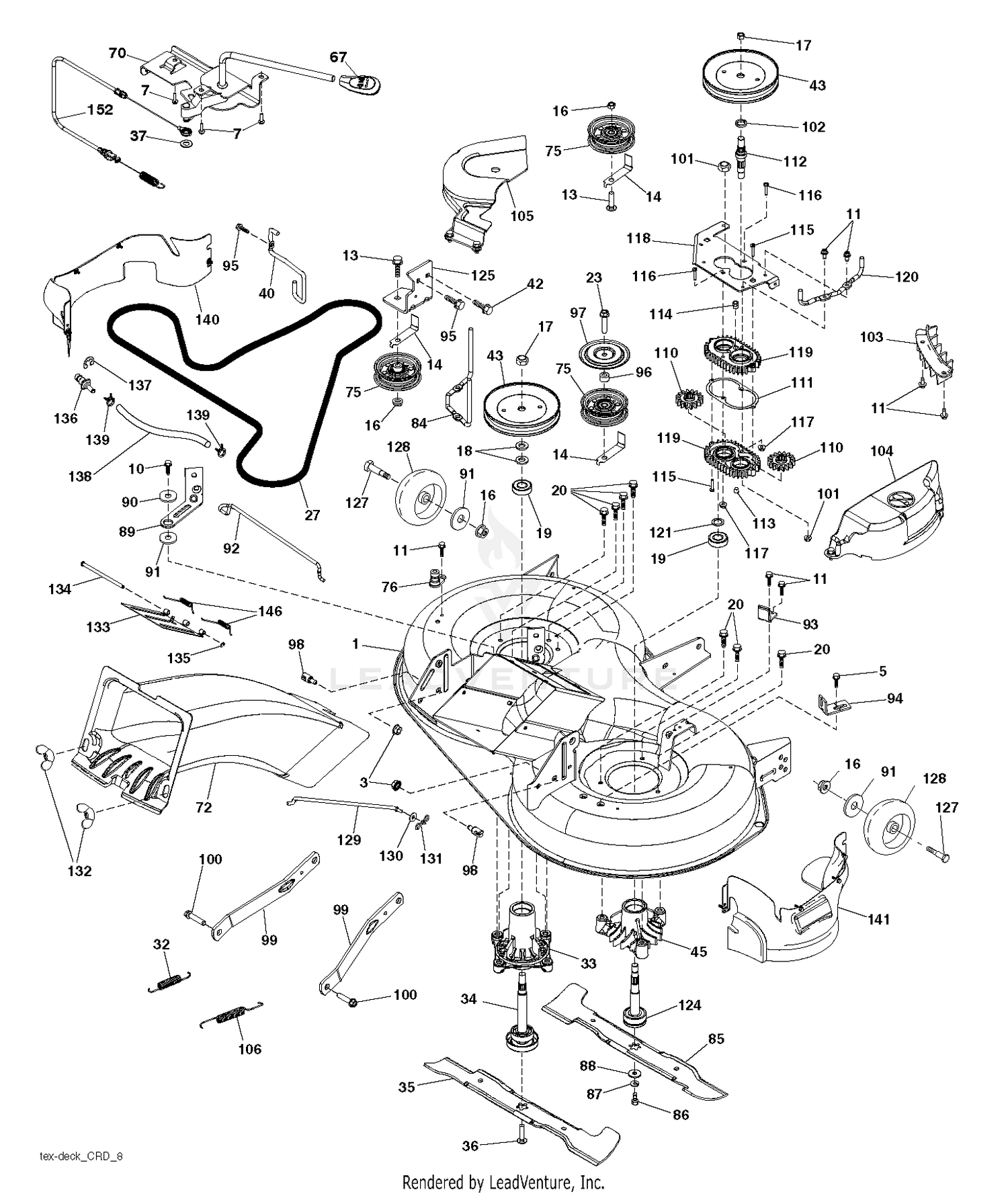

MOWER DECK / CUTTING DECK
Parts (118)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33023-00 | NUT-LOCK Price: $0.25 |
| 1 | 532438052 | Price: Call Us |
| 2 | 94-8197 | TUBE-PIVOT Price: $19.37 |
| 3 | 33113-035 | SCREW-HH Price: $0.54 |
| 3 | 873900500 | NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 4 | 140-6248 | DAMPER This part replaces 76-8870. Price: $159.54 |
| 5 | 817000510 | BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 5 | 94-1312 | SPACER-PIVOT Price: $6.97 |
| 6 | 105-5477-03 | LEVER-PUMP Price: $41.84 |
| 7 | 532416358 | SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 7 | 88-7200 | WASHER-FLAT Price: $2.51 |
| 8 | 3210-6 | SCREW-HH Price: $1.76 |
| 9 | 105-5475 | CABLE SUPPORT ASM Price: $88.47 |
| 10 | 817000616 | SCREW 3/8-16X1 Price: $3.99 |
| 11 | 105-4302 | NEUTRAL ARM ASM Price: $102.89 |
| 11 | 532137729 | SCREW.1/4-20X5/8 Price: $2.49 |
| 12 | 3-6498 | WASHER-THRUST Price: $4.58 |
| 13 | 872110612 | BOLT.3/8-16X1.50 Price: $3.99 |
| 13 | 93-2111 | STUD-TRACTION Price: $20.29 |
| 14 | 532173968 | KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 14 | 75-5470 | SPACER-BEARING Price: $3.06 |
| 15 | 251-259 | BEARING-BALL Price: $13.67 |
| 16 | 532409148 | NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 16 | 94-1369 | SPRING-EXTENSION Price: $12.72 |
| 17 | 323-4 | SCREW-HH Price: $1.02 |
| 17 | 532400234 | NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 18 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 18 | 532187690 | WASHER.SPACER.MANDREL Price: $1.99 |
| 19 | 33114-025 | SCREW-HH Price: $0.70 |
| 19 | 532110485 | BEARING Price: $7.99 |
| 20 | 33114-030 | SCREW-HH Price: $0.50 |
| 20 | 532173984 | SCREW, WASHER HEAD Price: $2.99 |
| 21 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 22 | 2411-41 | ROD END-BALL JOINT Price: $40.28 |
| 23 | 3296-56 | NUT-LOCK, NI Price: $2.09 |
| 23 | 817490628 | SCREW LT Price: $3.99 |
| 24 | 321-7 | SCREW-HH Price: $4.19 |
| 25 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 26 | 99-4251 | HOSE-DAMPENER Price: $11.85 |
| 27 | 532439726 | Price: $37.81 |
| 27 | 93-9051 | DECAL-BOLT, ECCENTRIC Price: $16.37 |
| 28 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 29 | 94-3486 | PLATE Price: $107.60 |
| 30 | 63-9750 | MOUNT Price: $18.92 |
| 31 | 33115-035 | SCREW-HH Price: $1.15 |
| 32 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 32 | 532401872 | SPRING RETURN Price: $2.99 |
| 33 | 2844 | WASHER Price: $2.69 |
| 33 | 532187281 | HOUSING MANDREL Price: $20.99 |
| 34 | 532192870 | MANDREL ASM This part replaces 532192872. Price: $30.99 |
| 34 | 94-8196 | WASHER-NYLON Price: $4.44 |
| 35 | 105-4307-03 | BRACKET-SPRING Price: $38.04 |
| 35 | 532427984 | BLADE.3N1.LH.CRD.97 Price: $41.99 |
| 36 | 532193003 | BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 37 | 819131316 | WASHER Price: $2.99 |
| 40 | 532197258 | KEEPER BELT ENGINE LH Price: $9.99 |
| 42 | 532428867 | BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 43 | 532195945 | PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $7.99 |
| 45 | 532137152 | HOUSING.MANDREL Price: $23.99 |
| 67 | 532403012 | HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 70 | 532199972 | CLUTCH.ASM.MANUAL.YT.PREDATORQ Price: $59.99 |
| 72 | 532446810 | Price: $32.99 |
| 75 | 532173438 | PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 76 | 532439640 | Price: $5.99 |
| 84 | 532432520 | KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 85 | 532427985 | BLADE.3N1.RH.CRD.97 Price: $41.99 |
| 86 | 532181713 | Bolt 3/8-24 x 1.25 Gr. 8 Ptch Price: $1.99 |
| 87 | 539990118 | WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 88 | 532140296 | WASHER.BLADE Price: $2.99 |
| 89 | 532438124 | Price: $14.99 |
| 90 | 532199092 | SPACER.RETAINER Price: $3.99 |
| 91 | 819132012 | WASHER Price: $2.99 |
| 92 | 532436993 | Price: $3.99 |
| 93 | 532438125 | Price: $13.99 |
| 94 | 532197250 | BRKT.CLUTCH.CABLE Price: $2.99 |
| 95 | 817000612 | SCREW, 3/8-16X3/4 Price: $2.99 |
| 96 | 532400271 | Spacer Noram Price: $1.99 |
| 97 | 532182061 | Shield Idler Mower Price: $1.99 |
| 98 | 532195161 | STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 99 | 532195186 | ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 100 | 532196539 | BOLT.SHOULDER Price: $4.99 |
| 101 | 873680900 | Price: $2.99 |
| 102 | 532402511 | SPACER BEARING Price: $2.99 |
| 103 | 532436992 | Price: $2.99 |
| 104 | 532441479 | Price: Call Us |
| 105 | 532441478 | Price: Call Us |
| 106 | 532193216 | SPRING.BRAKE.RETURN.38" Price: $3.99 |
| 110 | 532415356 | Price: $7.99 |
| 111 | 532436979 | Price: $1.99 |
| 112 | 532443852 | Price: $4.99 |
| 113 | 532438533 | Price: $1.99 |
| 114 | 532438534 | Price: $3.99 |
| 115 | 818031016 | Price: $2.99 |
| 116 | 872110414 | Price: $2.99 |
| 117 | 873680400 | Nut Crownlock 1/4-20 unc This part replaces 873900400. Price: $2.69 |
| 118 | 532436989 | Price: $3.99 |
| 119 | 532438166 | Price: $24.99 |
| 120 | 532436991 | Price: $2.99 |
| 121 | 532436985 | Price: $1.99 |
| 124 | 532436986 | Price: $24.99 |
| 125 | 532440420 | Price: $12.99 |
| 127 | 532193406 | BOLT.SHOULDER.3/8-16X3-5/8 Price: $1.99 |
| 128 | 532174873 | WHEEL. GUAGE RALLY Price: $7.99 |
| 129 | 532404851 | ROD.ANTI.SWAY.48/54"K4 Price: $17.99 |
| 130 | 734117201 | WASHER This part replaces 819131312. Price: $1.99 |
| 131 | 532194208 | PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 132 | 532178899 | KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 133 | 532435538 | Price: $3.99 |
| 134 | 532435861 | Price: $2.99 |
| 135 | 532437988 | E-RING.5/16" Price: $2.99 |
| 136 | 532439639 | Price: $1.99 |
| 137 | 812000029 | RING CLIP Price: $1.99 |
| 138 | 532440743 | Price: $1.99 |
| 139 | 532440742 | Price: $1.99 |
| 140 | 532448632 | Price: $30.99 |
| 141 | 532448529 | Price: $33.99 |
| 146 | 532445896 | Price: $1.99 |
| 152 | 532440488 | Price: $9.99 |
