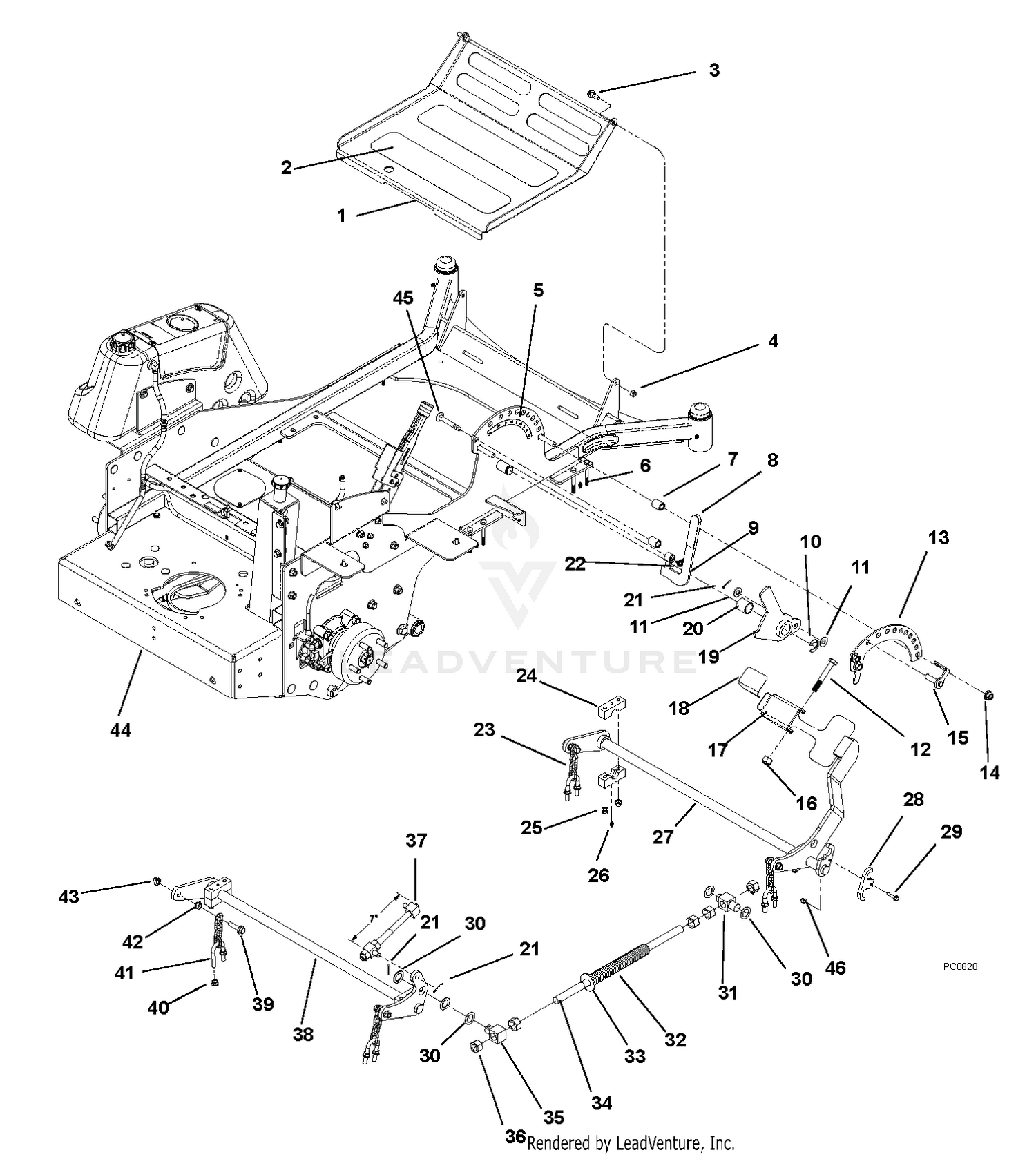

| Ref | Part Number | Description |
|---|
| 1 |
03866763 |
WLDT. PLATFORM FOOT GD Price: Call Us |
| 2 |
00180658 |
TAPE, NON-SLIP - 4.00 X 18.00 Price: $23.95 |
| 3 |
07070119 |
BLT-SHLDR .5X1.06X.38-16 SLD 5 This part replaces 00135139. Price: $3.45 |
| 4 |
00964022 |
LOCKNUT, 3/8-16 CROWN Y Price: Call Us |
| 5 |
00200266 |
DECAL, HOC 1 - 4 1/2 Price: Call Us |
| 6 |
19M7803 |
SCREW,HEX,FL,JDS121,M8X1.25X70 Price: Call Us |
| 7 |
00200841 |
SPACER, HOC Price: Call Us |
| 8 |
D18079 |
GRIP, PVC .250 X 1.00 X 3.63 Price: $3.45 |
| 9 |
03866551 |
WLDT, HOC RELEASE PAINTED Price: Call Us |
| 10 |
R58806 |
RING,RETAINING Price: Call Us |
| 11 |
24H1111 |
WASHER, WROUGHT .531X1.062X.09 Price: Call Us |
| 12 |
05901937 |
BLT, HEX .50-13X3.50 G5 ZCC This part replaces 00960122. Price: $4.45 |
| 13 |
03867251 |
PLATE, OUTER HOC PAINTED Price: Call Us |
| 14 |
H137329 |
LOCKNUT, M12X1.75 DFLCTFLG 10Y Price: $3.10 |
| 15 |
00200355 |
WLDT, HOC PIN Price: Call Us |
| 16 |
06500830 |
NUT,NYL .50-13 G5 ZCC This part replaces 00964015. Price: $2.45 |
| 17 |
03866351 |
PAD, FOOT LIFT BLK Price: Call Us |
| 18 |
03873751 |
WLDT, HOC LIFT Price: Call Us |
| 19 |
00385300 |
GRIP, FOOT PEDAL (MECH.LIFT) Price: $3.10 |
| 20 |
W10728 |
BEARING Price: Call Us |
| 21 |
11M7015 |
PIN,COTTER,DIN94,3.2X25-ST-ZN Price: Call Us |
| 22 |
TCU17371 |
SPRING, TORSION Price: Call Us |
| 23 |
00150110 |
CHAIN, 4 LINKS 1/4" Y Price: Call Us |
| 24 |
TCU18697 |
BEARING, DECK LIFT Price: Call Us |
| 25 |
14M7396 |
LOCKNUT, M8X1.25 NYLOC FLG 10Y Price: Call Us |
| 26 |
00959995 |
FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
| 27 |
03866151 |
WLDT, LIFT ARM PAINTED Price: Call Us |
| 28 |
GDU10242 |
PLATE, LIFT LOCK Price: Call Us |
| 29 |
19M7796 |
SCREW,HEX,FL,JDS123,M6X1X30-10 Price: Call Us |
| 30 |
24H1413 |
WASHER,JDS24-.891X1.375X.048-S Price: $3.45 |
| 31 |
GDU10238 |
SWIVEL Price: Call Us |
| 32 |
D28200 |
SPRING, DECK LIFT Price: Call Us |
| 33 |
24H1236 |
WASHER, METALLIC, ROUND HOLE Price: Call Us |
| 34 |
TCU16862 |
ROD Price: Call Us |
| 35 |
TCU17245 |
SWIVEL, DECK LIFT ASSIST ROD Price: Call Us |
| 37 |
GDA10075 |
LINK, LIFT ROD ASSEMBLY Price: Call Us |
| 38 |
GDA10092 |
WLDT, LIFT ARM Price: Call Us |
| 39 |
19M8162 |
SCREW,HEX,FL,JDS121,M10X1.5X40 Price: Call Us |
| 40 |
N10215 |
LOCKNUT, 3/8-16 WHIZ Y Price: Call Us |
| 41 |
GDU10048 |
U-BOLT Price: Call Us |
| 42 |
E63526 |
LOCKNUT, M10X1.50 WHIZ GR10 Y Price: $2.45 |
| 43 |
14M7518 |
LOCKNUT,FL,ISO7044,M10X1.5-10- Price: $3.45 |
| 44 |
03865551 |
WLDT, FRAME BLACK Price: Call Us |
| 45 |
03M7204 |
BOLT,RH,SQNECK,JDS136,M12X1.75 Price: Call Us |
