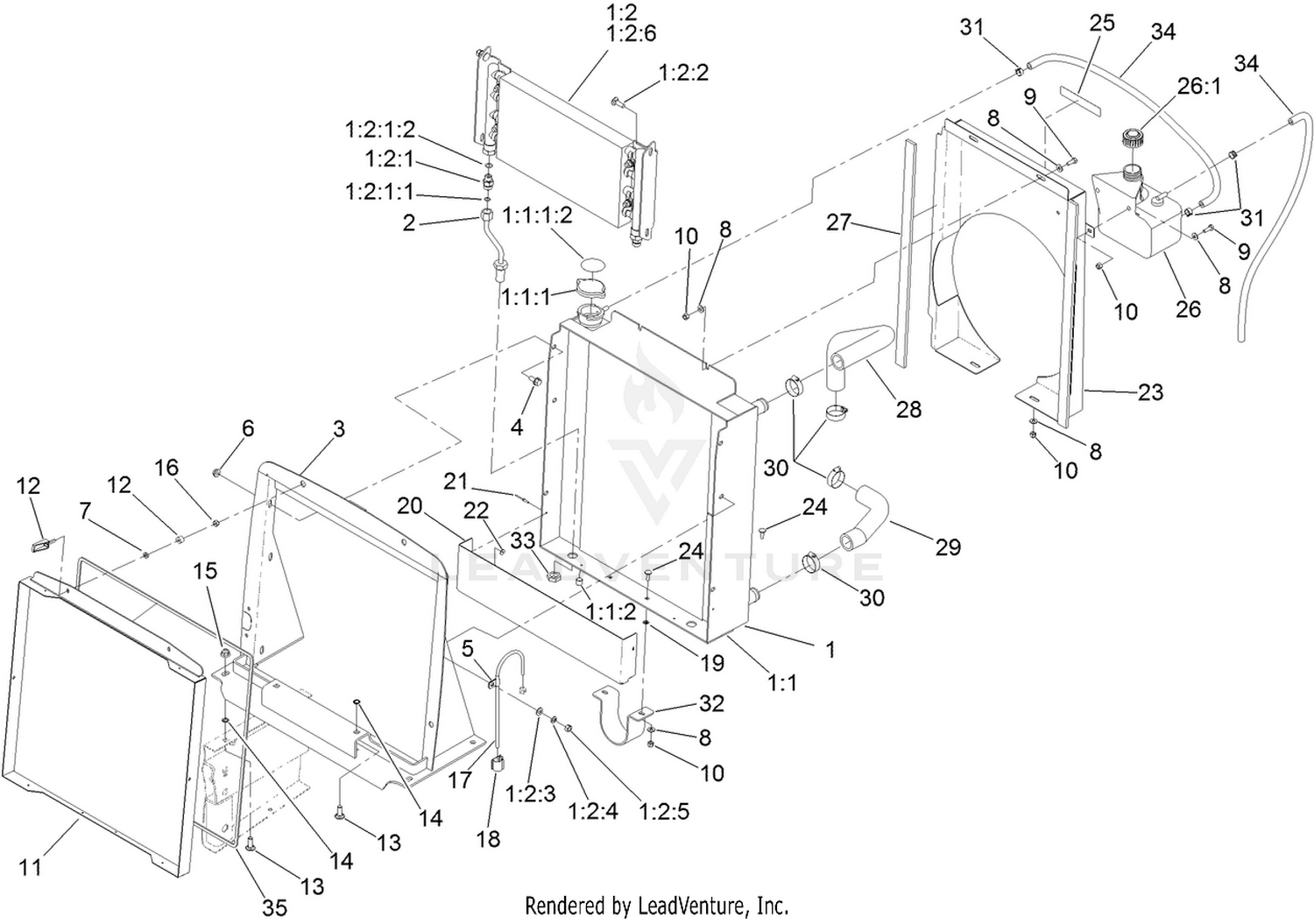

| Ref | Part Number | Description |
|---|
| 1 |
133-6363 |
COOLER ASSEMBLY Price: $1,784.79 |
| 2 |
132-7297 |
TUBE-HYD, JUMP Price: $45.94 |
| 3 |
133-6384-03 |
FRAME-RADIATOR Price: $326.66 |
| 4 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 5 |
2412-103 |
CLAMP Price: $2.51 |
| 6 |
32128-20 |
NUT-HF Price: $0.99 |
| 7 |
55-9620 |
SPACER-PLATE, PIVOT Price: $0.90 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
321-4 |
SCREW-HH Price: $0.99 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
132-7233-03 |
SCREEN Price: $246.32 |
| 12 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 13 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 14 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 16 |
1-804254 |
NUT-LOCK, HH Price: $1.29 |
| 17 |
66-3180 |
TUBE-VENT Price: $18.60 |
| 18 |
105-7188 |
CLAMP-ADHESIVE Price: $2.04 |
| 19 |
32115-15 |
PUSHNUT-RETAINER, BOLT This part replaces 106-8737. Price: $0.99 |
| 20 |
132-7224-03 |
SHEILD-RADIATOR, BOTTOM Price: $34.90 |
| 21 |
3269-17 |
RIVET-POP Price: $0.25 |
| 22 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 23 |
132-7230-03 |
SHROUD-FAN Price: $193.88 |
| 24 |
1-807512 |
BOLT-CARR Price: $1.29 |
| 25 |
93-7272 |
DECAL-WARNING Price: $6.37 |
| 26 |
120-5572 |
COOLANT RESERVOIR ASM Price: $164.90 |
| 27 |
108-9683 |
STRIP-FOAM Price: $10.49 |
| 28 |
104-3443 |
HOSE-RADIATOR, UPPER Price: $125.95 |
| 29 |
104-3442 |
HOSE-RADIATOR, LOWER Price: $79.76 |
| 30 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 31 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 32 |
132-7225-03 |
LOOP-DRIVESHAFT Price: $21.26 |
| 33 |
340-70 |
NUT-LOCK Price: $2.10 |
| 34 |
109-0308 |
HOSE-FUEL Price: $10.99 |
