| Ref | Part Number | Description |
|---|
| 1 |
2410-71 |
PLUG-PLASTIC Price: $3.77 |
| 2 |
32151-100 |
RING-RETAINING Price: $4.41 |
| 3 |
69-8910 |
WASHER Price: $1.70 |
| 4 |
82-7850 |
SPRING-COMPRESSION Price: $12.29 |
| 5 |
354-104 |
RING-BACK UP Price: $2.24 |
| 6 |
237-175 |
O-RING Price: $4.39 |
| 7 |
82-7840 |
PISTON-BRAKE Price: $220.21 |
| 8 |
21-2070-03 |
END-YOKE This part replaces 21-2070. Price: $40.78 |
| 9 |
237-174 |
O-RING Price: $4.01 |
| 10 |
354-105 |
RING-BACK UP Price: $3.12 |
| 11 |
82-7830 |
SCREW-BLEEDER, BRAKE Price: $21.68 |
| 12 |
105-0606 |
HOUSING-RH This part replaces 82-7790. Price: $555.70 |
| 13 |
82-7820 |
SEAT-TUBE, BRAKE Price: $6.91 |
| 14 |
93-7417 |
GASKET This part replaces 71-3920. Price: $5.86 |
| 15 |
71-3850-03 |
COVER-ACTUATOR, BRAKE This part replaces 71-3850. Price: $13.99 |
| 16 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 17 |
321-2 |
SCREW-HH Price: $2.79 |
| 18 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 20 |
32128-25 |
NUT-HF Price: $3.19 |
| 21 |
71-3830-03 |
BELLCRANK-BRAKE This part replaces 71-3830. Price: $82.63 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 23 |
71-3880 |
CLEVIS Price: $61.78 |
| 24 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 25 |
71-3900 |
GASKET Price: $17.82 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
71-3860 |
CLEVIS Price: $16.88 |
| 29 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 30 |
69-0030 |
SPRING-COMPRESSION Price: $21.80 |
| 31 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 32 |
12-8900 |
BOLT-SHOULDER, HH Price: $22.27 |
| 33 |
93-7417 |
GASKET This part replaces 71-3920. Price: $5.86 |
| 34 |
71-3910 |
COLLAR Price: $35.77 |
| 35 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 36 |
93-7418 |
CAP-ACTUATOR, BRAKE This part replaces 71-4110. Price: $28.84 |

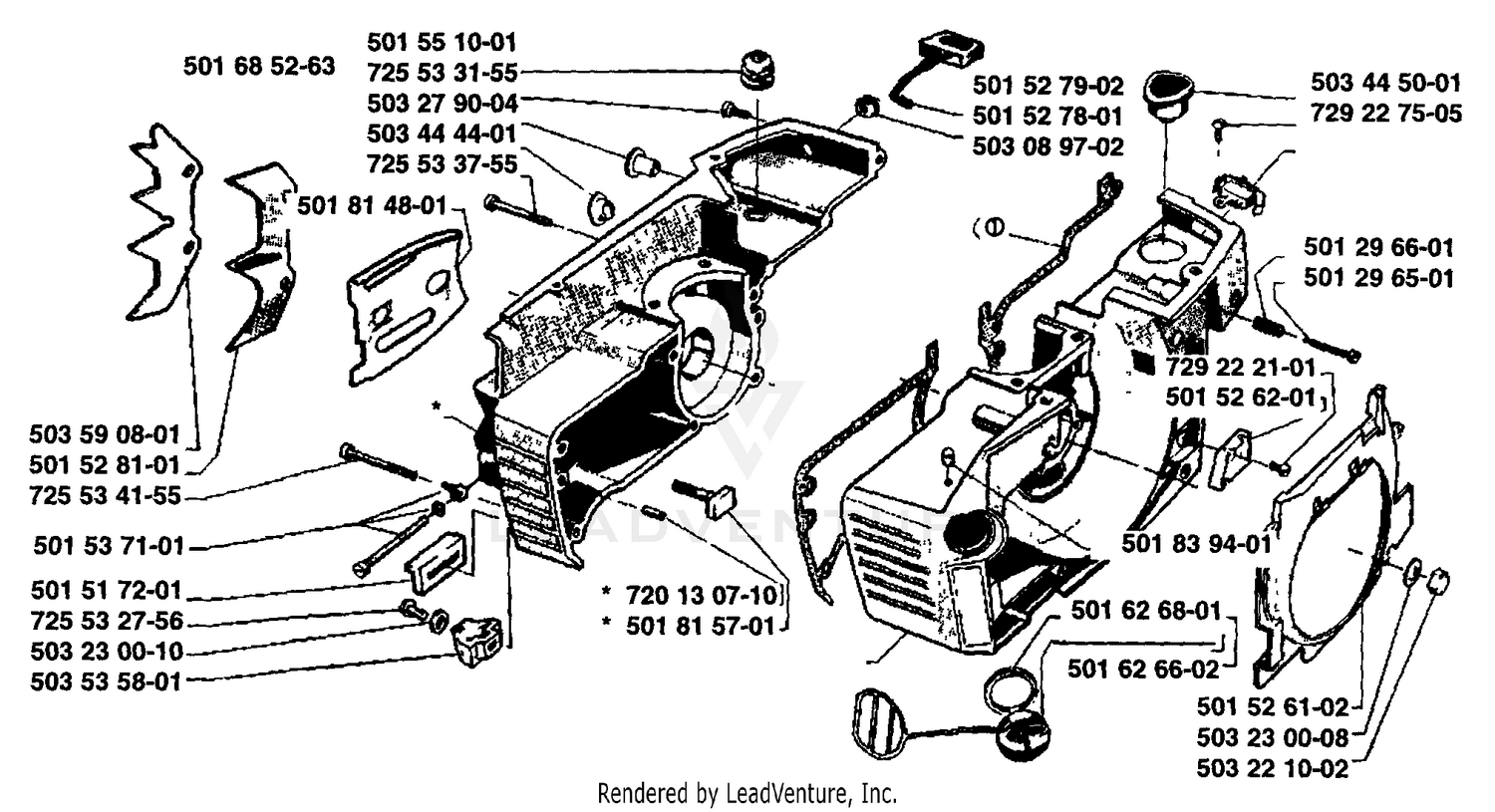

| 501296501 |
501296501 |
SCREW Price: $2.99 |
| 501296601 |
501296601 |
SPRING Price: $3.99 |
| 501517201 |
501517201 |
CHAIN GUIDE Price: $4.99 |
| 501526102 |
501526102 |
AIR CONDUCTOR Price: $8.32 |
| 501526201 |
501526201 |
Price: $1.81 |
| 501527801 |
501527801 |
BUSHING Price: $3.99 |
| 501527902 |
501527902 |
CHOKE CONTROL Price: $7.99 |
| 501528101 |
501528101 |
FELLING DOG Price: $11.99 |
| 501537101 |
501537101 |
CHAIN TENSIONER Price: $14.99 |
| 501551001 |
501551001 |
SEAL Price: $7.99 |
| 501626602 |
501626602 |
TANK CAP Price: $11.99 |
| 501626801 |
501626801 |
OILCAP GASKET Price: $3.99 |
| 501685263 |
501685263 |
Price: $229.68 |
| 501814801 |
501814801 |
PROTECTION PLATE Price: $4.99 |
| 501815701 |
501815701 |
BOLT Price: $4.99 |
| 501839401 |
501839401 |
OIL TANK VENT Price: $4.99 |
| 503089702 |
503717901 |
SWITCH ON/OFF This part replaces 503089702. Price: $12.99 |
| 503221002 |
503221002 |
NUT M10X1 Price: $5.99 |
| 503230008 |
503230008 |
WASHER 10.5X16 Price: $2.99 |
| 503230010 |
503230010 |
WASHER 5.3X10 Price: $0.99 |
| 503279004 |
503279004 |
PLUG Price: $3.99 |
| 503444401 |
503723101 |
BUSHING This part replaces 503444401. Price: $4.99 |
| 503445001 |
503445001 |
BELLOWS Price: $5.99 |
| 503535801 |
503535801 |
CHAIN CATCHER Price: $4.99 |
| 503590801 |
503590801 |
FELLING DOG Price: $14.99 |
| 720130710 |
720130752 |
Pins This part replaces 720130710. Price: $4.99 |
| 725532756 |
725532755 |
SCREW MC6S 5X12 This part replaces 725532756. Price: $2.99 |
| 725533155 |
525824902 |
SCREW ITXSCM This part replaces 725533155. Price: $2.99 |
| 725533755 |
725533755 |
SCREW MC6S 5X35 Price: $3.99 |
| 725534155 |
725534155 |
SCREW MC6S 5X50 Price: $4.99 |
| 729227505 |
503212806 |
SCREW This part replaces 729227505. Price: $3.99 |
