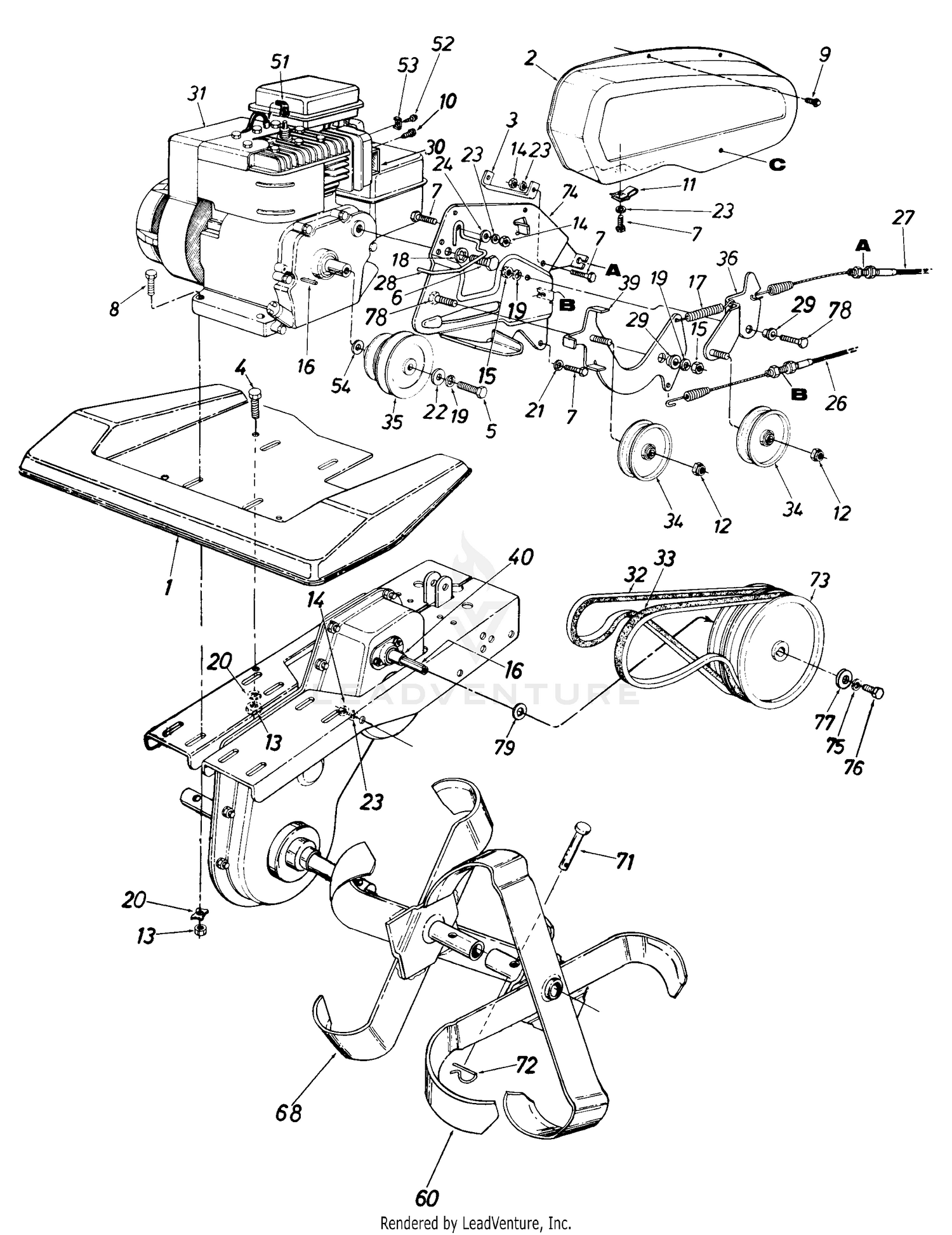

| Ref | Part Number | Description |
|---|
| 1 |
04598 |
TINE SHIELD Not Available Price: |
| 2 |
06796 |
BELT GUARD Not Available Price: |
| 3 |
06801 |
Support Brkt. Price: Call Us |
| 4 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 5 |
710-0191 |
Hex Bolt 3/8-24 x 1.25n Lg. Price: $4.02 |
| 6 |
710-0237 |
Hex Bolt 5/16-24 x .62" Lg. Price: $3.93 |
| 7 |
710-3015 |
Hex Bolt 1/4-20 x .75" Lg. This part replaces 710-0252. Price: $3.65 |
| 8 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 9 |
710-0599 |
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 10 |
710-0783 |
HEX SCREW WASH HD 10-32X.38 Not Available Price: |
| 11 |
712-0185 |
SPEED NUT 1/4-20 Not Available Price: |
| 12 |
712-0262 |
Hex L-Nut 3/8-24 Thd. Price: $3.90 |
| 13 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 14 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 15 |
712-0375 |
Hex L-Nut 3/8-16 Thd. Price: $4.02 |
| 16 |
714-0133 |
Sq. Key 3/16 x 1.5" Lg. Price: $4.20 |
| 17 |
932-0209 |
Spring This part replaces 732-0209. Price: $7.01 |
| 18 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 19 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 20 |
736-0170 |
SPECIAL WASHER Not Available Price: |
| 21 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 22 |
736-0258 |
Fl-Wash. 818" I.D. x 1" O.D. x 1.27n Price: $3.93 |
| 23 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 24 |
736-0463 |
Fl-Wash. .25 I.D. x .62 O.D. Price: $3.91 |
| 28 |
747-0181 |
Belt Guard Rod Price: Call Us |
| 29 |
738-0372B |
Shoulder Spacer, .380 ID This part replaces 738-0372. Price: $8.78 |
| 30 |
BS-796956 |
MUFFLER DEFLECTOR Not Available This part replaces 751-0233. Price: |
| 31 |
N/A |
Engine |
| 32 |
954-0201 |
V-BELT 1/2 x 41 This part replaces 754-0201. Price: $31.51 |
| 33 |
954-0154 |
V-BELT 1/2 x 37 SPECIAL This part replaces 754-0154. Price: $33.38 |
| 34 |
756-0225 |
FLAT IDLER PULLEY W/FLANGES Not Available Price: |
| 35 |
756-0261 |
Engine Pulley Price: Call Us |
| 36 |
784-0267 |
BRACKET ASSY-IDLER Not Available Price: |
| 39 |
784-0251 |
IDLER BRACKET ASSEMBLY Not Available Price: |
| 40 |
750-0229 |
SPACER .635 ID X.88 OD x 1.030 Not Available Price: |
| 52 |
710-0899A |
Hex Sems Scr. #10-32 x .62" Lg. This part replaces 710-0899. Price: $5.89 |
| 53 |
751B221535 |
Casing Clamp This part replaces 751-0360A. Price: $8.93 |
| 54 |
736-0315 |
Fl-Wash. .75" I.D. x 1.5" O.D. x .12" Price: $5.94 |
| 60 |
784-0093 |
TINE ASSEMBLY-OUTER (LH)POWDER Not Available Price: |
| 68 |
784-0091 |
TINE ASSEMBLY-INNER (LH) Not Available Price: |
| 71 |
711-0679A |
Clevis Pin .375" Dia. x 1.88" This part replaces 1545-029. Price: $12.40 |
| 72 |
714-0149B |
Intern. Cotter Pin Price: $3.95 |
| 73 |
756-0262 |
Transmission Pulley 6" Dia. Price: Call Us |
| 74 |
784-0269 |
PLATE-CLUTCH MTG Not Available Price: |
| 75 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 76 |
710-0643 |
Patch Bolt 5/16-18 x 1" Lg. Price: $5.99 |
| 77 |
736-0231 |
Fl-Wash. 5/16" I.D. Price: $4.02 |
| 78 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
