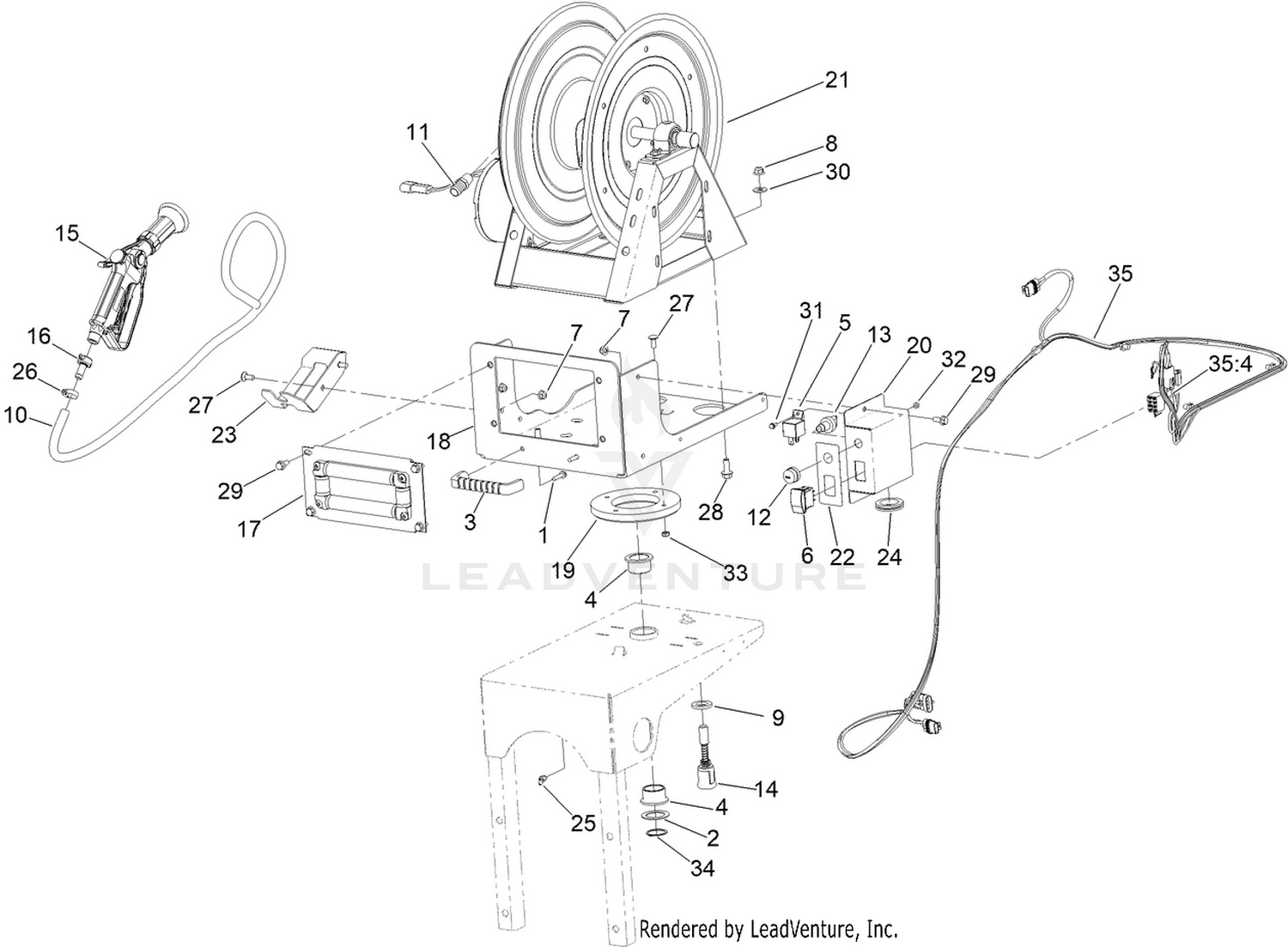

| Ref | Part Number | Description |
|---|
| 1 |
137-3101 |
SCREW-PLASTIC, HWH Price: $0.59 |
| 2 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 3 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 4 |
93-4510 |
BUSHING-CASTER Price: $6.97 |
| 5 |
99-7435 |
RELAY Price: $32.43 |
| 6 |
100-1535 |
SWITCH Price: $84.91 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
105-4551 |
WASHER-FLAT Price: $3.35 |
| 10 |
107-8756 |
HOSE-HOSE REEL Price: $619.03 |
| 11 |
110-5065 |
HOSEBARB Price: $18.05 |
| 12 |
112-3313 |
NUT-WEATHERPROOF Price: $5.23 |
| 13 |
112-3324 |
SWITCH-HORN Price: $39.90 |
| 14 |
116-0104 |
PIN-SPRING Price: $45.99 |
| 15 |
161-4158 |
SPRAY WAND, DIA 2.2 MM NOZZLE Price: $174.64 |
| 16 |
121-4982 |
HOSEBARB-SPRAY GUN Price: $13.59 |
| 17 |
121-4983 |
BRACKET-ROLLER Price: $595.61 |
| 18 |
161-4157-03 |
PIVOT PLATE ASM [BLACK] Price: $270.13 |
| 19 |
125-8051 |
SLIDE-PLASTIC Price: $131.61 |
| 20 |
125-8086-03 |
BOX-SWITCH, HOSE REEL Price: $58.15 |
| 21 |
127-3910 |
HOSE REEL ASM Price: $4,356.54 |
| 22 |
127-3953 |
DECAL-HOSE REEL Price: $37.97 |
| 23 |
161-4151-03 |
BRACKET-HAND SPRAY GUN Price: $18.65 |
| 24 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
| 25 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 26 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 27 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 28 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 29 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 30 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 31 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 32 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 33 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 34 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 35 |
122-0362 |
HARNESS-WIRE, HOSE REEL Price: $230.71 |
