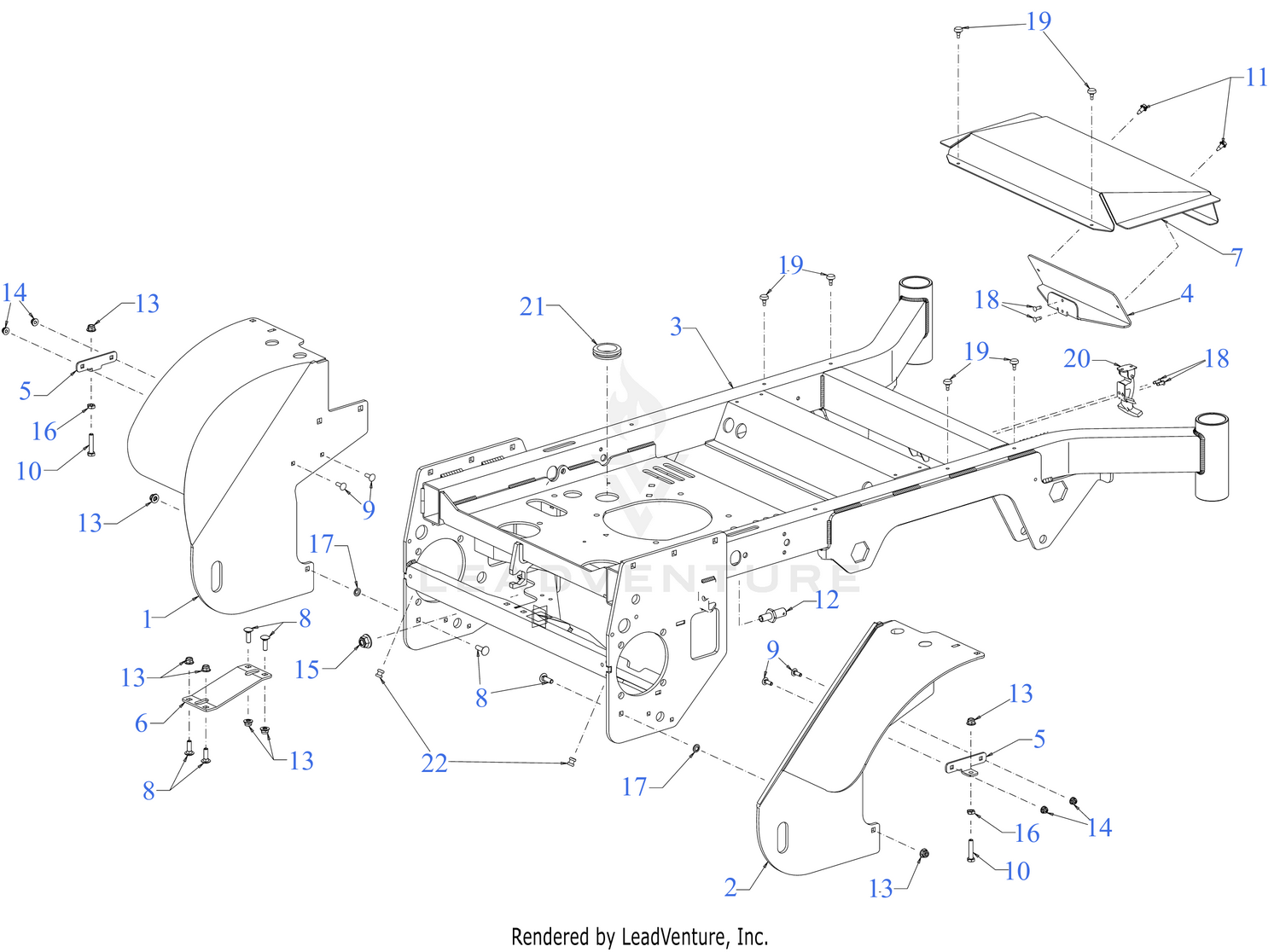

Frame
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 680-02634 | FENDER (LH) Price: $227.32 |
| 2 | 680-02635 | FENDER (RH) Price: $227.32 |
| 3 | 680-02694 | FRAME Price: $2,148.85 |
| 4 | 703E15641 | BACK PLATE Price: $21.09 |
| 5 | 703E20184 | BRAKE SPRING BRACKET (RH) Price: $8.03 |
| 6 | 703E21504 | SUPPORT BRACKET Price: $12.62 |
| 7 | 703-26624 | FRONT COVER Price: $81.07 |
| 8 | 710-0276 | CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 9 | 710-0703 | SCREW 1/4-20 x .75 GR5 Price: $3.66 |
| 10 | 710-0805A | SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 11 | 710-1652 | SCREW 1/4-20X.625 Price: $3.86 |
| 12 | 711-05604 | PIN Price: $9.67 |
| 13 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 14 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 15 | 712-04150 | NUT Price: $3.74 |
| 16 | 712-3007 | HEX NUT Price: $6.06 |
| 17 | 726-0201 | PUSH NUT Price: $6.01 |
| 18 | 928-0123 | POP RIVET Price: $4.36 |
| 19 | 735-0199A | RUBBER BUMPER Price: $6.89 |
| 20 | 935-04038 | HOOD LATCH ASSEMBLY Price: $13.40 |
| 21 | 735-05223 | RUBBER GROMMET (1.50X2.13X.563) Price: $4.25 |
