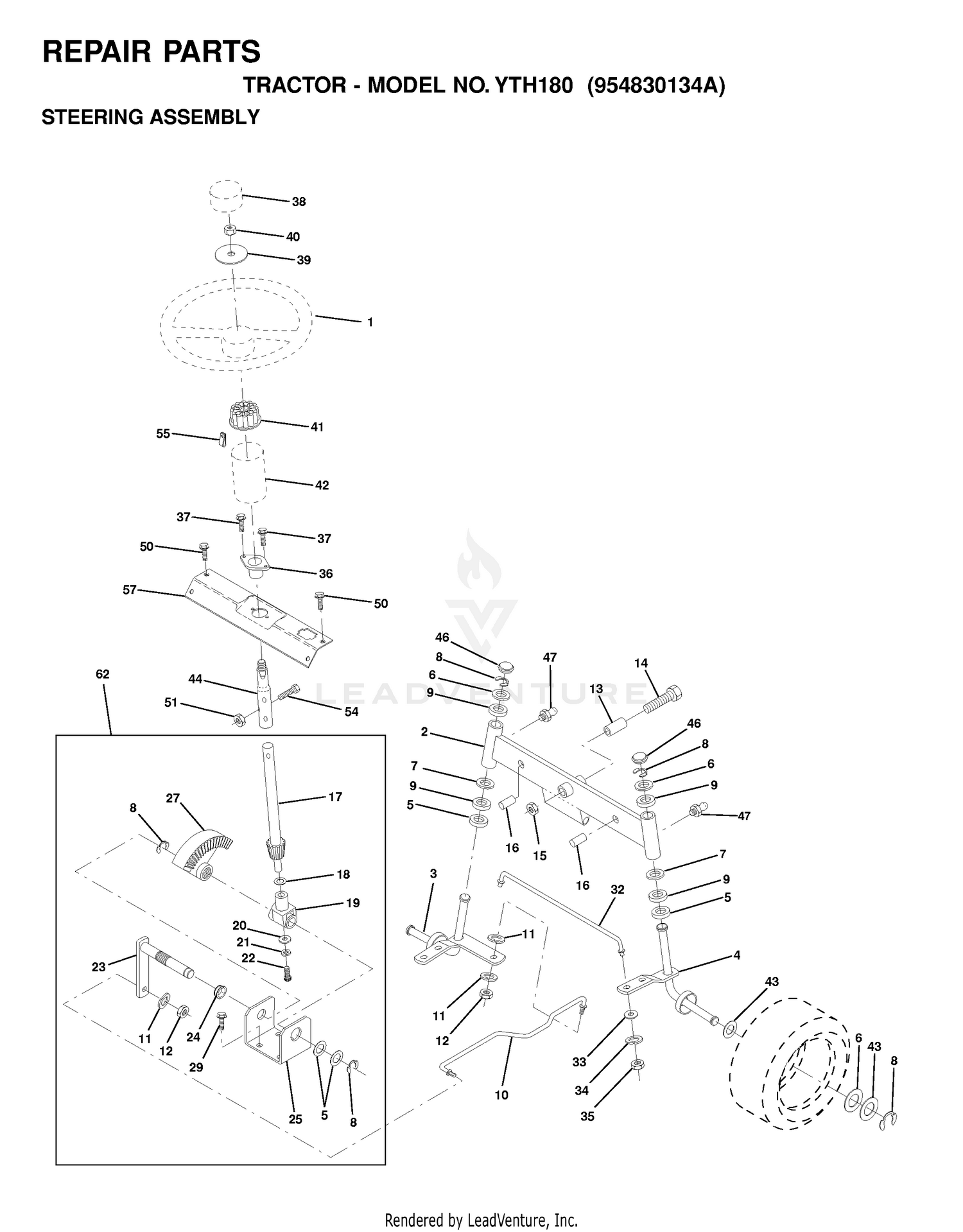

| Ref | Part Number | Description |
|---|
| 1 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 1 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 2 |
3-8448 |
WASHER-THRUST Price: $2.58 |
| 2 |
532142033 |
AXLE ASSY Price: $59.99 |
| 3 |
532135227 |
SPINDLE LH Price: $15.39 |
| 4 |
32153-5 |
NUT-HEX Price: $1.59 |
| 4 |
532135228 |
SPINDLE RH Price: $12.97 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 5 |
6-1030 |
HOUSING Price: $158.52 |
| 6 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
325-17 |
SCREW-HH Price: $2.90 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
5-1091 |
SPACER Price: $4.98 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 10 |
3-9280-01 |
DRAWBAR This part replaces 3-9280. Price: $321.93 |
| 10 |
532130468 |
LINK.DRAG.SOL.BALL JT.20.064 Price: $64.99 |
| 11 |
325-14 |
SCREW-HH Price: $2.64 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
5-1706 |
SPRING-EXTENSION Price: $12.91 |
| 12 |
873610600 |
NUT Price: $2.99 |
| 13 |
532155134 |
KIT-AXLE This part replaces 532110438. Price: $13.26 |
| 14 |
874011056 |
Bolt, Hex Head 5/8-11 x 3-1/2 Price: $4.99 |
| 15 |
583612401 |
LOCKNUT M This part replaces 873901000. Price: $2.99 |
| 16 |
532132624 |
AXLE PIN Price: $2.42 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532140176. Price: $42.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $8.99 |
| 20 |
596582301 |
Washers This part replaces 532126684. Price: $2.99 |
| 21 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 22 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871070410. Price: $3.99 |
| 23 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532127501. Price: $29.99 |
| 24 |
532109816 |
NYLINER T (7283A) Price: $4.99 |
| 25 |
531152201 |
SERVICE KIT BRACKET BRKT This part replaces 532124036. Price: $12.99 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 29 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN This part replaces 532130467. Price: $79.99 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
873610500 |
This part replaces 873810500. Price: $2.15 |
| 36 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $6.99 |
| 37 |
817211008 |
Screw Slftp #10-16 x 1/2 Ty-Ab This part replaces 817431008. Price: $3.99 |
| 38 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 39 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
532104820 |
ADAPTER-WHEEL LT Price: $13.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532154307 |
KIT.EXTENSION.STEERING.PLM/LR This part replaces 532146690. Price: $34.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 50 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 55 |
532140285 |
CLIP Price: $2.99 |
| 57 |
532140172 |
SUPPORT STEERING SHAFT Price: $2.42 |
| 62 |
584371701 |
KIT.STEER.ASM.P/L This part replaces 532149686. Price: $119.99 |
