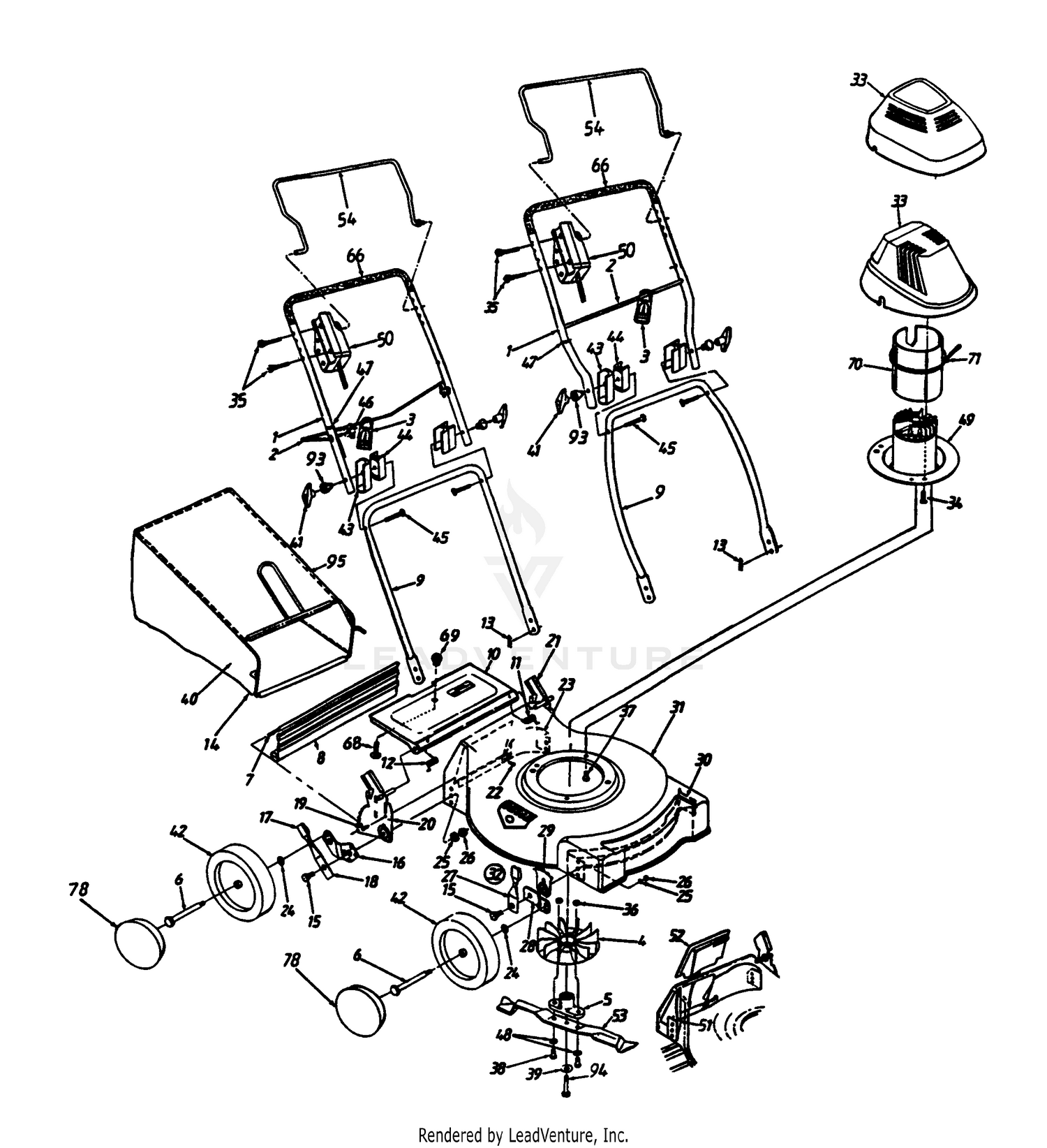

| Ref | Part Number | Description |
|---|
| 1 |
749-0883 |
UPPER HANDLE Not Available Price: |
| 2 |
747-1094 |
GUIDE ROD Not Available This part replaces 747-0790. Price: |
| 3 |
725-1590 |
CORD MINDER Not Available Price: |
| 4 |
731-1270 |
FAN Not Available Price: |
| 5 |
748-0356 |
BLADE ADAPTER Not Available Price: |
| 6 |
738-0102 |
Axle Bolt Price: $9.22 |
| 7 |
732-0712 |
FLAP WIRE Not Available Price: |
| 8 |
731-1261 |
FLAP Not Available Price: |
| 9 |
749-0882 |
LOWER HANDLE Not Available Price: |
| 10 |
782-7025-0637 |
CHUTE DOOR Not Available This part replaces 782-7025. Price: |
| 11 |
932-0677 |
SPRING-DOOR (LH) Not Available This part replaces 732-0677. Price: |
| 12 |
732-0678 |
Door Spring - R.H. Price: $7.13 |
| 13 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 14 |
764-0326 |
FRONT CATCHER FRAME Not Available Price: |
| 15 |
738-0507B |
Shld. Bolt .5" Dia. x .434" Price: $3.86 |
| 16 |
14765 |
BAR-PIVOT (RH) *ON Not Available Price: |
| 17 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 18 |
732-0417A |
SPRING LEVER Not Available Price: |
| 19 |
710-0896 |
Hex AB-Tap Scr. 1/4-14 x .62" Lg. Price: $3.86 |
| 20 |
682-0516-0637 |
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) Not Available This part replaces 682-0514. Price: |
| 21 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 682-0513. Price: |
| 22 |
710-1017 |
Torx . Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 23 |
782-5026 |
Rear Baffle Price: Call Us |
| 24 |
736-0105 |
Bell-Wash. .38" I.D. x .88" O.D. Price: $3.96 |
| 25 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 27 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 28 |
15262B |
Pivot Bar Price: $13.59 |
| 29 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 30 |
782-5025-0637 |
FRONT BAFFLE Not Available This part replaces 782-5025. Price: |
| 32 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 33 |
731-1264 |
MOTOR COVER Not Available Price: |
| 34 |
710-3009 |
Scr. #10-24 x .75" Lg. Price: $6.24 |
| 35 |
710-0605 |
C-Sunk Scr. 1/4-20 x 1.8" Lg. Price: $3.85 |
| 36 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 37 |
710-0654A |
Hex TT-Tap Scr. 3/8-16 x 1" Lg. Price: $3.75 |
| 38 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 39 |
736-0452 |
Bell-Wash. .396" I.D. x 1.14" Price: $4.05 |
| 40 |
764-0446 |
GRASSBAG Not Available Price: |
| 41 |
720-04072A |
Star Knob This part replaces 720-0241. Price: $6.07 |
| 42 |
734-1699 |
TREAD TYPE - DIAMOND 7" x 1.50" Not Available Price: |
| 43 |
731-1268 |
Upper Handle Insulator Price: $14.24 |
| 44 |
731-1267 |
LOWER HANDLE INSULATOR Not Available Price: |
| 45 |
710-0450 |
SCREW 5/16-18 x 3.0 GR1 Price: $5.59 |
| 46 |
N/A |
UNKNOWN |
| 47 |
726-0230 |
Cable Tie This part replaces 726-0209. Price: $23.95 |
| 48 |
736-0331 |
Bell-Wash. 3/8" I.D. Price: $3.50 |
| 49 |
818-60014 |
MOTOR, CORD & SWITCH ASS'Y. Not Available Price: |
| 51 |
782-5004B |
Mulching Baffle - R.R. This part replaces 782-5004. Price: $21.86 |
| 52 |
782-5007C |
Mulching Baffle Plug This part replaces 782-5007. Price: $45.78 |
| 54 |
747-0622 |
LEVER Not Available Price: |
| 66 |
720-0295 |
Grip Foam This part replaces 720-0226. Price: $29.03 |
| 68 |
710-0192 |
Truss Scr. #10-24 x .38" Lg. Price: $3.08 |
| 69 |
720-0275 |
KNOB Not Available Price: |
| 78 |
724-0194 |
Motor End Plate Price: Call Us |
| 93 |
731-1388 |
INSULATOR KNOB Not Available Price: |
| 94 |
710-1251 |
SCREW 3/8-24 x 2.50 GR8 Not Available Price: |
