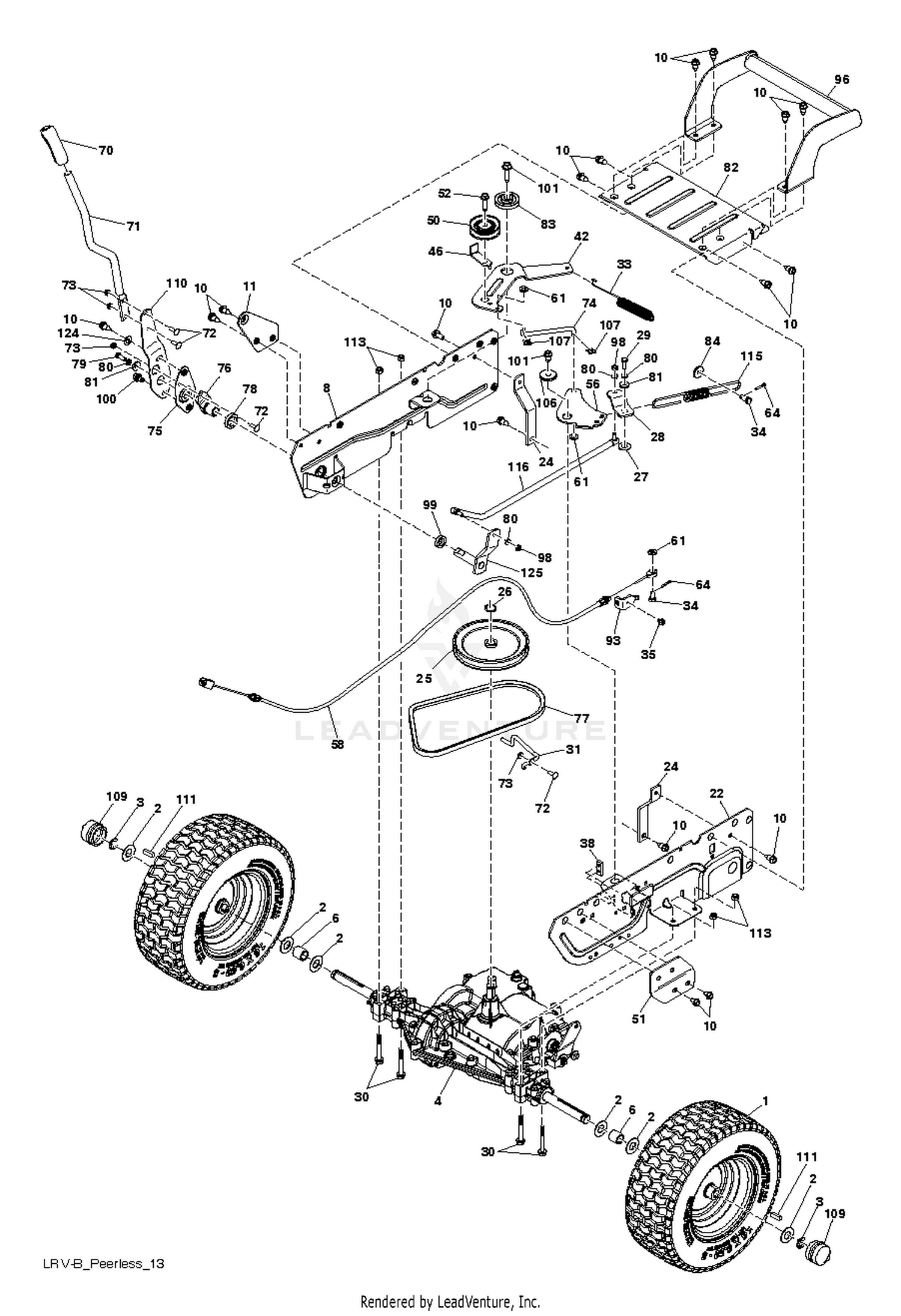

| Ref | Part Number | Description |
|---|
| 1 |
4744501 |
Strap, Lifting Price: Call Us |
| 1 |
532442079 |
WHEEL.TUBE.16X5.50-8.YELLOW.SN Price: $129.99 |
| 2 |
237658 |
Gasket-Head Price: Call Us |
| 2 |
532121748 |
WASHER Price: $1.99 |
| 3 |
237670 |
Belt Guide Price: Call Us |
| 3 |
812000001 |
E-RING LT Price: $2.99 |
| 4 |
270158 |
Screw Price: Call Us |
| 4 |
584836301 |
TRANSMISSION 4SPD MST 204-583A Price: $449.99 |
| 5 |
270721 |
Screw-H.C. Price: Call Us |
| 6 |
532156972 |
SPACER, AXLE PVST Price: $3.99 |
| 8 |
581524702 |
WELDMENT.SIDEPLATE.RH.X431 Price: $37.99 |
| 10 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 11 |
532436741 |
BRACKET.SUPPORT.RH Price: $4.99 |
| 22 |
581524602 |
WELDMENT.SIDEPLATE.LH.X431 Price: $34.99 |
| 24 |
580960802 |
STRAP.TORQUE.PMST.LRVB.PNT.431 Price: $1.99 |
| 25 |
581437701 |
PULLEY.INPUT.LRVB.PMST Price: $11.99 |
| 26 |
812000028 |
RETAINING RING LT Price: $4.99 |
| 27 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 28 |
580949302 |
ARM.SHIFTER.GEARDRIVE.PNT.431 Price: $1.99 |
| 29 |
871040412 |
BOLT LT This part replaces 874550412. Price: $3.99 |
| 30 |
874490540 |
BOLT Price: $2.99 |
| 31 |
581438102 |
KEEPER.BELT.DRIVE.LRVB.X431 Price: $2.99 |
| 33 |
581593101 |
SPRING.TENSIONER.LRVB.PMST Price: $1.99 |
| 34 |
581525001 |
PIN.HEX.CROSSDRILLED.3125 Price: $1.99 |
| 35 |
817490406 |
SCREW.1/4-20X3/8 Price: $2.99 |
| 38 |
581223001 |
PLATE NUT ZTR Price: $1.99 |
| 42 |
580961302 |
ARM.CLUTHCHING.LRVB..PNT.431 Price: $2.99 |
| 46 |
581444202 |
KEEPER.BELT.CLUTCHING.ARM.X431 Price: $1.99 |
| 50 |
532199534 |
PULLEY.V-IDLER. Price: $22.99 |
| 51 |
532436739 |
BRACKET SUPPORT.LH Price: $3.99 |
| 52 |
817580520 |
Screw Thdrol. 5/16-18 x 1.25 (AYP part number) Price: $2.99 |
| 56 |
581444002 |
BELLCRANK GROUNDDRIVE.LRVB.431 Price: $1.99 |
| 58 |
581531601 |
CABLE.BRAKE.LRVB.PMST Price: $34.99 |
| 61 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 64 |
876020412 |
COTTER PIN Price: $3.99 |
| 70 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 580962301. Price: $2.99 |
| 71 |
532436865 |
TUBE.SHIFT.LRVB Price: $11.99 |
| 72 |
582735501 |
BOLT This part replaces 872110406. Price: $2.99 |
| 73 |
873680400 |
NUT.CROWNLOCK.1/4 Price: $2.99 |
| 74 |
580961201 |
LINK.CLUTCHING.ARM.BELLCRANK Price: $2.99 |
| 75 |
532428464 |
MNTG BRKT. SHIFT ARM Price: $2.99 |
| 76 |
532444304 |
HUB.SHIFT Price: $4.99 |
| 77 |
581605901 |
BELT.DRIVE.GROUND.LRVB.PMST Price: $17.99 |
| 78 |
532429055 |
SPACER.NYLON. Price: $2.99 |
| 79 |
874780412 |
Bolt, Hex Head, Fin. 1/4-20 x 3/4 Grade 5 (AYP part number) Price: $2.99 |
| 80 |
810040400 |
LOCKWASHER Price: $3.99 |
| 81 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 82 |
583517101 |
COVER.REAR.LRVB This part replaces 532437168. Price: $17.99 |
| 83 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 84 |
819111610 |
WASHER Price: $3.99 |
| 93 |
532428070 |
BRAKE.MOUNT.CABLE.LRV Price: $2.99 |
| 96 |
532442073 |
BUMPER.REAR.WELDMENT.BLACK.LRV Price: $24.99 |
| 98 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 532150360. Price: $2.99 |
| 99 |
581049201 |
SPACER.ARM.SHIFTER Price: $1.99 |
| 100 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
| 101 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $3.99 |
| 106 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 107 |
532178062 |
CLIP RETAINER Price: $2.99 |
| 109 |
532193268 |
CAP.AXLE.FRONT.YELLOW Price: $2.99 |
| 110 |
532428461 |
BRACKET, SHIFTER FLEX Price: $11.99 |
| 111 |
532123583 |
SQUARE KEY Price: $2.99 |
| 113 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 115 |
581493801 |
SPRING.BRAKE.ENGAGE.LRVB.PMST Price: $2.99 |
| 116 |
580949201 |
LINK.STUD.BALL.GEARDRIV Price: $7.99 |
| 124 |
532166002 |
WASHER.SRRTD.5/16 Price: $3.99 |
