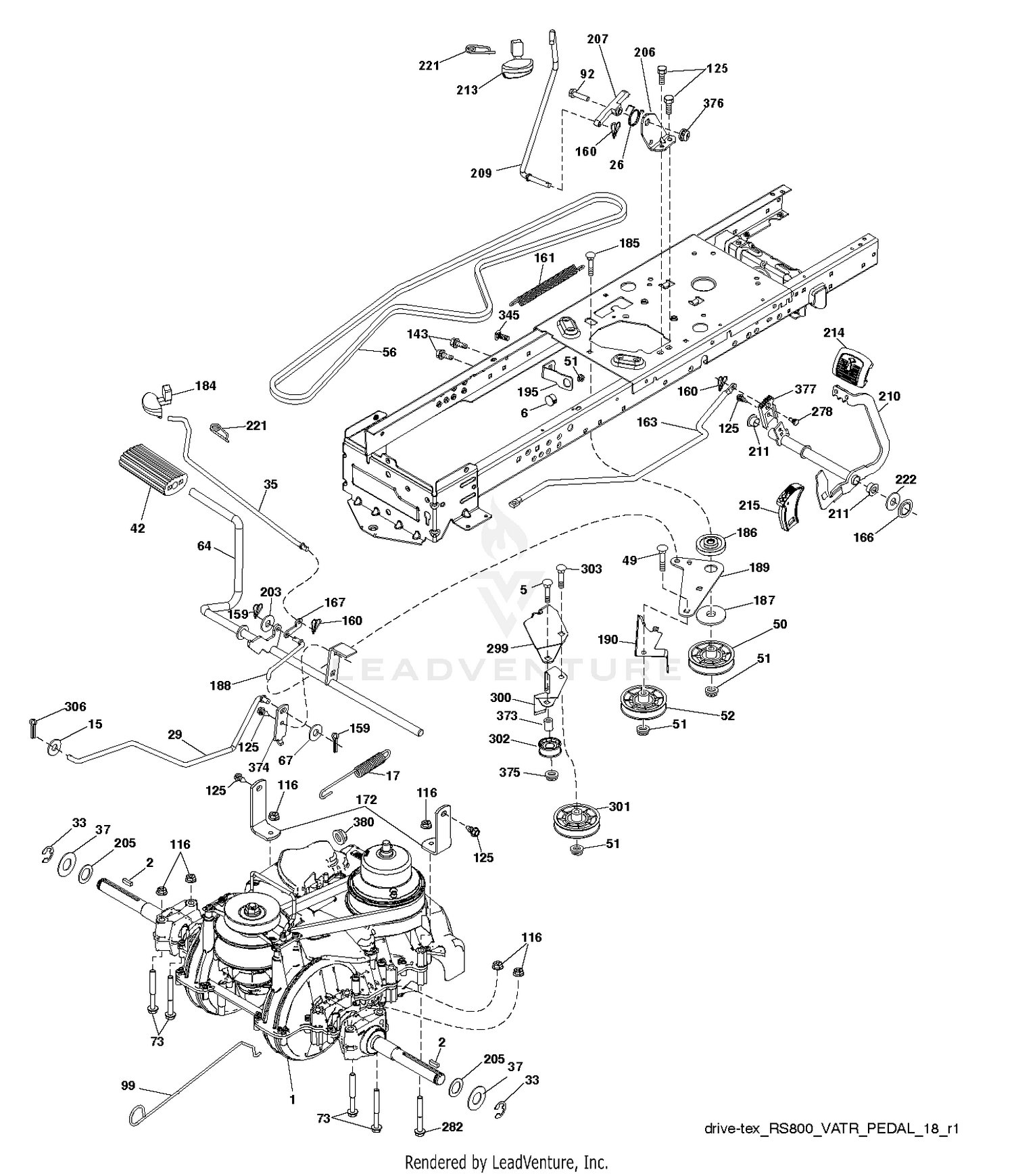

| Ref | Part Number | Description |
|---|
| 1 |
72-9300 |
Cover R.H Price: Call Us |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
72-9230-01 |
BASE-CASE, GEAR This part replaces 72-9230. Price: $176.88 |
| 3 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 4 |
51-3960 |
DECAL Price: $24.99 |
| 5 |
32128-20 |
NUT-HF Price: $0.99 |
| 5 |
874760636 |
BOLT Price: $4.99 |
| 6 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 6 |
72-9240-01 |
BRACKET-EXTENSION This part replaces 72-9240. Price: $23.69 |
| 7 |
322-4 |
SCREW-HH Price: $0.35 |
| 8 |
68-9890-01 |
COVER-GEARBOX, FRONT This part replaces 68-9890. Price: $47.21 |
| 9 |
63-9750 |
MOUNT Price: $18.92 |
| 10 |
68-8560-03 |
BRACKET-GEARBOX This part replaces 68-8560. Price: $57.56 |
| 11 |
63-8410 |
WASHER Price: $1.76 |
| 12 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 13 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 14 |
108-1370 |
GEARBOX REPLACEMENT KIT This part replaces 68-6810. Price: $862.61 |
| 15 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
323-4 |
SCREW-HH Price: $1.02 |
| 17 |
501487101 |
SPRING.BRAKE.VARIATOR Price: $4.99 |
| 17 |
63-9900 |
GEARBOX PULLEY ASM Price: $135.09 |
| 18 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 19 |
27-6140 |
BUSHING-LOCK, TAPER Price: $84.79 |
| 20 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 21 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 22 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 23 |
119-4762-01 |
COVER-BELT, LH This part replaces 72-9340. Price: $114.44 |
| 24 |
3296-28 |
NUT-LOCK, NI This part replaces 32128-7. Price: $0.61 |
| 25 |
3245-9 |
SCREW-SET, HSH Price: $0.81 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 29 |
584823102 |
ROD.BRAKE.VARIATOR.SD3.X431 Price: $9.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
590605902 |
ROD ROD.PARKINGBRAKE.GT.HUSQ/P Price: $7.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855001 |
Belts This part replaces 532197253. Price: $34.99 |
| 64 |
589671401 |
SHAFT VARIATOR PEDAL CROSS Price: $49.99 |
| 67 |
582580101 |
WASHER.NYLON;13/32X13/16X.109 Price: $4.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532435935 |
ROD.BYPASS.VARIATOR.GEN2 Price: $4.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 539990858. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
583971301 |
ROD.CONTROL.PEDAL.VARIATOR This part replaces 587847902. Price: $27.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 172 |
583974201 |
STRAP.TORQUE.VARIATOR This part replaces 583974202. Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 195 |
581504601 |
BRACKET.BRAKE.BRAKE.VAR.SD Price: $6.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
532448264 |
LATCH.CONTROL.CRUISE.VARIATOR Price: $17.99 |
| 209 |
590527802 |
ROD ROD.CRUISECONTROL.GT.HUSQ/ Price: $6.99 |
| 210 |
588921002 |
WELDMENT.PEDAL.VARIATOR.X431 This part replaces 588921001. Price: $39.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532448254 |
CAP.PEDAL.REVERSE.VARIATOR Price: $5.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 282 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 299 |
532415683 |
BRACKET.MOUNT.IDLERS Price: $7.99 |
| 300 |
531153901 |
SERVICE KIT IDLER KEEPER This part replaces 532415681. Price: $3.99 |
| 301 |
532415680 |
PULLEY.IDLER.V-GROOVE Price: $24.99 |
| 302 |
581420501 |
PULLEY.IDLER.FLAT.2" Price: $22.99 |
| 303 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 306 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 345 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 373 |
581461801 |
SPACER.IDLER Price: $3.99 |
| 374 |
581475201 |
ARM.CONTROL.BRAKE Price: $4.99 |
| 375 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 376 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 380 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 582478601. Price: $1.99 |
