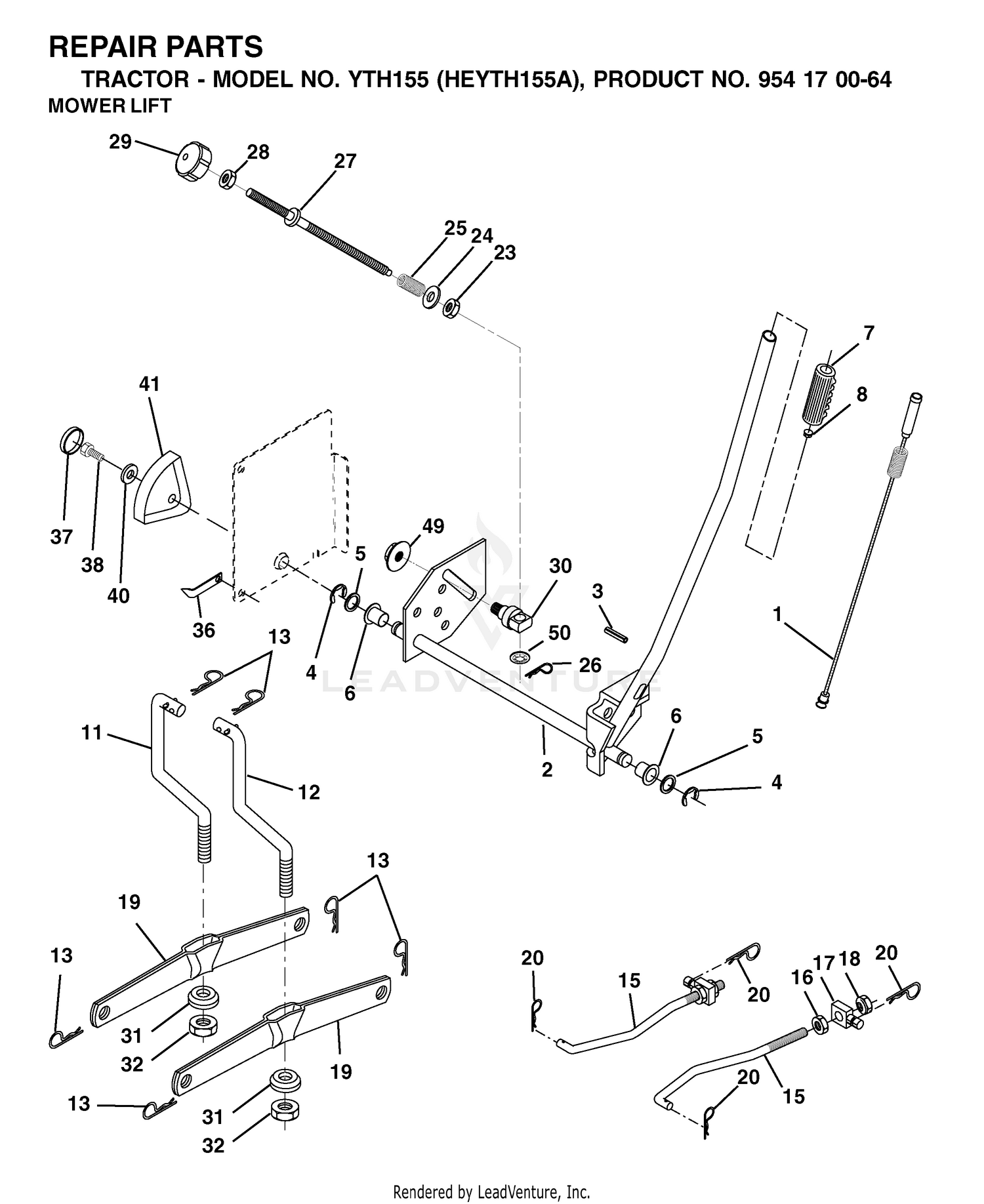

| Ref | Part Number | Description |
|---|
| 1 |
117-5663 |
SCREW-HH Price: $1.29 |
| 1 |
532159460 |
WIRE ASM INNER W/ PLUNGER LT Price: $22.99 |
| 2 |
107-1413 |
WASHER-HARDENED Price: $1.08 |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 3 |
132-6120-0P |
PLATE-FLYWHEEL This part replaces 132-6120-03. Price: $510.83 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 4 |
139-9940 |
SCREW-HH This part replaces 99-5132. Price: $1.99 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 5 |
87-7510 |
WASHER-FLAT Price: $1.15 |
| 6 |
132-6121 |
COUPLING-FLYWHEEL Price: $372.90 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
120-4066-0P |
MOUNT-MOTOR, FRONT This part replaces 120-4066-03. Price: $20.27 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
33114-020 |
SCREW-HH Price: $0.28 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
121-5636 |
TAB-HARNESS Price: $3.37 |
| 11 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 12 |
33115-025 |
SCREW-HH Price: $0.61 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 14 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 15 |
53-9682 |
MOUNT-ENGINE Price: $108.69 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
120-4068-0P |
MOTOR MOUNT ASM This part replaces 120-4068-03. Price: $55.91 |
| 17 |
323-5 |
SCREW-HH Price: $0.41 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 18 |
323-14 |
SCREW-HH Price: $1.34 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
33115-020 |
SCREW-HH Price: $0.88 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 21 |
127-2774 |
BRACKET-HARNESS, RH Price: $17.26 |
| 22 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 23 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
127-3722-0P |
MOTOR MOUNT ASM This part replaces 127-3722-03. Price: $164.15 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
127-2773 |
BRACKET-HARNESS, LH Price: $14.53 |
| 25 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 27 |
532126971 |
ROD ADJ LIFT Price: $5.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532155098 |
IND. HEIGHT STLT Price: $4.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
