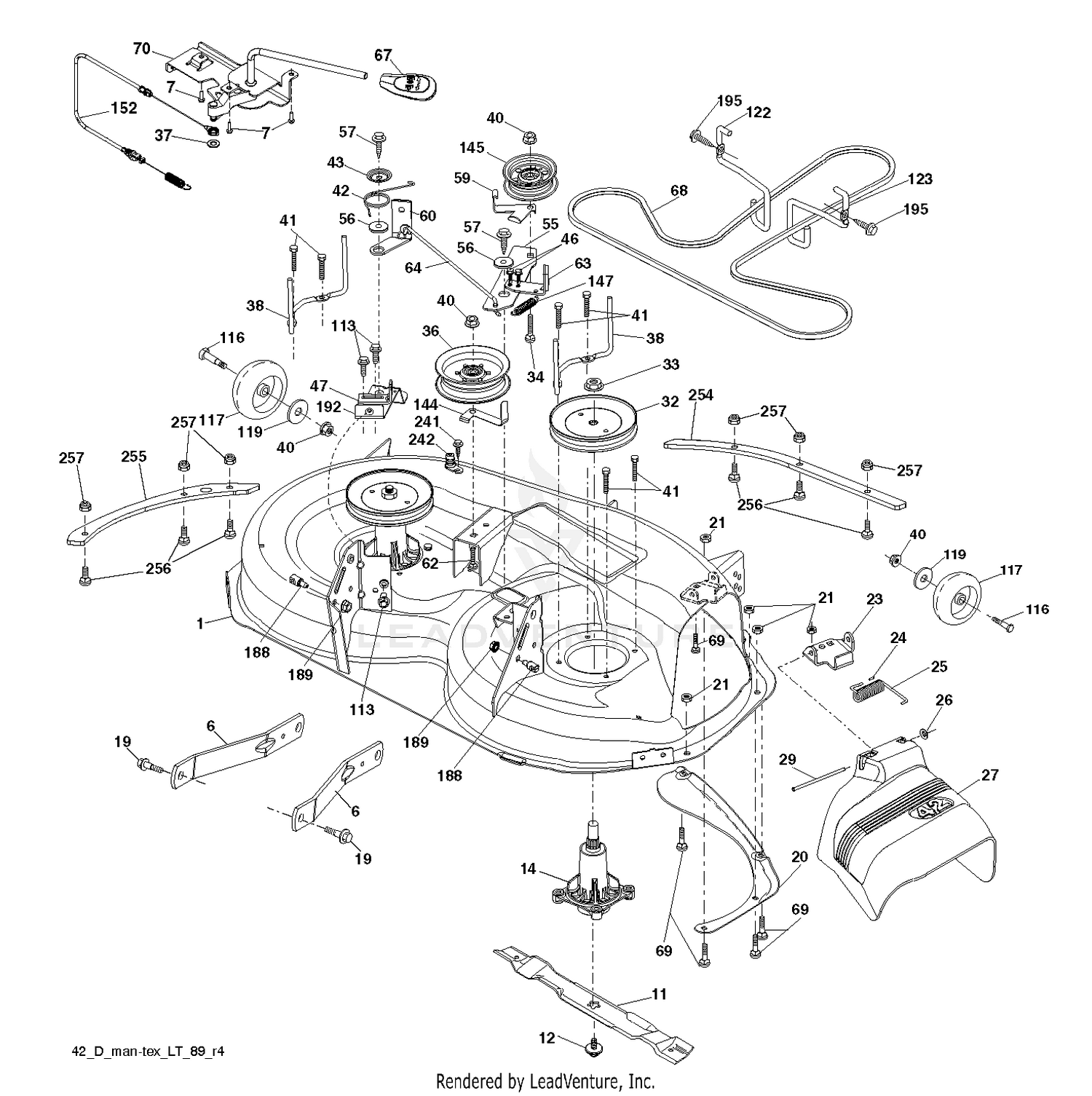

| Ref | Part Number | Description |
|---|
| 1 |
120-6272 |
HYD MOTOR ASM This part replaces 110-1717. Price: $846.73 |
| 1 |
598602801 |
Decks This part replaces 532447895. Price: $349.99 |
| 2 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 3 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 4 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 6 |
117-0174-03 |
BRACKET-BULKHEAD Price: $43.53 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
32144-57 |
SCREW Price: $1.04 |
| 7 |
596321701 |
Screws Price: $2.99 |
| 8 |
105-3048 |
WASHER-FLAT Price: $0.89 |
| 9 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 10 |
99-8611 |
SPACER Price: $5.71 |
| 11 |
114-8887 |
TUBE ASM Price: $100.66 |
| 12 |
2412-113 |
CLAMP-R Price: $0.75 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 13 |
117-0142 |
TUBE ASM Price: $136.47 |
| 14 |
340-78 |
NUT-LOCK Price: $1.63 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL Price: $49.99 |
| 15 |
117-0140 |
TUBE ASM Price: $100.52 |
| 16 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 17 |
117-0141 |
TUBE ASM Price: $127.80 |
| 18 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
94-5780 |
SCREW-HWH Price: $7.49 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 21 |
596040501 |
Hardware Price: $2.99 |
| 22 |
3334-945 |
TIE-CABLE Price: $0.43 |
| 23 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
114-0633 |
HOSE-HYD Price: $149.34 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
117-5190 |
HOSE-HYD Price: $171.44 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
106-3671 |
HOSE-HYD Price: $112.38 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
117-5188 |
HOSE-HYD Price: $192.82 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 28 |
106-3680 |
HOSE-HYD Price: $73.67 |
| 29 |
114-0633 |
HOSE-HYD Price: $149.34 |
| 29 |
595297001 |
Rods Price: $4.99 |
| 30 |
98-4590 |
HOSE-HYD Price: $76.24 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 33 |
139-5996 |
HOSE GUIDE ASM-LH This part replaces 119-3921. Price: $32.43 |
| 33 |
596134801 |
Nuts Price: $1.00 |
| 34 |
139-5995 |
GUIDE-HOSE, RH This part replaces 119-3920. Price: $32.43 |
| 34 |
596136101 |
GSPW Bolts Price: $2.99 |
| 35 |
117-0177 |
TUBE ASM Price: $127.80 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 38 |
589676103 |
KEEPER 42 MANDREL BELT FOR 6.2 This part replaces 589676102. Price: $6.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 60 |
597074201 |
ARMS This part replaces 532197261. Price: $12.99 |
| 62 |
596136301 |
Bolts Price: $2.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $14.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC Price: $11.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
598559101 |
Belts Price: $44.99 |
| 69 |
596136401 |
Bolts Price: $2.99 |
| 70 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX Price: $71.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434402 |
Bolts Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW Price: $9.99 |
| 119 |
596134901 |
GSPH Price: $2.99 |
| 144 |
531169801 |
SERVICE KIT BELT KEEPER This part replaces 532199204. Price: $4.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532401971 |
RETURN SPRING Price: $4.99 |
| 152 |
532435110 |
CABLE.CLUTCH.CABLE.W/SPRING Price: $32.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts Price: $2.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 254 |
585316805 |
PLATES.RENFRC.42DECK.PT431FRNT Price: $11.99 |
| 255 |
585317005 |
PLATES.RENFRCE.42DECK.X431SIDE Price: $11.99 |
| 256 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- Price: $2.99 |
| 257 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $8.99 532416405 |
