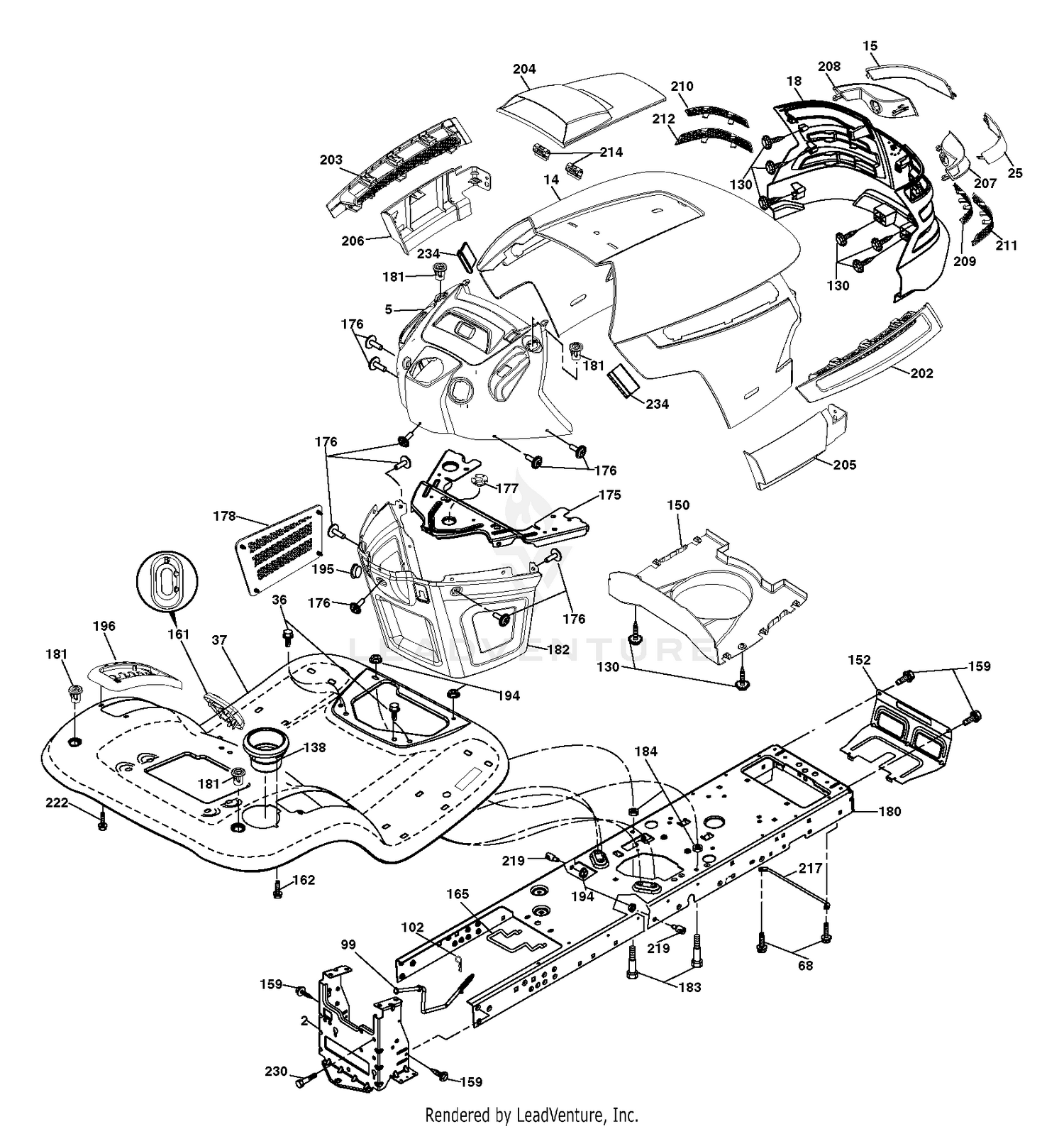

| Ref | Part Number | Description |
|---|
| 1 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 2 |
532194263 |
DRAWBAR.1PC.NSTL Price: $54.99 |
| 2 |
75-3780 |
FAN-ENGINE Price: $367.12 |
| 3 |
75-6380 |
SHAFT-FAN Price: $141.82 |
| 4 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 5 |
532401823 |
DASH.HUSQ.UPR.ELE.SVMD Price: $49.99 |
| 5 |
75-6390 |
FAN PULLEY Price: $50.20 |
| 6 |
47-0110 |
SPACER-SPINDLE Price: $1.42 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
75-5310 |
SPACER-BEARING Price: $4.41 |
| 9 |
75-4450 |
HUB Price: $205.03 |
| 10 |
67-1630 |
SPACER Price: $28.84 |
| 11 |
323-6 |
SCREW-HH Price: $0.66 |
| 12 |
321-4 |
SCREW-HH Price: $0.99 |
| 13 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532401824. Price: $149.99 |
| 15 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
2412-4 |
CLAMP-R Price: $4.22 |
| 17 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 18 |
322-4 |
SCREW-HH Price: $0.35 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM This part replaces 532404821. Price: $129.99 |
| 19 |
93-0048 |
HOSE - AIR CLEANNER Price: $47.82 |
| 20 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 21 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 22 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 23 |
75-1360 |
DISCONTINUED Price: Call Us |
| 24 |
104-0550 |
SHORT BLOCK KIT This part replaces 93-0049. Price: $11,926.35 |
| 25 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 26 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 27 |
48-7890 |
NUT-HEX Price: $0.25 |
| 28 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 29 |
93-0050-03 |
MOUNT-ENGINE LH REAR This part replaces 93-0050. Price: $18.80 |
| 30 |
93-0092 |
DISCONTINUED Price: Call Us |
| 31 |
3213-2 |
SCREW-HH Price: $1.90 |
| 32 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 33 |
93-0093-03 |
BRACKET-ENGINE LH REAR This part replaces 93-0093. Price: $48.64 |
| 34 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 35 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 36 |
323-9 |
SCREW-HH Price: $1.29 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532405789 |
FENDER Price: $139.99 |
| 37 |
57-6390 |
NUT-JAM Price: $0.89 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
48-8070 |
WASHER-LOCK Price: $0.47 |
| 40 |
42-9250 |
BOLT Price: $1.63 |
| 41 |
70-8220 |
GROUND CABLE Price: $12.98 |
| 43 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 44 |
323-14 |
SCREW-HH Price: $1.34 |
| 45 |
93-0095-03 |
BRACKET-ENGINE, FRONT This part replaces 93-0095. Price: $111.93 |
| 46 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 47 |
322-6 |
SCREW-HH Price: $0.45 |
| 48 |
93-0051-03 |
MOUNT ASM LH FRONT-ENGINE This part replaces 93-0051. Price: $63.67 |
| 49 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 50 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 52 |
93-0054-03 |
FAN SUPPORT ASM This part replaces 93-0054. Price: $332.57 |
| 53 |
27-9560 |
SPACER Price: $3.87 |
| 54 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 55 |
93-0043-03 |
LEVER-IDLER This part replaces 93-0043. Price: $29.04 |
| 56 |
93-0062 |
V-BELT Price: $36.59 |
| 57 |
323-7 |
SCREW-HH Price: $0.65 |
| 58 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 59 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 60 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 61 |
322-2 |
SCREW-HH Price: $0.69 |
| 62 |
93-0074 |
DISCONTINUED Price: Call Us |
| 63 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 64 |
63-7790 |
SCREW-CAP This part replaces 42-9300. Price: $1.46 |
| 65 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 66 |
3256-40 |
WASHER-FLAT Price: $2.10 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 99 |
532401003 |
ROD ASM BYPASS Price: $10.99 |
| 102 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 130 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 138 |
532439747 |
HOLDER.CUP.LT.GREY This part replaces 532402954. Price: $4.99 |
| 150 |
532198513 |
AIR.DUCT.TEXGT.HUSQ.SV Price: $37.99 |
| 152 |
532194329 |
SHIELD.BROWNING/DEBRIS Price: $17.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532440029 |
WINDOW.FUEL.LT.TEX.GREY This part replaces 532404941. Price: $11.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532400315 |
SUPPORT.TANK.REAR.WIRE Price: $19.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 532194260. Price: $229.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. This part replaces 532404796. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR This part replaces 532194787. Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 184 |
532195780 |
SPACER.FENDER Price: $5.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
532414579 |
CONSOLE.ASM.DECKLFT.BL/RBT.TLT This part replaces 532402843. Price: $22.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532198904. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 219 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 222 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
