| Ref | Part Number | Description |
|---|
| 1 |
82-8170 |
CLAMP Price: $17.27 |
| 2 |
93-7960 |
SPACER Price: $5.67 |
| 3 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 4 |
60-6700 |
BOLT-HH Price: $1.29 |
| 5 |
84-2780 |
DECAL - NO STEP Price: $11.39 |
| 5 |
93-6687 |
DECAL-NO STEP This part replaces 36-3400. Price: $14.45 |
| 6 |
93-9194 |
LIFT ARM WA - #5 *B Price: $897.89 |
| 7 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 8 |
237-21 |
O-RING Price: $0.70 |
| 9 |
75-5890 |
HOSE Price: $75.32 |
| 10 |
237-78 |
O-RING Price: $3.85 |
| 11 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 12 |
92-7564 |
HOSE-HYD Price: $84.98 |
| 13 |
98-8069 |
CYLINDER - HYD 1-5/8 This part replaces 93-7551. Price: $778.75 |
| 14 |
256-172 |
BUSHING Price: $4.57 |
| 15 |
94-1430 |
DISCONTINUED Price: Call Us |
| 16 |
93-4224 |
SHOCK ABSORBER Price: $143.44 |
| 17 |
69-8980 |
WASHER Price: $0.58 |
| 18 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 19 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 20 |
98-8188 |
PIN WA W/NUT This part replaces 95-3461. Price: $9.33 |
| 21 |
88-0440 |
DISCONTINUED Price: Call Us |
| 21 |
88-1900 |
DISCONTINUED Price: Call Us |
| 21 |
93-6693 |
DECAL-PLATE, FLOOR Price: $10.84 |
| 22 |
99-5669 |
CARRIER FRAME WA This part replaces 93-2649. Price: $2,556.86 |
| 23 |
83-6780 |
PIN-CYLINDER Price: $130.51 |
| 24 |
328-7 |
SCREW-HH Price: $4.00 |
| 25 |
94-8949 |
BUSHING-FLANGE Price: $2.51 |
| 27 |
94-1425 |
BAR - LIFT CENTER WA Price: $214.36 |
| 28 |
82-6490 |
HOSE Price: $83.18 |
| 29 |
94-9974 |
RING-RETAINING Price: $0.70 |
| 30 |
94-9998 |
WASHER-THRUST Price: $11.60 |
| 31 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 32 |
93-9193 |
DISCONTINUED Price: Call Us |
| 34 |
92-8754 |
DISCONTINUED Price: Call Us |
| 35 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 36 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 37 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 38 |
138-6951 |
CYLINDER ASM-HYDRAULIC This part replaces 93-2650. Price: $664.52 |
| 39 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 40 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 41 |
93-9190 |
DISCONTINUED Price: Call Us |
| 42 |
93-4234 |
SCREW-HSH Price: $6.08 |
| 44 |
93-9181 |
KNUCKLE - PIVOT *B Price: $573.32 |
| 45 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 46 |
99-5610 |
PIN This part replaces 93-9161. Price: $40.16 |
| 47 |
93-7524 |
DISCONTINUED Price: Call Us |
| 48 |
94-8947 |
BUSHING-FLANGE Price: $4.54 |
| 49 |
94-8948 |
BUSHING - STRAIGHT Price: $7.56 |
| 50 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 51 |
92-7565 |
HOSE ASM Price: $89.51 |
| 52 |
92-7562 |
HOSE ASM Price: $71.47 |
| 53 |
2412-96 |
CLAMP-R Price: $3.46 |
| 54 |
322-4 |
SCREW-HH Price: $0.35 |
| 55 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 56 |
33104-060 |
SCREW-HHF Price: $1.02 |
| 57 |
53-6380 |
WASHER-FLAT Price: $8.62 |
| 58 |
33105-040 |
SCREW-HHF Price: $1.49 |
| 59 |
98-8811 |
CYLINDER - HYD This part replaces 93-7555. Price: $877.67 |
| 60 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 501080380 |
501080380 |
Price: $5.90 |

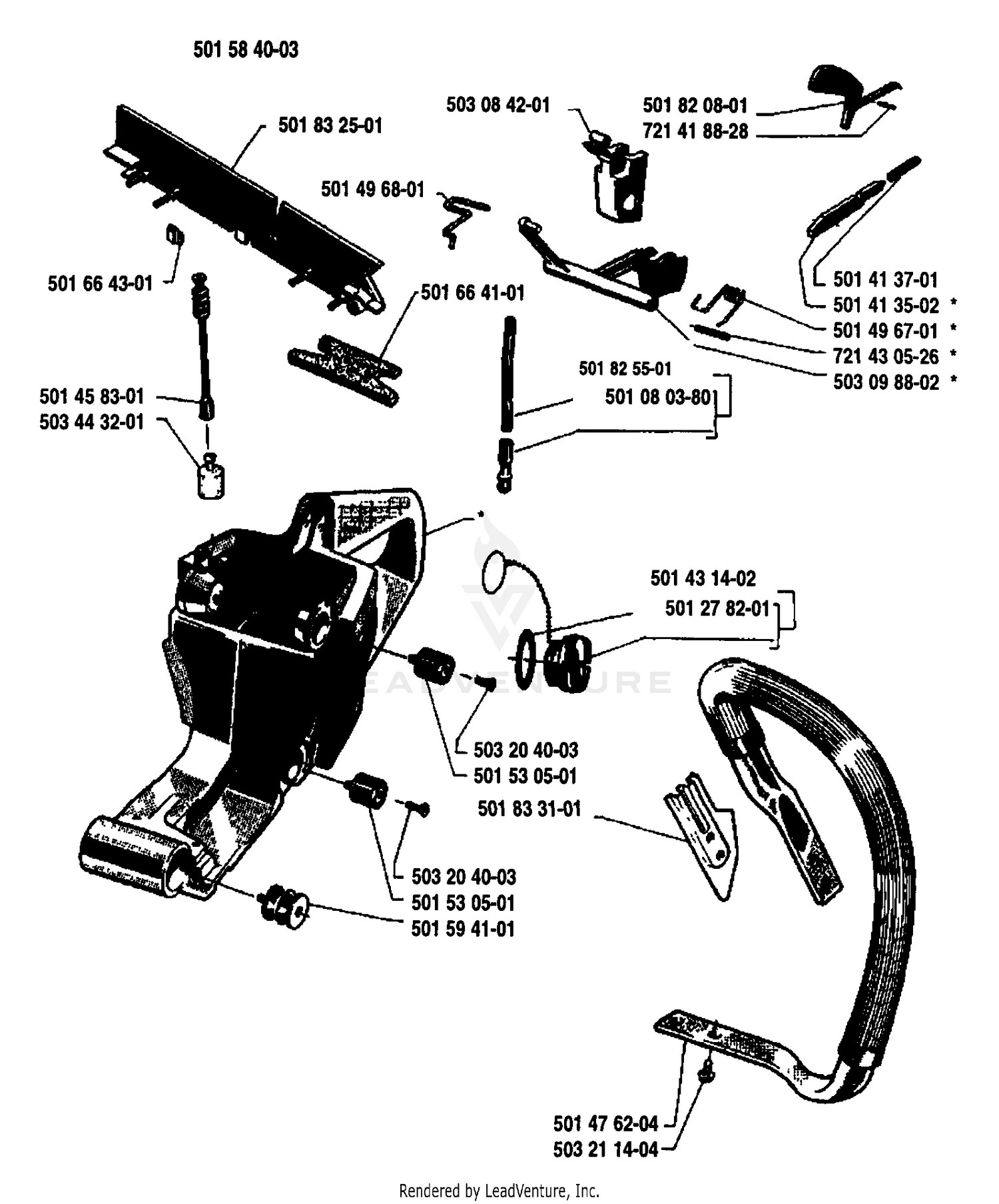

| 501278201 |
501278201 |
WASHER Price: $3.99 |
| 501413502 |
501413502 |
CATCH Price: $1.90 |
| 501413701 |
501413701 |
Price: $1.43 |
| 501431402 |
501431402 |
TANK CAP Price: $11.99 |
| 501458301 |
501458301 |
FUEL HOSE Price: $8.99 |
| 501476204 |
501476204 |
FRONT HANDLE NLA Price: $52.34 |
| 501496701 |
501496701 |
Price: $1.83 |
| 501496801 |
501496801 |
THROTTLE ROD NLA Price: $6.93 |
| 501530501 |
501530501 |
ANTIVIBE ELEMENT Price: $6.99 |
| 501584003 |
501584003 |
TANK UNIT NLA Price: $122.52 |
| 501594101 |
501594101 |
ANTIVIBE ELEMENT Price: $14.99 |
| 501664101 |
501664101 |
HEAT PROTECTOR Price: $4.99 |
| 501664301 |
501664301 |
CLIP Price: $1.49 |
| 501820801 |
501820802 |
This part replaces 501820801. Price: $3.17 |
| 501825501 |
501825501 |
Price: $9.50 |
| 501832501 |
501832501 |
SEALING LIST Price: $4.69 |
| 501833101 |
501833101 |
Price: $4.33 |
| 503084201 |
503084201 |
Price: $5.04 |
| 503098802 |
503098802 |
LEVER Price: $7.99 |
| 503204003 |
503204003 |
SCREW FS 5X10 Price: $6.99 |
| 503211404 |
503210622 |
SCREW This part replaces 503211404. Price: $5.99 |
| 503443201 |
591375401 |
KIT FUEL FILTER This part replaces 503443201. Price: $8.99 |
| 721430526 |
721430526 |
SPRING PIN 5X14 Price: $2.99 |
