| Ref | Part Number | Description |
|---|
| 0 |
640230 |
CARBURETOR-NLA This part replaces 632942A. Price: Call Us |
| 1 |
119-9397 |
MOTOR VALVE COVER ASM Price: $61.33 |

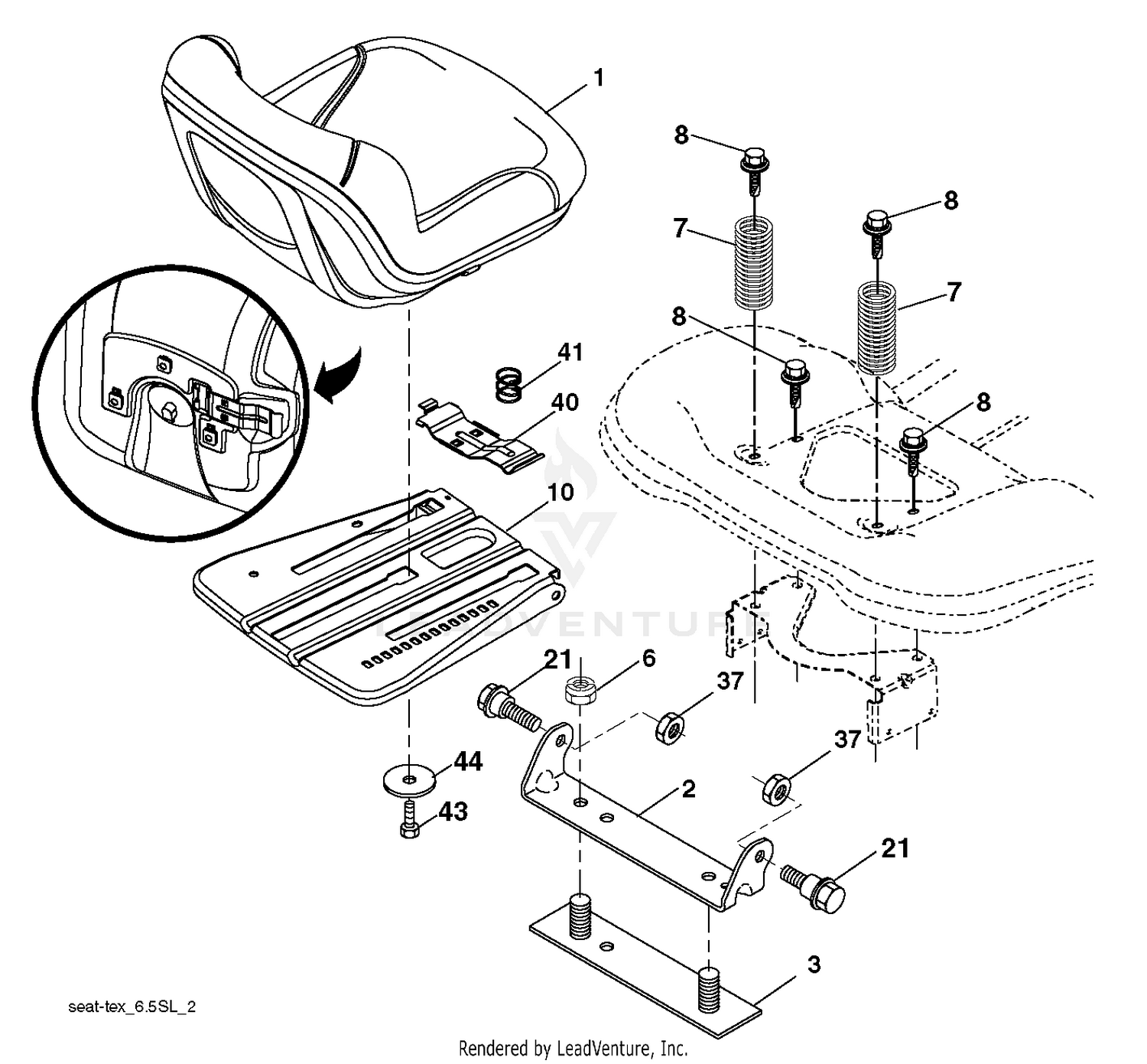

| 1 |
583239201 |
SEAT.TP110.BLK.PPRO.MILSCO This part replaces 532197514. Price: $129.99 |
| 1 |
632947 |
SHAFT & LEV Price: $18.80 |
| 2 |
119-4862 |
FORK Price: $4.70 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $5.99 |
| 2 |
632928 |
SPRING Price: $2.60 |
| 3 |
121-5054 |
PISTON ASM Price: $199.60 |
| 3 |
532140675 |
STRAP Price: $3.99 |
| 3 |
632926 |
CLIP Price: Call Us |
| 3A |
632950 |
SCREW Price: Call Us |
| 3B |
632949 |
SPACER Price: Call Us |
| 4 |
121-5056 |
SPRING-PISTON Price: $14.65 |
| 4 |
632939A |
WASHER Price: Call Us |
| 5 |
632929A |
WASHER Price: $3.86 |
| 6 |
632930 |
SHUTTER Price: $10.29 |
| 6 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 7 |
632931 |
SCREW Price: $2.57 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 10 |
532196977 |
PAN.ASM.SEAT.3PT Price: $32.99 |
| 17 |
632946 |
SCREW Price: $6.48 |
| 20 |
632911 |
SCREW Price: $8.60 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $1.99 |
| 21 |
632912 |
SPRING Price: $2.60 |
| 27 |
632916 |
PIN Price: $2.49 |
| 28 |
632915 |
LEVER Price: $2.60 |
| 30 |
632918 |
INLET NEEDLE Price: $7.48 |
| 31 |
632920 |
SPRING Price: $2.60 |
| 34 |
632917 |
SCREW Price: Call Us |
| 37 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 40 |
532197661 |
HANDLE.SLIDE.SEAT.TEX.BLACK Price: $12.99 |
| 40 |
632937 |
FUEL JET Price: $15.72 |
| 40A |
632951 |
JET CAP Price: Call Us |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $2.99 |
| 43 |
874760612 |
BOLT Price: $1.99 |
| 45 |
632919 |
SCREEN Price: $2.45 |
| 48 |
632902 |
WELCH PLUG Price: Call Us |
| 50 |
632904 |
DIAPHRAGM Price: $14.93 |
| 51 |
632903 |
GASKET Price: $2.60 |
| 52 |
632905 |
COVER Price: Call Us |
| 53 |
632943 |
SCREW Price: $2.28 |
| 60 |
632933 |
REPAIR KIT Price: Call Us |
| 62 |
640252 |
PUMP DIAPHRAGM This part replaces 632908. Price: $3.86 |
| 63 |
632907 |
GASKET Price: $2.60 |
| 64 |
632944 |
COVER Price: $7.34 |
| 65 |
632945 |
SCREW Price: $3.61 |
