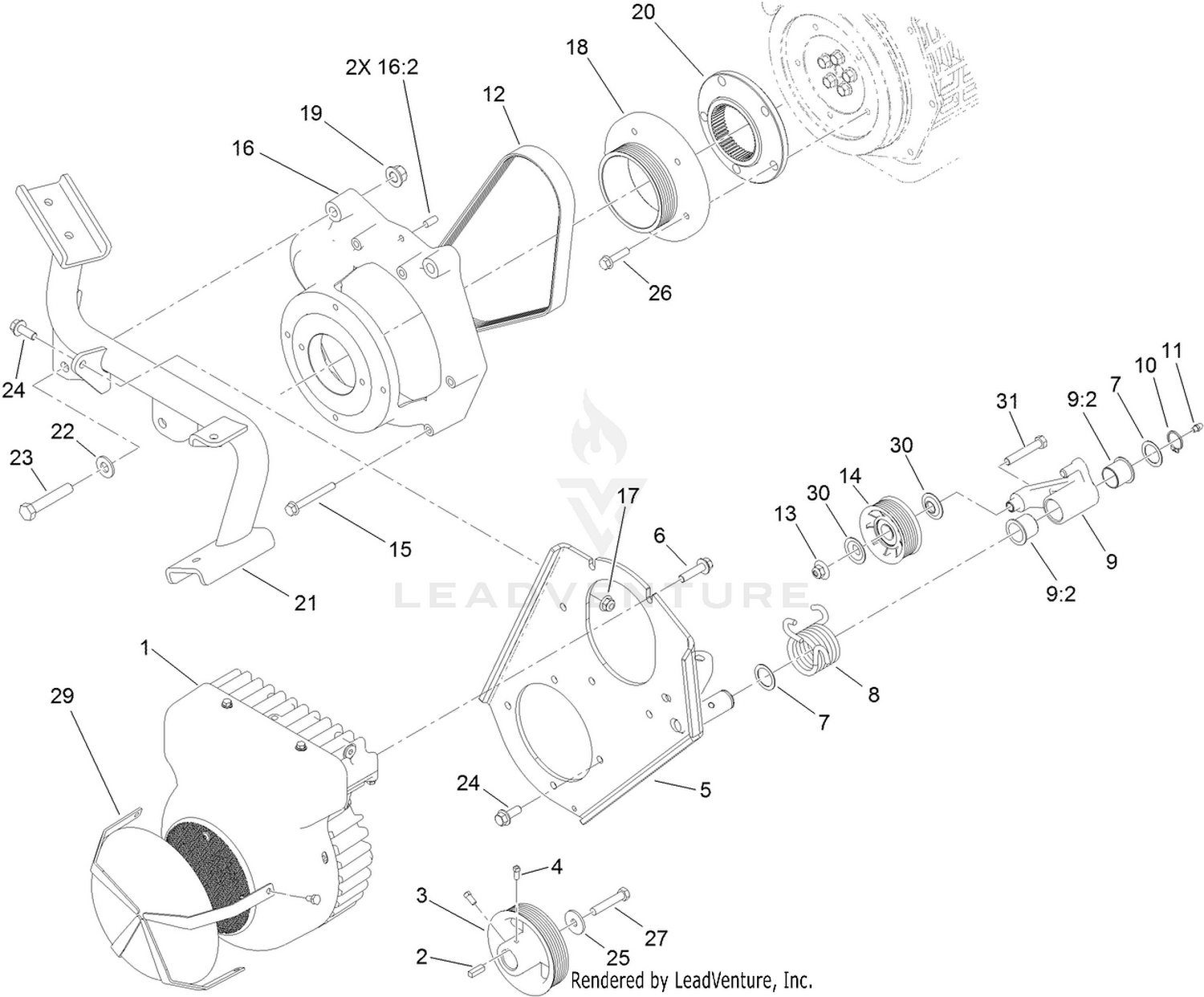

Generator and Engine Frame Assembly

Ref	Part Number	Description
1	127-2580	GENERATOR/CONTROLLER ASM Price: $7,179.45
2	10-7070	KEY-SQUARE Price: $1.02
3	117-9295	PULLEY-GENERATOR Price: $276.68
4	3241-7	SCREW-SQH Price: $3.39
5	117-9293-03	PLATE-GENERATOR Price: $177.44
6	114-4681	SCREW-HHF Price: $0.89
7	74-1810	WASHER Price: $0.39
8	117-9342	SPRING-TORSION Price: $26.32
9	145-0053	IDLER BRACKET ASM Price: $129.44
10	32151-36	RING-RETAINING Price: $1.73
11	302-5	FITTING-GREASE Price: $0.59
12	117-4464	BELT-V Price: $31.73
13	109-6658	NUT-FLANGE, NI Price: $0.89
14	120-5766	PULLEY Price: $53.38
15	33104-070	SCREW-HHF Price: $2.37
16	119-4454	BELL HOUSING ASM Price: $300.35
17	104-8301	NUT-HF, NI Price: $1.09
18	117-4458	PULLEY-ENGINE, DIESEL Price: $313.95
19	99-5107	NUT-LOCK Price: $1.77
20	115-8727	FLANGE-COUPLING Price: $94.44
21	119-2131-03	MOUNT-REAR, ENGINE Price: $550.44
22	87-7270	WASHER-THRUST Price: $0.89
23	325-11	SCREW-HH Price: $1.93
24	3234-42	SCREW-HHF Price: $1.10
25	63-8410	WASHER Price: $1.76
26	33104-030	SCREW-HHF Price: $4.66
27	3211-9	SCREW-HH Price: $1.09
29	117-4504-03	GUARD Price: $154.07
30	120-5757	WASHER-FLANGE Price: $6.31
