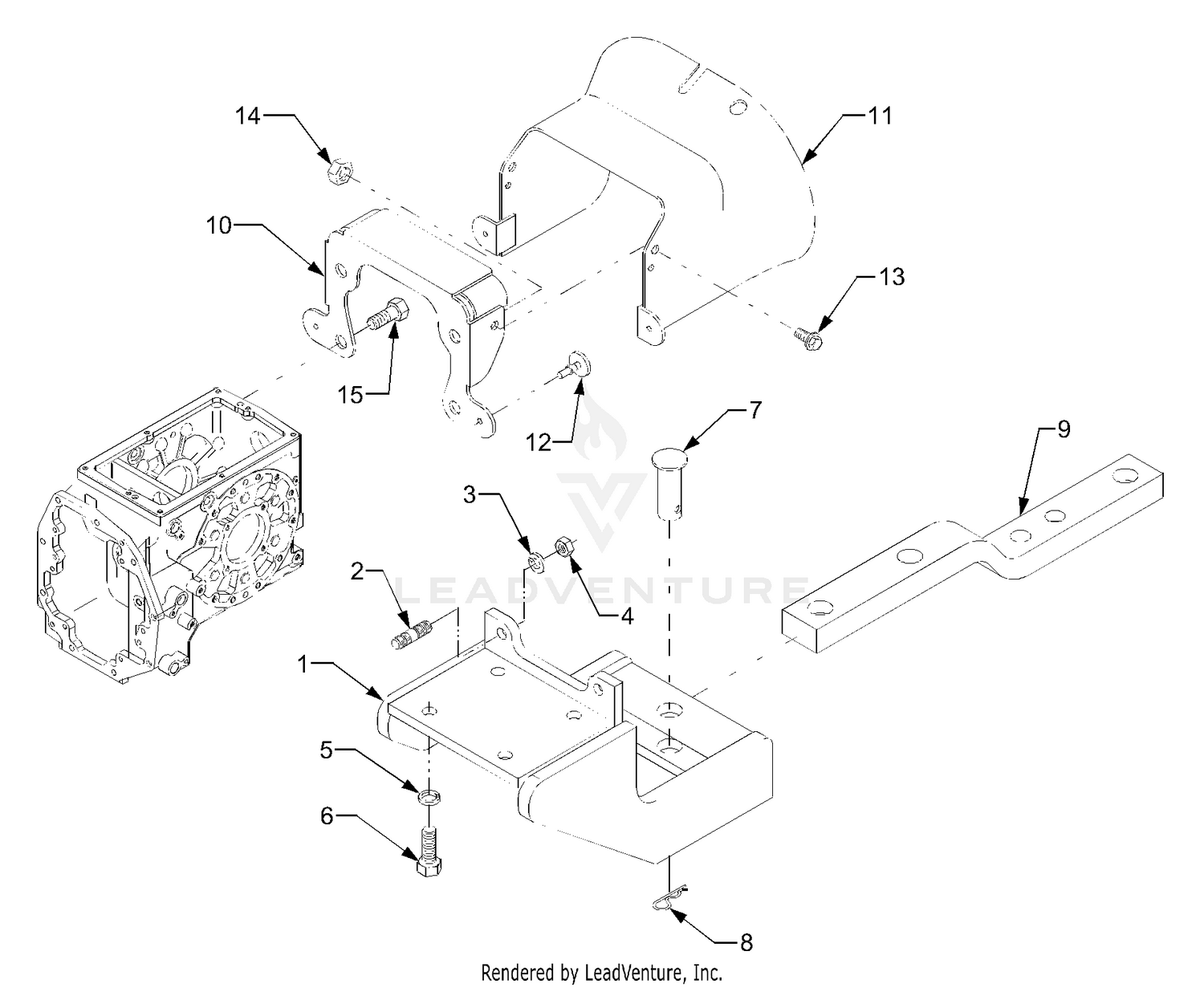

Swing Drawbar Group
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3220-12 | NUT-HEX JAM LH Price: $1.83 |
| 1 | DD-T2615-29811 | FRAME-DRAW BAR Not Available Price: |
| 2 | 21-0141 | RH BALL JOINT ASM Price: $109.12 |
| 2 | DD-01574-51230 | STUD Not Available Price: |
| 3 | 3255-2 | WASHER-LOCK, EXT Price: $0.95 |
| 3 | DD-04512-50120 | LOCK WASHER Not Available Price: |
| 4 | 75-7730 | WASHER-THRUST Price: $2.88 |
| 4 | DD-02176-50120 | HEX NUT Not Available Price: |
| 5 | 325-6 | SCREW-HH Price: $1.42 |
| 5 | DD-04512-50140 | LOCK WASHER Not Available Price: |
| 6 | 302-5 | FITTING-GREASE Price: $0.59 |
| 6 | DD-01173-51435 | HEX BOLT Not Available Price: |
| 7 | 94-3675-01 | FORK This part replaces 94-3675. Price: $599.80 |
| 7 | DD-T2445-29781 | PIN-DRAWBAR Not Available Price: |
| 8 | 3296-50 | NUT-LOCK, NI Price: $2.68 |
| 8 | DD-70515-16334 | SPRING PIN Not Available Price: |
| 9 | 3256-28 | WASHER-FLAT Price: $0.48 |
| 9 | DDT261529832BB | BAR-DRAW Not Available This part replaces DD-T2615-29831. Price: |
| 10 | DD-T2615-57051 | BRACKET-PTO SHIELD Not Available Price: |
| 11 | 94-5028 | SEE PB #941 Price: Call Us |
| 11 | DD-T4686-74051 | SHIELD-REAR PTO CV Not Available Price: |
| 12 | 3220-3 | NUT-HJ Price: $0.28 |
| 12 | DD-K9100-50241 | CUSHION-RUBBER Not Available Price: |
| 13 | 94-5111 | DISCONTINUED Price: Call Us |
| 13 | DD-01754-50816 | HEX FLANGE BOLT Not Available Price: |
| 14 | 61-2070-03 | TUBE-STEERING This part replaces 61-2070. Price: $89.00 |
| 14 | DD-41011-51514 | HEX NUT Not Available Price: |
| 15 | 251-321 | BEARING-BALL, FLANGED Price: $22.10 |
| 16 | 302-55 | FITTING-GREASE Price: $3.09 |
| 17 | 94-5952 | DISCONTINUED Price: Call Us |
| 18 | 94-5970 | SPACER Price: $19.14 |
