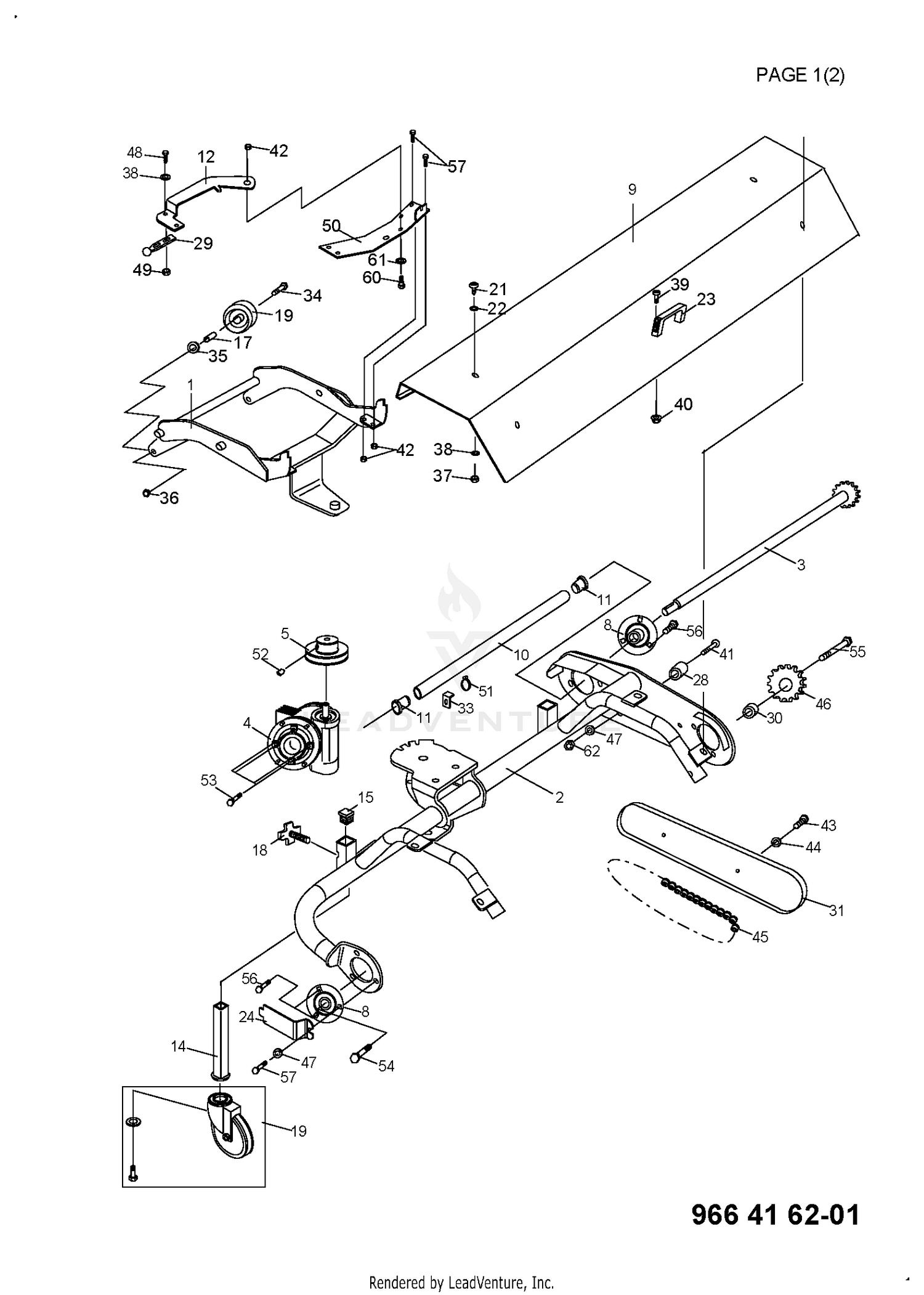

PRODUCT COMPLETE
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 576905901 | FRAME BRACKET Price: $499.99 |
| 2 | 576906001 | FRAME BRACKET Price: $79.99 |
| 3 | 576906101 | DRIVE SHAFT Price: $149.99 |
| 4 | 576906201 | WORM GEAR Price: $599.00 |
| 5 | 576906701 | PULLEY Price: $12.99 |
| 8 | 531005259 | BEARING Price: $79.99 |
| 9 | 576907001 | GUARD Price: $219.99 |
| 10 | 576922901 | GUARD Price: $29.99 |
| 11 | 576908001 | BEARING Price: $9.99 |
| 12 | 576907101 | PLATE Price: $64.99 |
| 13 | 576907201 | TUBE Price: $199.00 |
| 14 | 576907301 | TUBE Price: $19.99 |
| 15 | 531005315 | PROTECTOR Price: $4.99 |
| 16 | 591052601 | NEEDS DESCRIPTION This part replaces 576489401. Price: $24.99 |
| 17 | 505450301 | TUBE This part replaces 576489201. Price: $9.99 |
| 18 | 535415024 | WINGSCREW Price: $17.99 |
| 19 | 576907401 | SUPPORT WHEEL Price: $84.99 |
| 21 | 506982601 | SCREW Price: $5.99 |
| 22 | 506559701 | WASHER Price: $4.99 |
| 23 | 576907601 | GRIP Price: $6.99 |
| 24 | 576907701 | COVER Price: $8.99 |
| 28 | 576906401 | CHAIN ADJUSTER Price: $32.99 |
| 29 | 506599601 | Support Strap Price: $5.51 |
| 30 | 576906501 | COLLAR Price: $19.99 |
| 31 | 576906601 | COVER Price: $139.99 |
| 33 | 576919401 | SUPPORT Price: $4.99 |
| 34 | 531021239 | SCREW Price: $6.99 |
| 35 | 576491701 | WASHER Price: $2.99 |
| 36 | 531021130 | NUT Price: $3.99 |
| 37 | 531021197 | WASHER Price: $2.99 |
| 38 | 576919501 | SOCKET Price: $2.99 |
| 39 | 576919601 | NUT LOCKING Price: $1.99 |
| 40 | 577607801 | NUT Price: $1.99 |
| 42 | 531021219 | NUT Price: $2.99 |
| 43 | 531021144 | SCREW Price: $4.99 |
| 44 | 531021184 | WASHER Price: $1.61 |
| 45 | 576919801 | CHAIN Price: $17.99 |
| 46 | 576919901 | WHEEL Price: $14.99 |
| 47 | 531021216 | WASHER Price: $3.99 |
| 48 | 531021299 | SCREW Price: $1.99 |
| 49 | 531021198 | NUT Price: $2.99 |
| 50 | 576920101 | PLATE Price: $22.99 |
| 51 | 531005182 | CLAMP Price: $12.99 |
| 52 | 531021169 | SCREW Price: $4.99 |
| 53 | 535415036 | SCREW Price: $2.99 |
| 54 | 531021195 | SCREW Price: $14.99 |
| 55 | 576920201 | SCREW Price: $12.99 |
| 56 | 531021146 | SCREW Price: $3.99 |
| 57 | 535415045 | SCREW Price: $1.99 |
| 60 | 576923101 | SCREW Price: $1.99 |
| 61 | 576923201 | WASHER Price: $1.99 |
| 62 | 531021226 | NUT Price: $2.99 |
