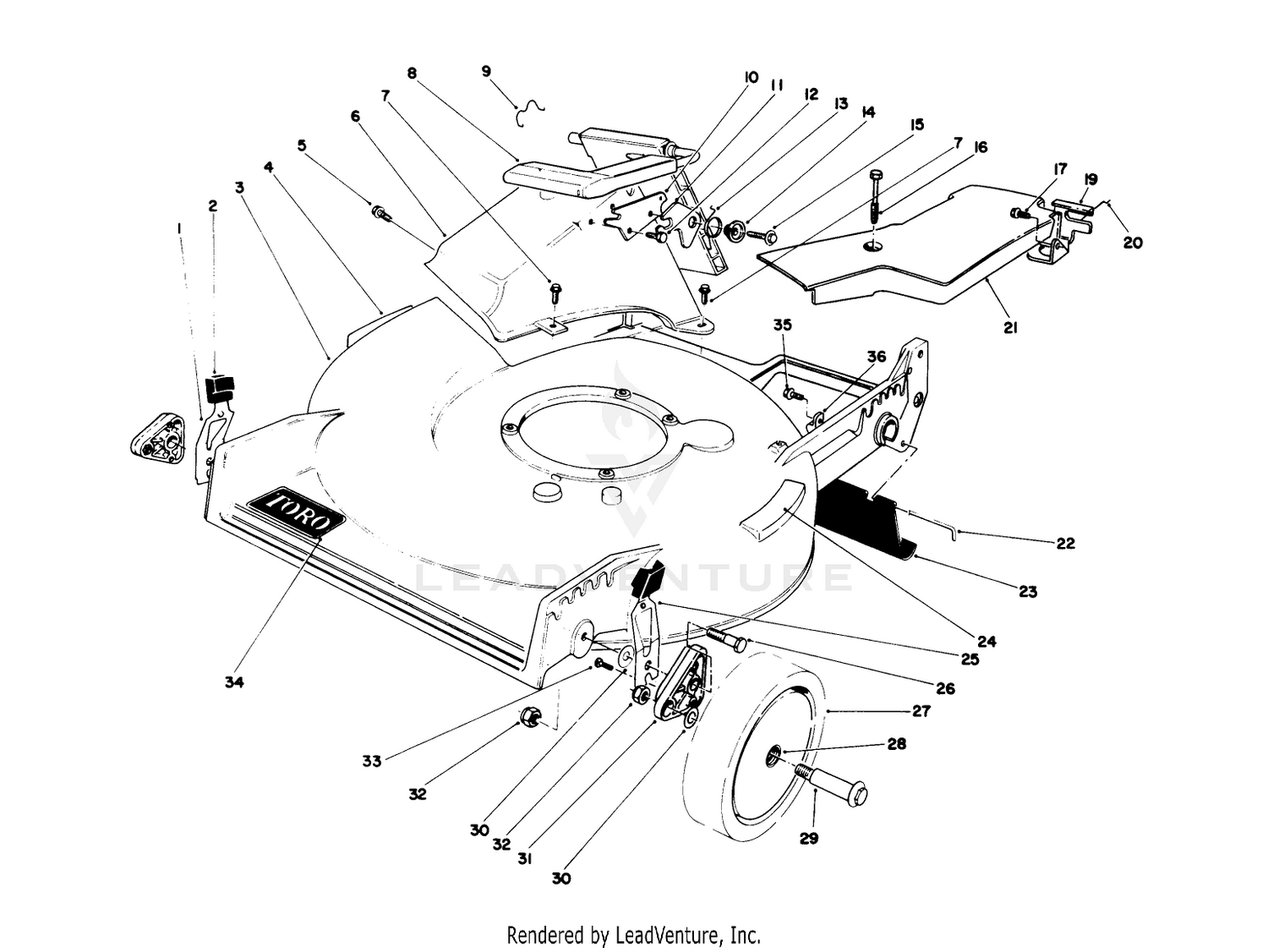

| Ref | Part Number | Description |
|---|
| 1 |
71-0561 |
RH SPRING ARM ASM This part replaces 71-0560. Price: $15.99 |
| 2 |
25-7740 |
KNOB-ARM Price: $4.59 |
| 3 |
13-4659 |
HOUSING W/DECAL Price: $883.99 |
| 4 |
39-5770 |
DECAL-DANGER Price: $7.99 |
| 5 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 6 |
82-9151 |
TUNNEL-DISCHARGE This part replaces 46-3501. Price: $148.99 |
| 7 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 8 |
77-0200 |
DISCONTINUED This part replaces 51-0201. Price: Call Us |
| 9 |
47-5840 |
DOOR RET SPRING Price: $5.31 |
| 10 |
23-1040 |
DOOR LATCH PLATE Price: $18.75 |
| 11 |
42-4010 |
SAFETY LATCH Price: $5.33 |
| 12 |
46-8090 |
SCREW-PLASTITE Price: $2.04 |
| 13 |
33-4860 |
TORSION SPRING Price: $61.99 |
| 14 |
43-4840 |
DOOR SPACER Price: $6.39 |
| 15 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 16 |
37-7260 |
SCREW-HWH Price: $5.09 |
| 17 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 19 |
82-5680-03 |
BRACKET-TRACTION, ADJ. This part replaces 62-3940. Price: $10.99 |
| 20 |
46-7030 |
RETAINER-CABLE Price: $5.29 |
| 21 |
82-9911 |
DISCONTINUED This part replaces 62-4314. Price: Call Us |
| 22 |
33-3208 |
ROD-SHIELD Price: $13.99 |
| 23 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $26.99 |
| 25 |
71-0570 |
LH SPRING ARM ASSEMBLY Price: $19.99 |
| 26 |
66-0561 |
SCREW-SHOULDER Price: $5.49 |
| 27 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $28.99 |
| 28 |
27-6250 |
BUSHING Price: $2.29 |
| 29 |
27-6231 |
WHEEL BOLT Price: $4.49 |
| 30 |
40-1940 |
WASHER Price: $1.59 |
| 31 |
66-0580 |
ARM-PIVOT, FRONT Price: $16.99 |
| 32 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 33 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 34 |
71-0600 |
DECAL Price: $12.99 |
| 35 |
12-5450 |
SCREW Price: $7.99 |
