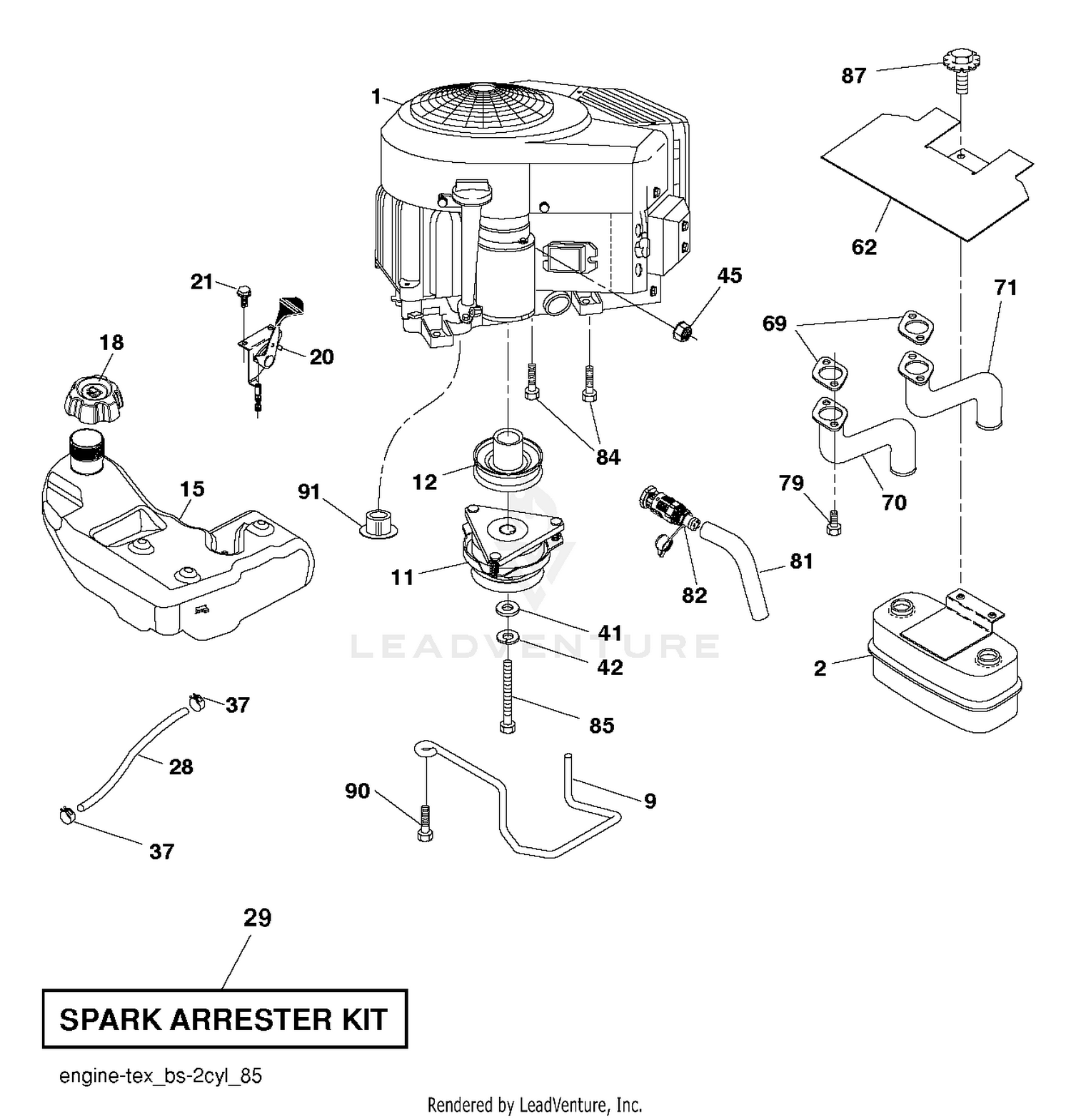

| Ref | Part Number | Description |
|---|
| 1 |
68-4250 |
DISCONTINUED Price: Call Us |
| 2 |
325-32 |
SCREW-HH Price: $5.77 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 4 |
40-9520 |
SPACER Price: $0.33 |
| 5 |
40-0330 |
CUSHION-RUBBER Price: $8.08 |
| 6 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 7 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 11 |
32122-28 |
SCREW Price: $5.02 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 12 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
68-8900-01 |
FRONT CASTOR FORK ASM This part replaces 68-8900. Price: $108.04 |
| 15 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 15 |
529998404 |
FUEL TANK, 4GAL, 2.25"NECK, 20 This part replaces 532438081. Price: $199.99 |
| 16 |
68-8960 |
TIRE Price: $63.99 |
| 17 |
325-19 |
SCREW-HH Price: $2.57 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
68-8940 |
HUB-CENTER Price: $29.99 |
| 19 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 20 |
62-5580 |
BEARING-OUTSIDE Price: $6.58 |
| 21 |
302-61 |
FITTING-GREASE Price: $10.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
68-8950 |
TUBE-INNER (W/VALVE) Price: $26.99 |
| 23 |
68-8920 |
FEMALE WHEEL HALF Price: $14.99 |
| 24 |
68-8930 |
MALE WHEEL HALF Price: $14.99 |
| 25 |
62-5570 |
BEARING-ROLLER Price: $18.63 |
| 26 |
68-8980 |
SPANNER-TIRE Price: $8.72 |
| 27 |
32153-5 |
NUT-HEX Price: $1.59 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
3217-6 |
NUT-HEX Price: $1.19 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 31 |
42-6200 |
SHIM-CUSHION Price: $9.09 |
| 32 |
68-8360 |
DECAL-HOC, LH Price: $21.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
