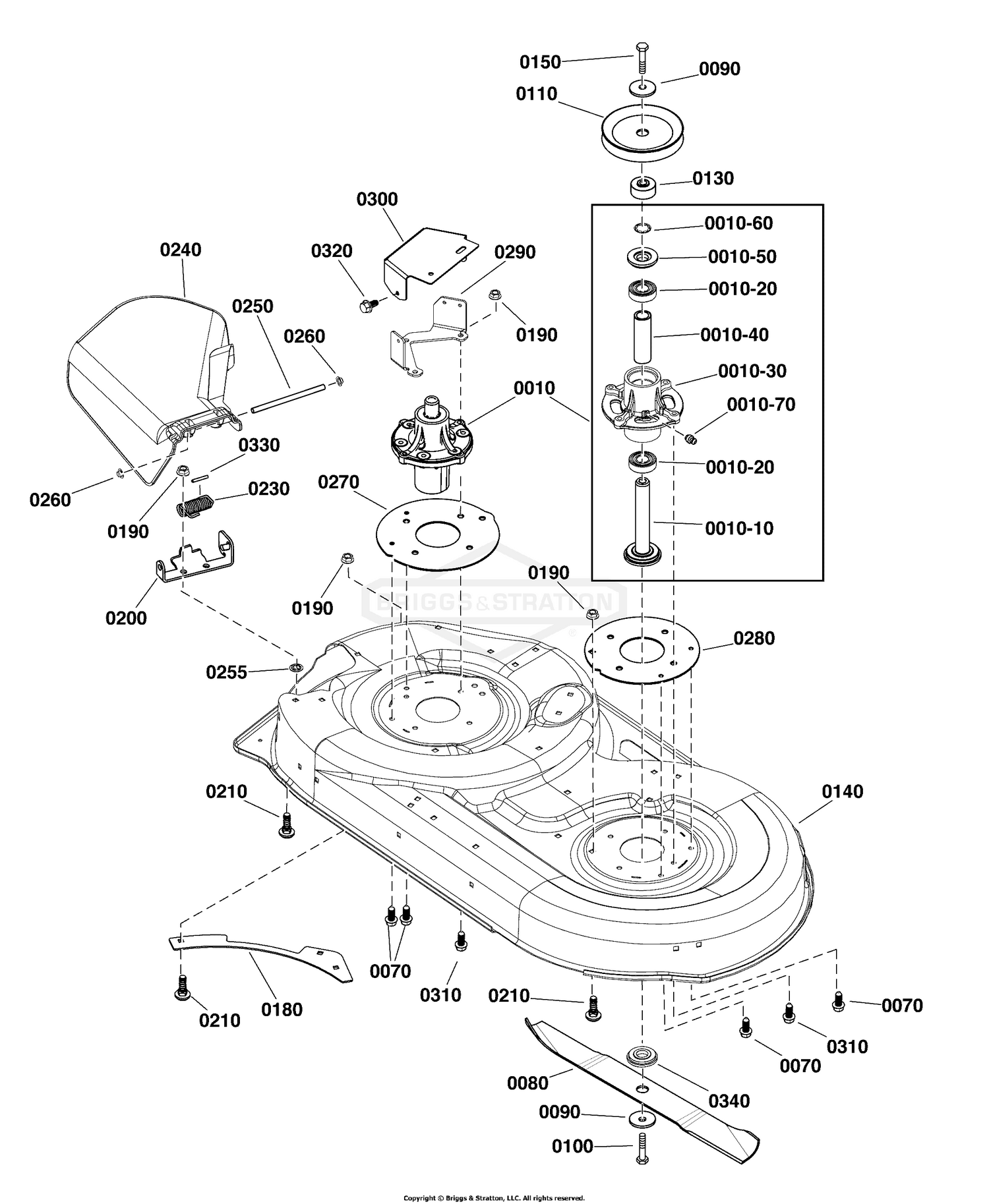

| Ref | Part Number | Description |
|---|
| 0010 |
84003175 |
ARBOR ASSEMBLY Price: $93.65 |
| 0070 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 0080 |
1752100AYP |
BLADE, 42” Mower Price: $26.38 |
| 0090 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0100 |
703579 |
HHCS, 7/16-14X1.25 Price: $4.04 |
| 0110 |
1737835YP |
PULLEY, 4.50 Price: $18.70 |
| 0130 |
1737457YP |
SPACER, Pulley Price: $9.62 |
| 0140 |
1687779YP |
KIT, HOUSING, 42" Price: $429.29 |
| 0150 |
703579 |
HHCS, 7/16-14X1.25 Price: $4.04 |
| 0180 |
092426E701MA |
PLATE, Rear Price: $9.32 |
| 0190 |
703409 |
NUT, 5/16-18, GR5 Price: $4.92 |
| 0200 |
094956E701MA |
BRACKET - HINGE Price: $19.95 |
| 0210 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0230 |
0166X4MA |
SPRING, Torsion Price: $6.00 |
| 0240 |
094707MA |
DEFLECTOR & SUPPORT ASSEMBLY, Chute Price: $100.93 |
| 0250 |
094957ZMA |
ROD, Deflector Price: $10.20 |
| 0255 |
703297 |
RETAINER, GR5, 5/16 Price: $3.29 |
| 0260 |
703948 |
PUSHNUT, 3/8 Price: $3.82 |
| 0270 |
1750457BMYP |
PLATE, SPINDLE, RH Price: $25.76 |
| 0280 |
1750458BMYP |
PLATE, SPINDLE, LH Price: $25.76 |
| 0290 |
1752065BMYP |
BRACKET, Guard Mount Price: $21.00 |
| 0300 |
1758017BMYP |
COVER, MOWER SPINDLE Price: $27.02 |
| 0310 |
1930600SM |
CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2 Price: $4.49 |
| 0320 |
26X263MA |
SCREW.25-20 S-T Price: $4.05 |
| 0330 |
5023489SM |
CAP, PROTECTOR, .120 Price: $3.40 |
