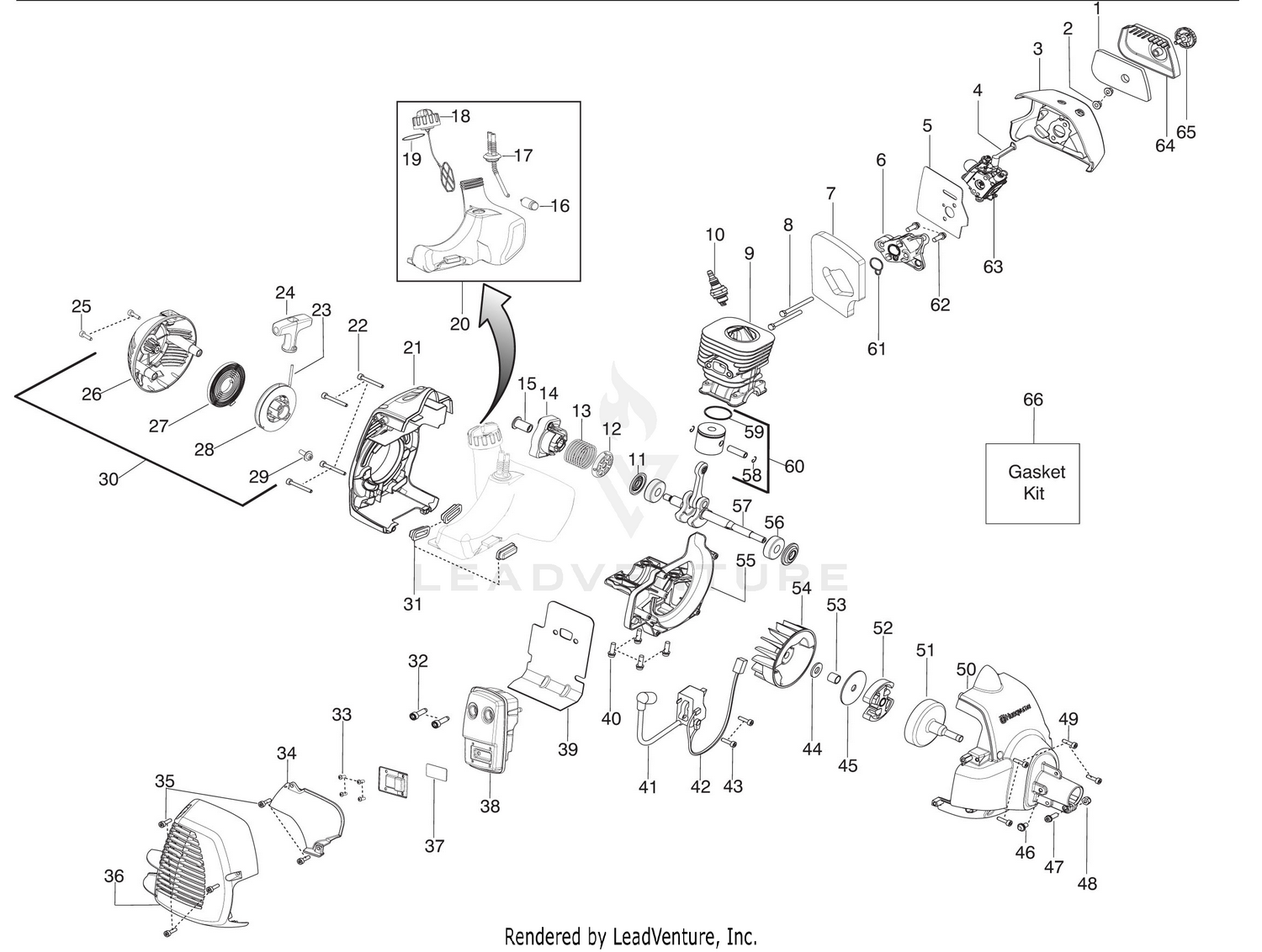

| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 1 |
530150253 |
FILTER AIRBOX Price: $2.99 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 2 |
530016101 |
NUT Price: $4.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
530057844 |
CHOKE LEVER Price: $5.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
530035596 |
CARB ADAPTOR Price: $7.99 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 8 |
530016400 |
BOLT CARB ADAPTOR Price: $3.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
545003378 |
KIT CYL PISTON & CRANKCASE This part replaces 545001001. Price: $27.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
503235112 |
BPMR6A NGK SPARK PLUG This part replaces 952030201. Price: $8.99 |
| 11 |
545050403 |
KIT SEAL CRANKSHAFT Price: $7.99 |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 12 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 12 |
530016475 |
WASHER STARTER Price: $5.99 |
| 13 |
12-5450 |
SCREW Price: $7.99 |
| 13 |
545160301 |
SPRING STARTER CUP Price: $4.99 |
| 14 |
545102303 |
ASSY STARTER CUP Price: $14.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 15 |
545180844 |
KIT STARTER This part replaces 530059800. Price: $19.99 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
530095646 |
FUEL PICK-UP ASSY Price: $5.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 17 |
545081897 |
KIT FUEL LINE Price: $14.99 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
576153201 |
REAR SHROUD ORANGE This part replaces 530057851. Price: $11.99 |
| 21 |
71-4340 |
WASHER Price: $15.47 |
| 22 |
530016448 |
SCREW Price: $2.99 |
| 22 |
68-7010 |
FLANGE Price: $306.32 |
| 23 |
545029901 |
KIT ROPE Price: $6.99 |
| 23 |
71-4330 |
SEAL Price: $36.26 |
| 24 |
530150318 |
STARTER HANDLE GRAY Price: $4.99 |
| 24 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 24 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 26 |
254-90 |
BEARING-CUP Price: $11.29 |
| 26 |
545029603 |
STARTER HOUSING Price: $14.99 |
| 27 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 27 |
545008015 |
SPRING STARTER This part replaces 545029801. Price: $6.99 |
| 28 |
545029701 |
KIT STARTER PULLEY Price: $14.99 |
| 28 |
86-9610 |
UPPER HOUSING SUB ASM Price: $1,155.01 |
| 29 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 29 |
530016468 |
SCREW Price: $2.99 |
| 30 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 31 |
530059780 |
ISOLATOR FUEL TANK Price: $4.99 |
| 32 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 32 |
530058982 |
BOLT MUFFLER Price: $2.99 |
| 33 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 33 |
530015496 |
SCREW-10-16 X 1/2 HI-LO Price: $2.99 |
| 34 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 34 |
530150440 |
SHIELD HEAT Price: $5.99 |
| 35 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 35 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 36 |
43-6840 |
HOUSING-LOWER Price: $1,467.48 |
| 36 |
576215001 |
KIT MUFFLER GUARD HVA This part replaces 545104901. Price: $12.99 |
| 37 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 38 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 38 |
574031502 |
KIT MUFFLER W/CATALYST This part replaces 545057501. Price: $34.99 |
| 39 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 40 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 40 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 41 |
545046701 |
IGNITION MODULE MBU-7 Price: $49.99 |
| 41 |
72-9420 |
VENT Price: $6.85 |
| 42 |
3217-9 |
NUT-HH Price: $0.37 |
| 42 |
530039227 |
ASSY MODULE LEAD WIRE Price: $6.99 |
| 43 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 43 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 44 |
24-9830-01 |
AXLE SUPPORT ASM This part replaces 24-9830. Price: $83.43 |
| 44 |
530016463 |
WASHER CLUTCH Price: $5.99 |
| 45 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 45 |
530094189 |
WASHER-CLUTCH Price: $5.99 |
| 46 |
323-6 |
SCREW-HH Price: $0.66 |
| 46 |
530016469 |
SCREW Price: $3.99 |
| 47 |
530016470 |
SCREW Price: $3.99 |
| 48 |
530015768 |
LOCKNUT-HEX 10-24 Price: $3.99 |
| 49 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 50 |
545017501 |
FAN HSG ASSY Price: $17.99 |
| 52 |
525472901 |
KIT CLUTCH ASSY This part replaces 545050405. Price: $10.99 |
| 53 |
530057852 |
SPACER FLYWHEEL Price: $8.99 |
| 54 |
530039242 |
FLYWHEEL Price: $29.99 |
| 56 |
545013401 |
BEARING RADIAL BALL (6201) Price: $5.99 |
| 57 |
545030001 |
KIT CRANKSHAFT ASSY Price: $49.99 |
| 58 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 59 |
575227901 |
RING PISTON This part replaces 530019283. Price: $5.99 |
| 62 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 64 |
530057846 |
COVER-AIR BOX Price: $7.99 |
| 65 |
530059796 |
KNOB ASSY AIRBOX COVER Price: $4.99 |
