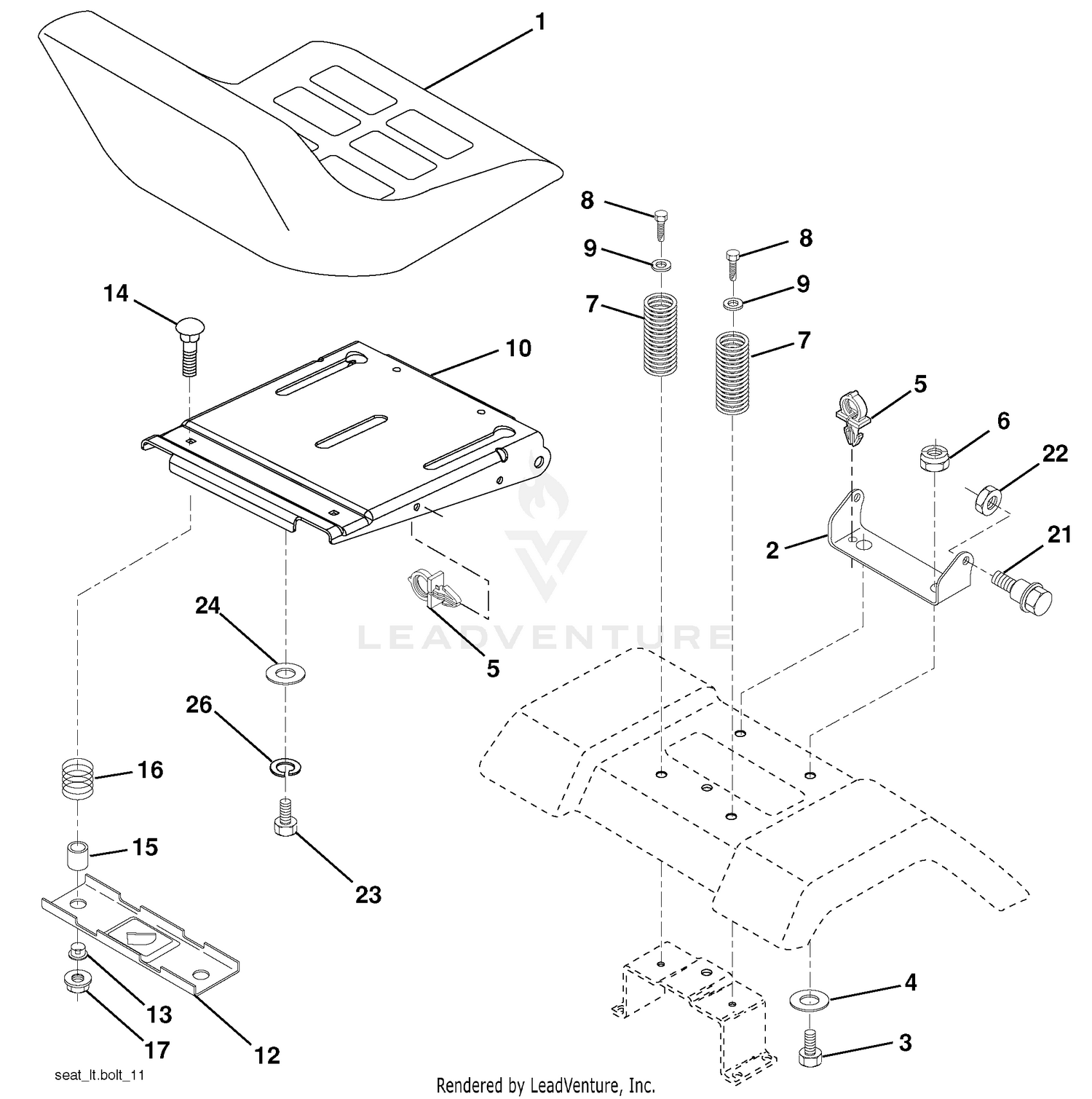

Seat

Seat

Parts (34)

RefPart NumberDescription
1 104-1248 ROPS ASM Price: $1,744.78
1 188704 Seat Price: Call Us
2 180166 Bracket Seat Pivot Price: Call Us
2 3256-26 WASHER-FLAT Price: $0.39
3 3253-7 WASHER-LOCK Price: $0.27
3 71110616 Bolt Hex 3/8 - 16 x 1 Price: Call Us
4 19131610 Washer 13/32 x 1 x10 Ga. Price: Call Us
4 325-5 SCREW-HH Price: $1.20
5 145006 Clip Push-In Hinged Price: Call Us
6 73800600 Nut Lock Hex w/Ins 3/8 - 16 Price: Call Us
7 104-1411 GUARD-STABILIZER Price: $4.27
7 124181X Spring Seat Cprsn 2 250 Blk Zi Price: Call Us
8 17000616 Screw 3/8-16 x 1.5 Price: Call Us
8 99-6938-03 BRACKET-TIPPER Price: $41.21
9 19131614 Washer 13/32 x 1 x 14 Ga. Price: Call Us
9 3234-1 SCREW-HHF Price: $1.62
10 195696 Pan Asm. Seat Price: Call Us
10 98-3900-03 DISCONTINUED Price: Call Us
11 75-5390 ROLLER Price: $56.69
12 174648 Bracket Pnt Mounting Switch Price: Call Us
12 75-5400 PIN-ROLLER Price: $26.06
13 121248X Bushing Snap Blk Nyl Price: Call Us
13 32151-61 RING-RETAINING Price: $2.39
14 72050412 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 Price: Call Us
15 134300 Spacer Split .28 x .96 Price: Call Us
16 121250X Spring Cprsn Price: Call Us
16 98-3928 CLAMP-HOSE Price: $13.58
17 104-1471-03 SADDLE ASM Price: $76.97
17 123976X Nut Lock 1/4 Lge Flg Price: Call Us
18 3231-2 BOLT-CARR Price: $0.81
21 171852 Bolt Shoul der 5/16-18 unc-2A Price: Call Us
22 73800500 Nut Lock Hex w/Ins 5/16 - 18 Price: Call Us
23 71110814 Bolt Hex Price: Call Us
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us
