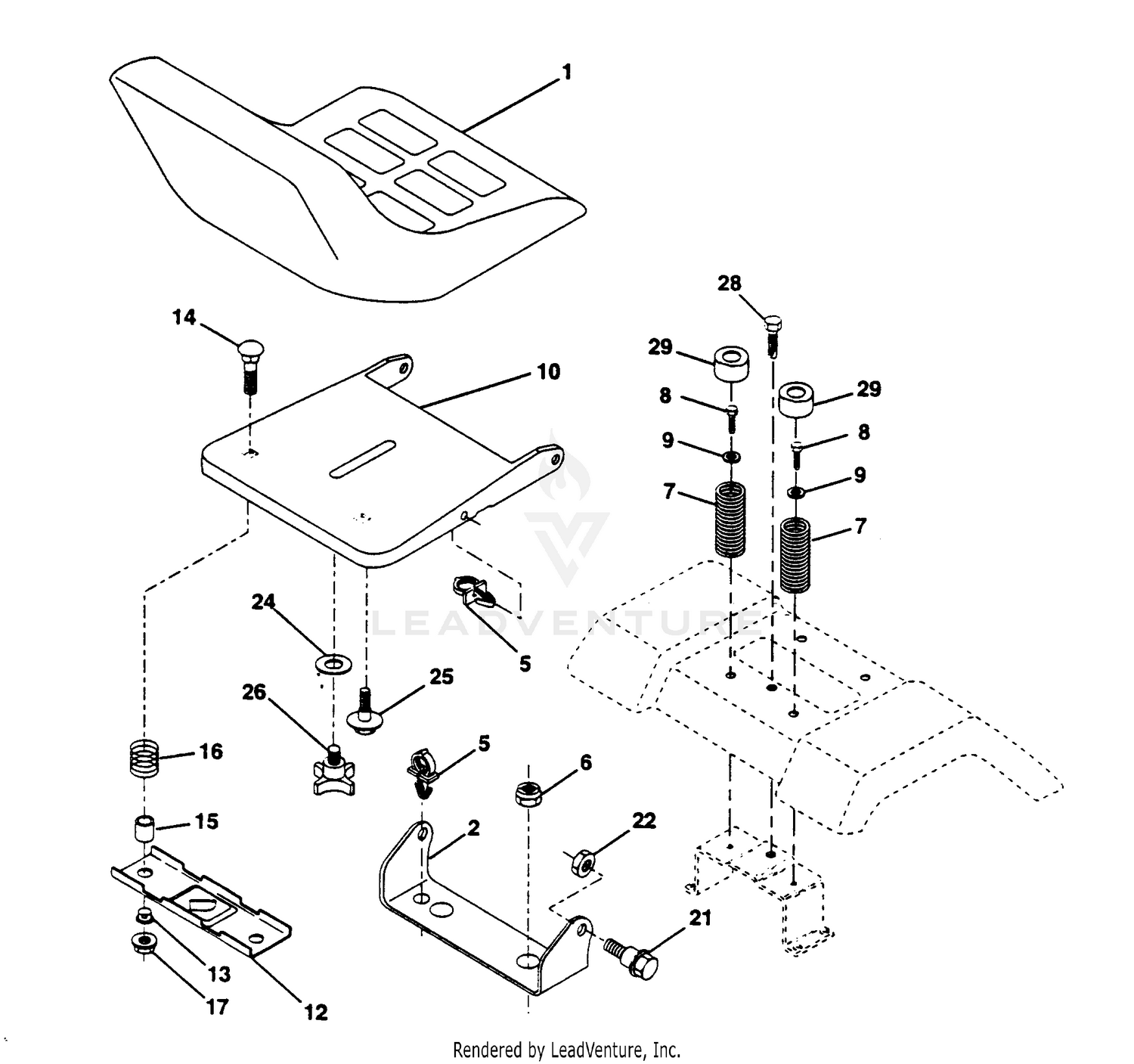

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532127440. Price: $180.99 |
| 1 |
83-0020 |
SWITCH-IGNITION Price: $56.91 |
| 2 |
532140551 |
Bracket Pivot Seat 8 720 Price: $3.99 |
| 2 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 3 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 5 |
532140407 |
Clip Push-in .375 x .250 Price: $3.99 |
| 6 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 6 |
873680600 |
Nut Crownlock 3/8-16 Unc Price: $1.99 |
| 7 |
539110300 |
SRPING.SEAT This part replaces 532124181. Price: $2.99 |
| 7 |
98-0991 |
CONTROL-CHOKE AND THROTTLE Price: $49.18 |
| 8 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 8 |
95-5806 |
BRACKET-MOUNTING Price: $28.01 |
| 9 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 9 |
93-2190 |
AIR CLEANER ASM Price: $217.17 |
| 10 |
46-7510 |
HOOD-INLET, AIR Price: $102.83 |
| 10 |
532195530 |
PAN, SEAT This part replaces 532140552. Price: $14.99 |
| 11 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 12 |
532174648 |
Bracket Mounting Switch This part replaces 532121246. Price: $4.99 |
| 12 |
92-8977 |
HOSE-CLEANER, AIR Price: $67.70 |
| 13 |
237-164 |
GROMMET Price: $16.34 |
| 13 |
532121248 |
Bushing Snap Blk Nyl 50 Id Price: $3.99 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $2.99 |
| 14 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 15 |
532121249 |
Spacer Split 28x 88 Yel Zinc Price: $3.99 |
| 15 |
66-0120 |
KNOB Price: $5.53 |
| 16 |
532123740 |
Spring Cprsn 1 310 Blk Pnt Price: $3.99 |
| 16 |
98-0975 |
DECAL-PANEL, CONTROL Price: $51.36 |
| 17 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 17 |
98-0984 |
DECAL-LIFT Price: $8.51 |
| 18 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 19 |
93-7442 |
DECAL-LEVER, PARKING Price: $21.99 |
| 20 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 21 |
532139888 |
Bolt Shoulder 5/16-18 Unc Blkz Price: $2.99 |
| 22 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 24 |
819171912 |
Washer 17/32 X 1-3/16 X 12 Ga Price: $3.99 |
| 25 |
532127018 |
Bolt Shoulder 5/16-18 X 62 Price: $3.99 |
| 26 |
532166369 |
Knob Seat Adj. Wingnut This part replaces 532120068. Price: $4.99 |
| 28 |
817490608 |
Screw Thdrol 3/8 - 16 x 1/2 Ty-TT Price: $3.99 |
