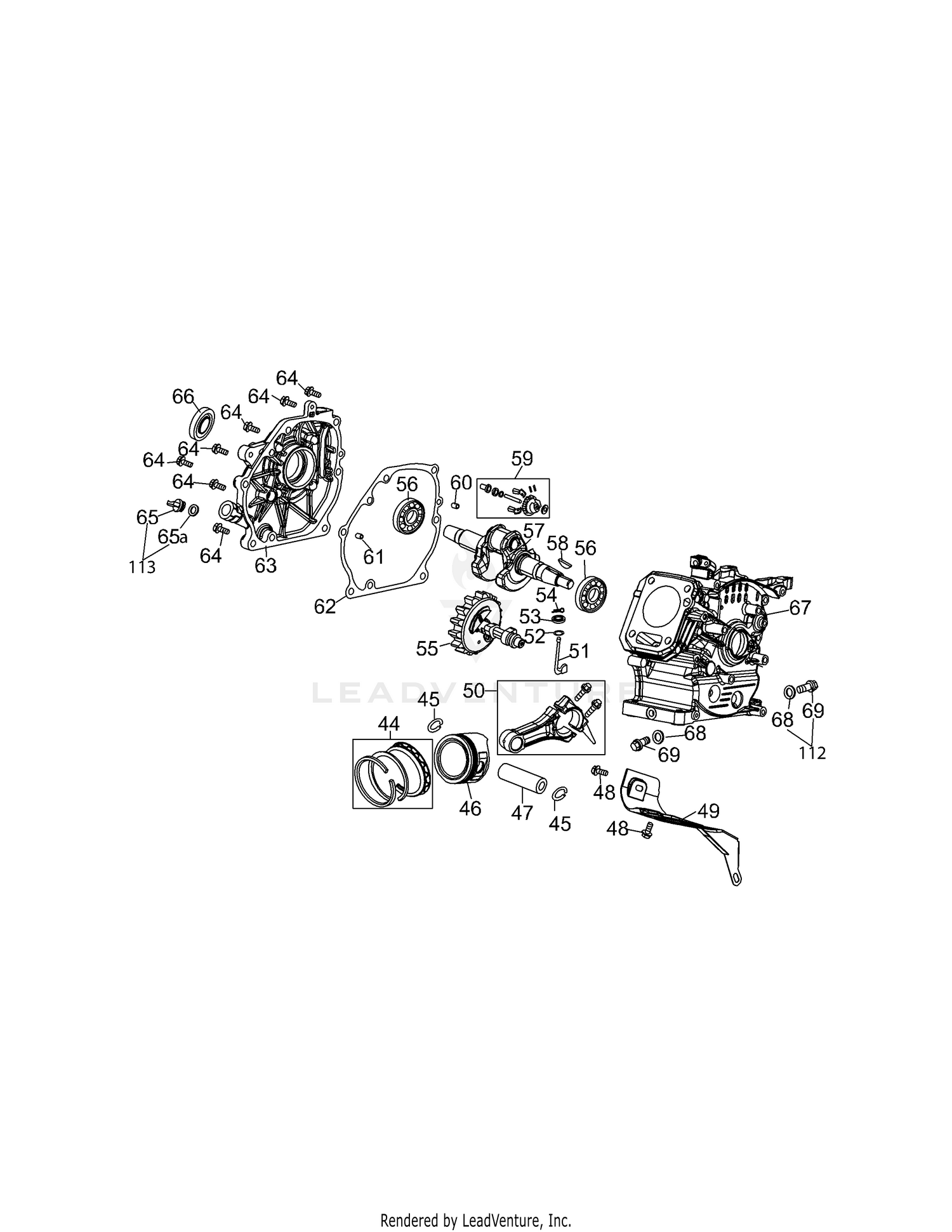

| Ref | Part Number | Description |
|---|
| 1 |
69-2580 |
DISCONTINUED Price: Call Us |
| 3 |
61-4990 |
RING-RETAINING Price: $21.65 |
| 4 |
69-2570 |
HEAD Price: $255.06 |
| 10 |
60-9770 |
DISCONTINUED Price: Call Us |
| 11 |
60-9760 |
NUT Price: $6.11 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 44 |
751P12111A |
PISTON RING SET This part replaces 951-11253. Price: $5.82 |
| 45 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 46 |
951-12007 |
Piston Price: $31.34 |
| 47 |
951-11633 |
PISTON PIN Price: $6.66 |
| 48 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 49 |
951-11113 |
Air Shield Price: $8.11 |
| 50 |
751P11573A |
CONNECTING ROD This part replaces 951-11573. Price: $8.87 |
| 51 |
951-14053 |
Governor Shaft This part replaces 951-11356. Price: $13.94 |
| 52 |
736-04461 |
Washer 5.2×1.9 Price: $3.50 |
| 53 |
951-11902A |
OIL SEAL This part replaces 951-11574. Price: $3.36 |
| 54 |
714-04078 |
Cotter Pin This part replaces 714-04074. Price: $3.66 |
| 55 |
951-11575 |
CAMSHAFT ASSEMBLY Price: $57.92 |
| 56 |
951-11369 |
Radial Ball Bearing, 6205 Price: $30.42 |
| 57 |
951-12160 |
Crankshaft Assembly Price: $121.65 |
| 58 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 59 |
751P11576A |
GOVERNOR GEAR This part replaces 951-11576. Price: $3.00 |
| 60 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 61 |
715-04089 |
DOWEL PIN Not Available Price: |
| 62 |
751P11371B |
CRANKCASE GASKET This part replaces 951-11371. Price: $3.07 |
| 63 |
751P17706 |
CRANKCASE COVER This part replaces 951-12125. Price: $29.04 |
| 64 |
710-04932 |
Bolt M8×32 Price: $3.66 |
| 65 |
951-11283 |
Oil Fill Plug Asm This part replaces 951-11377. Price: $6.11 |
| 65a |
951-11577 |
O-RING 15.8 x 2.5 Price: $3.53 |
| 66 |
951-11578 |
OIL SEAL 25 x 41.25 x 6 Price: $13.04 |
| 68 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 69 |
710-04906 |
Oil Drain Plug Price: $5.86 |
| 112 |
951-10370 |
Oil Drain Plug & Washer Assembly Price: $7.96 |
