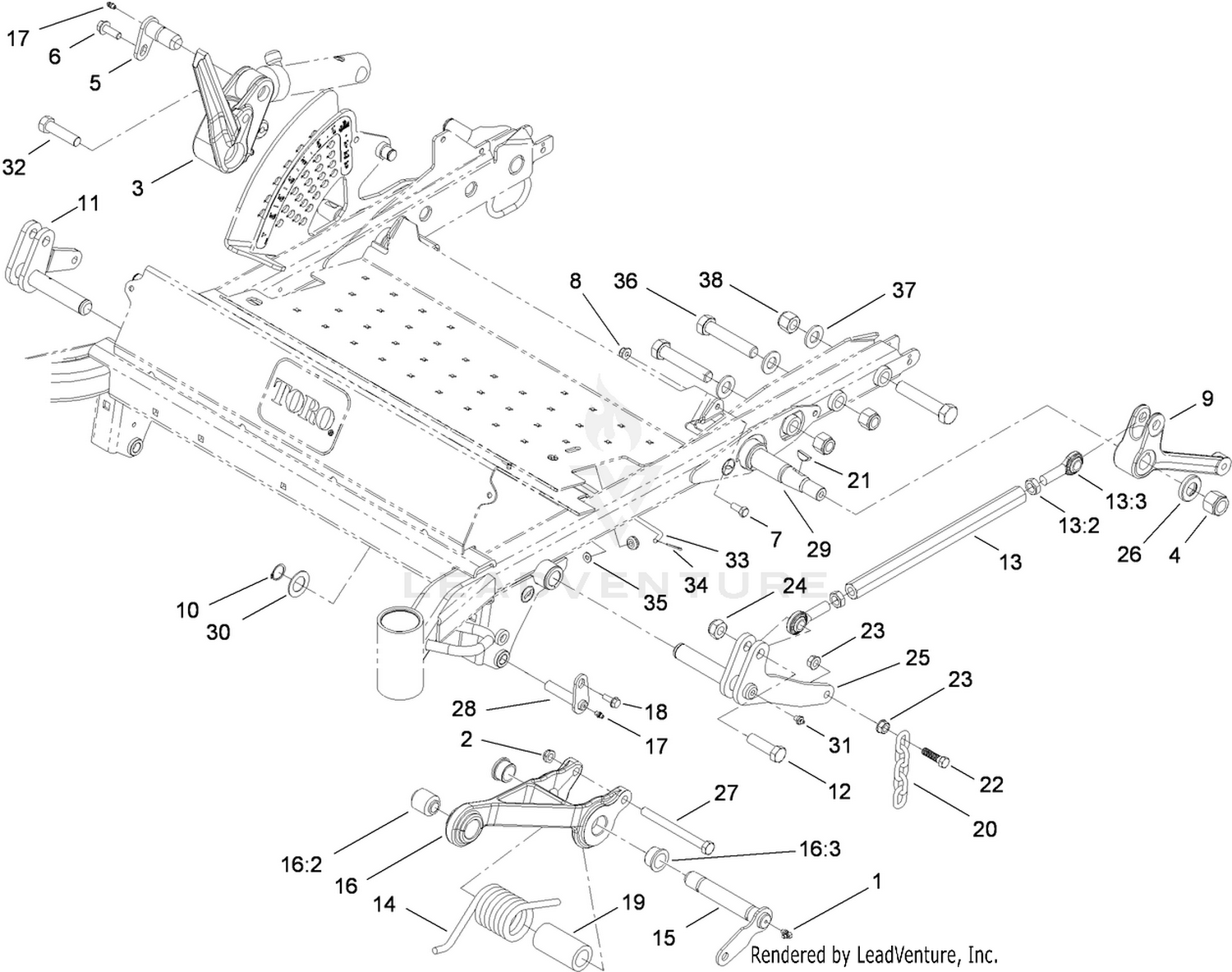

| Ref | Part Number | Description |
|---|
| 1 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 2 |
3296-45 |
NUT-HEX Price: $3.79 |
| 3 |
112-1635 |
ARM-LIFT, RH Price: $163.14 |
| 4 |
94-8000 |
NUT-HEX Price: $2.65 |
| 5 |
98-2654 |
PIN-PIVOT Price: $77.85 |
| 6 |
3234-15 |
SCREW-HHF Price: $1.97 |
| 7 |
323-5 |
SCREW-HH Price: $0.41 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
112-1637 |
ARM-LIFT, LH Price: $122.56 |
| 10 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 11 |
110-9820-03 |
LIFT-RH Price: $146.50 |
| 12 |
327-22 |
SCREW-HH Price: $4.41 |
| 13 |
114-4059 |
LINK ASM Price: $91.43 |
| 14 |
110-9828 |
SPRING-TORSION Price: $98.42 |
| 15 |
120-5570 |
PIN-RETAINER This part replaces 112-1622. Price: $24.69 |
| 16 |
112-1625 |
PULL LINK ASM Price: $212.18 |
| 17 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 19 |
110-9845 |
SPACER-PLAIN Price: $34.73 |
| 20 |
103-1898 |
SCREW-HH Price: $1.79 |
| 21 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 22 |
1-633447 |
CHAIN-LIFT, DECK Price: $9.99 |
| 23 |
32128-37 |
NUT-HF Price: $3.63 |
| 24 |
3296-61 |
NUT-LOCK Price: $14.99 |
| 25 |
110-9818-03 |
LIFT-LH Price: $146.50 |
| 26 |
112-9585 |
WASHER-HARDENED Price: $15.28 |
| 27 |
325-22 |
SCREW-HH Price: $4.26 |
| 28 |
112-1602 |
PIN-RETAINER Price: $60.94 |
| 29 |
112-9522-03 |
SHAFT-LIFT, DECK Price: $245.33 |
| 30 |
69-9010 |
WASHER Price: $1.83 |
| 31 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 32 |
327-7 |
SCREW-HH Price: $5.69 |
| 33 |
110-9847 |
ROD-PROP Price: $29.42 |
| 34 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 36 |
328-7 |
SCREW-HH Price: $4.00 |
| 37 |
92-5836 |
WASHER Price: $5.34 |
