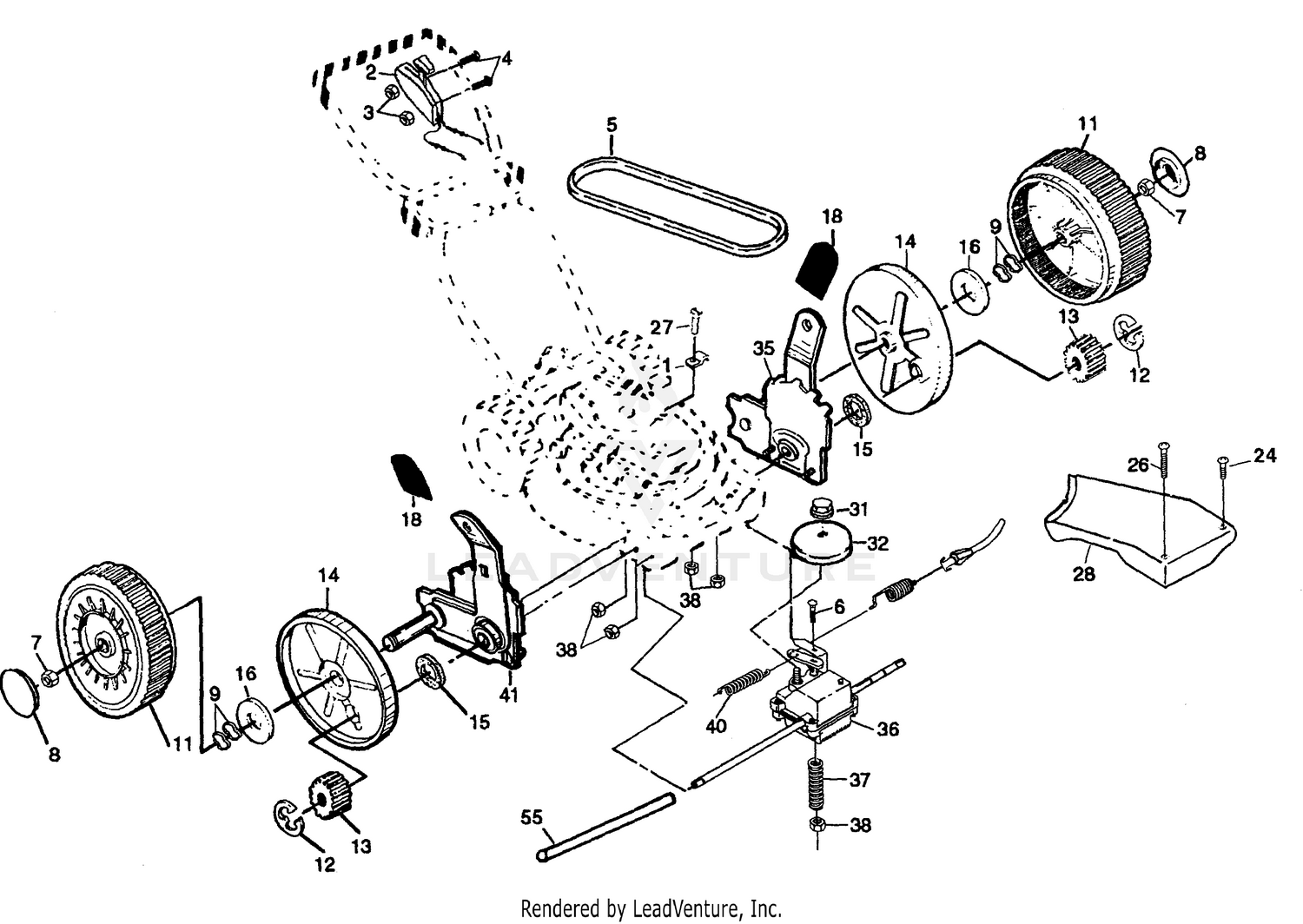

| Ref | Part Number | Description |
|---|
| 1 |
532087930 |
GUIDE CLIP PM Price: $5.99 |
| 2 |
100-3769 |
PROTECTOR-BEARING Price: $41.94 |
| 2 |
532143915 |
DRIVE CONTROL Price: $58.53 |
| 3 |
100-3809 |
CAP-PROTECTOR, BEARING Price: $6.39 |
| 3 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 4 |
328-25 |
SCREW-HH Price: $4.07 |
| 4 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 5 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 5 |
532157769 |
KIT.SERVICE.BELT/SPRING. This part replaces 532137078. Price: $14.99 |
| 6 |
532700875 |
BOLT Price: $3.99 |
| 6 |
67-7250 |
SPACER-RING Price: $3.32 |
| 7 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 8 |
532077400 |
CAP.HUB.BLACK.WALK Price: $4.99 |
| 8 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 9 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 9 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 10 |
3220-7 |
NUT-JAM Price: $4.09 |
| 11 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 11 |
532143596 |
WHEEL ASSEMBLY Price: $35.99 |
| 12 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532137054 |
PINION GEAR Price: $4.99 |
| 13 |
67-9410 |
WASHER Price: $2.04 |
| 14 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532088080. Price: $5.99 |
| 15 |
532088118 |
WASHER Price: $3.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 18 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $4.99 |
| 24 |
532149746 |
SCREW.SLOT.TORX. This part replaces 532136797. Price: $5.99 |
| 26 |
532087866 |
SCREW PM Price: $3.90 |
| 27 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 28 |
532700599 |
DRIVE COVER Price: $7.99 |
| 31 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 32 |
532194126 |
DRIVEN PULLEY This part replaces 532137052. Price: $9.99 |
| 35 |
532151009 |
WHEEL ADJUSTER ASSY (LEFT) This part replaces 532142811. Price: $20.99 |
| 36 |
532702510 |
KIT GEAR CASE .22SD Price: $114.14 |
| 37 |
532137090 |
SPRING.EXTENSION Price: $4.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 40 |
532075192 |
SPRING Price: $4.99 |
| 41 |
532151010 |
WHEEL ADJUSTER KIT RH This part replaces 532142810. Price: $30.99 |
| 55 |
532086012 |
DRV SHAFT TUBE PM Price: $5.46 |
