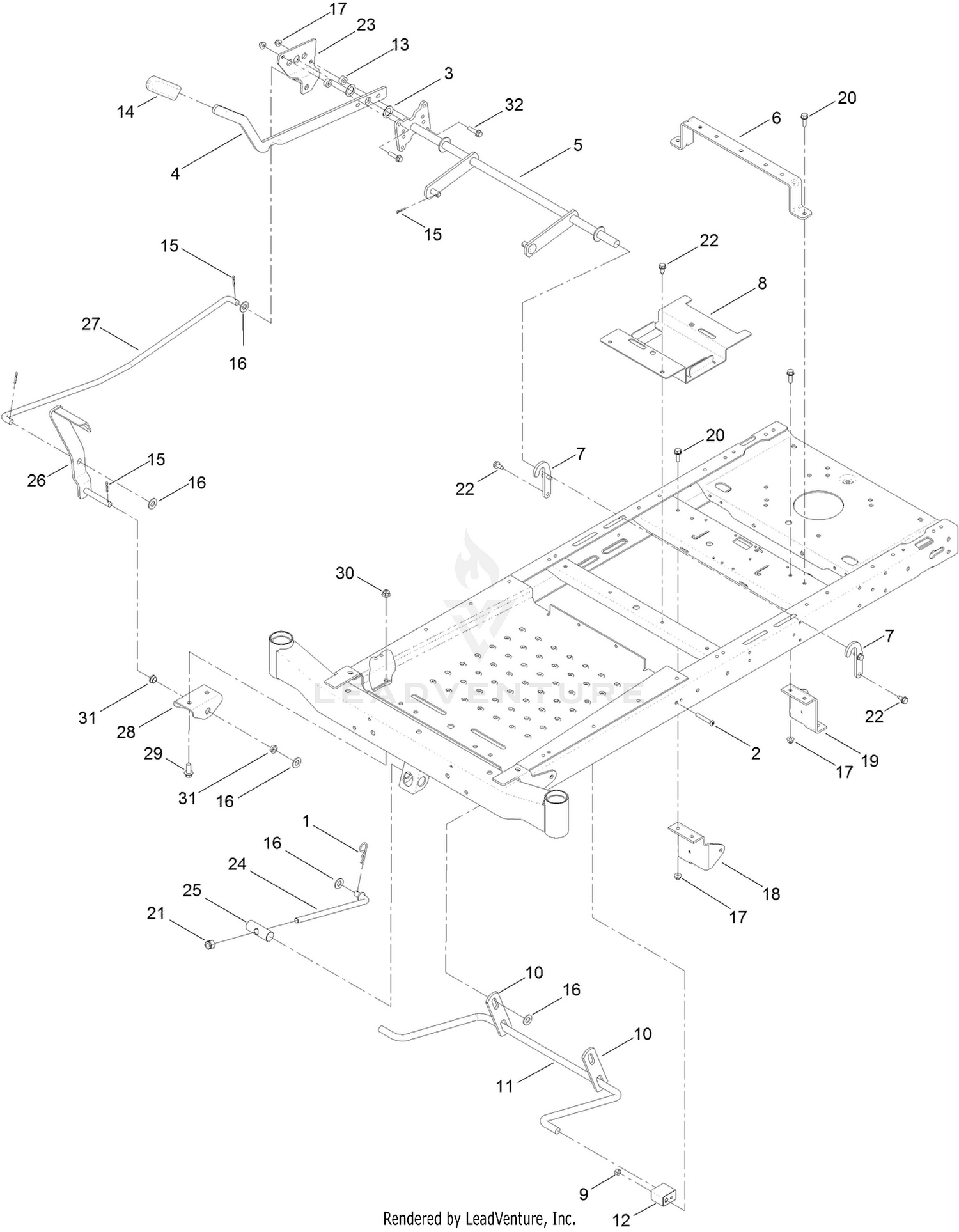

| Ref | Part Number | Description |
|---|
| 1 |
1-806005 |
PIN-COTTER Price: $2.39 |
| 2 |
120-5499 |
SCREW-HSBH Price: $1.27 |
| 3 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 4 |
119-3427-03 |
LEVER-LIFT Price: $15.92 |
| 5 |
132-6878-03 |
LIFT-DECK (WIDE) This part replaces 119-3424-03. Price: $36.01 |
| 6 |
117-7337-03 |
BRACE-SEAT, REAR Price: $14.45 |
| 7 |
138-7233 |
BRACKET-LIFT This part replaces 119-8875. Price: $3.78 |
| 8 |
131-0914-03 |
BRACKET-BATTERY This part replaces 119-3406-03. Price: $21.32 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
138-7235 |
LINK-LIFT This part replaces 108-7840. Price: $4.88 |
| 11 |
138-7239 |
ARM-LIFT, REAR (WIDE) This part replaces 119-3347. Price: $23.86 |
| 12 |
108-7845 |
BLOCK-PIVOT Price: $11.42 |
| 13 |
121-1759 |
SPACER Price: $1.59 |
| 14 |
1-633268 |
GRIP-LEVER Price: $13.99 |
| 15 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 16 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 18 |
120-7936-01 |
MOUNT-HYDRO, FRONT (RH) Price: $19.75 |
| 19 |
120-7937-01 |
MOUNT-HYDRO, FRONT (LH) Price: $19.75 |
| 20 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 21 |
3296-19 |
NUT-HEX Price: $0.65 |
| 22 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 23 |
120-2275 |
PLATE-FOOTLIFT Price: $20.88 |
| 24 |
131-3945 |
ROD-MOUNT, DECK This part replaces 104-8047. Price: $28.01 |
| 25 |
119-8810 |
PIN-PIVOT Price: $11.11 |
| 26 |
120-2276-03 |
PEDAL Price: $48.21 |
| 27 |
120-2242 |
ROD-FOOTLIFT Price: $15.25 |
| 28 |
120-2294-03 |
BRACKET-FOOTLIFT Price: $8.84 |
| 29 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 30 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 31 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
