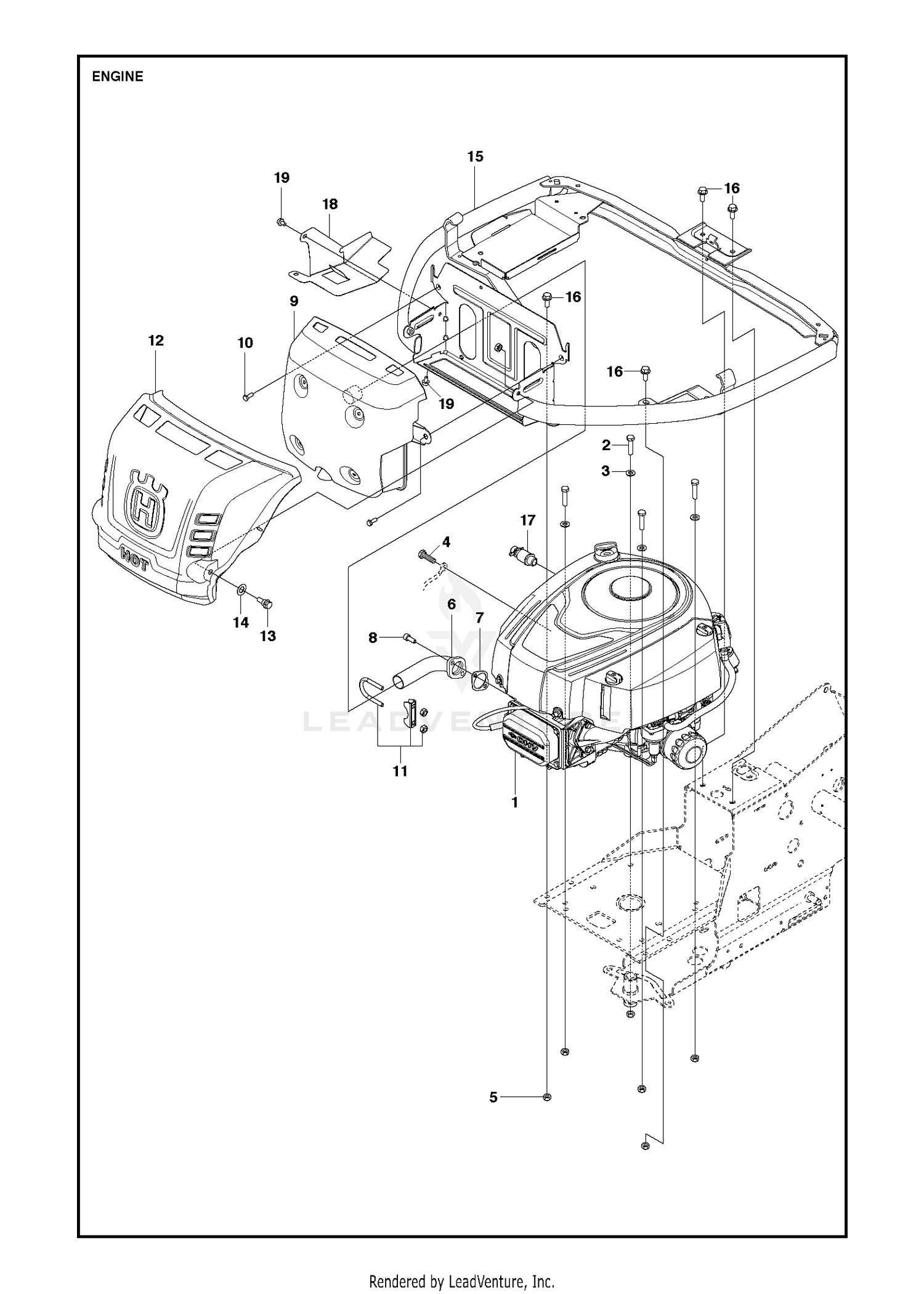

ENGINE
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 591075002 | NEEDS DESCRIPTION Price: Call Us |
| 1 | 99-6810 | SCREW-HHF Price: $3.09 |
| 2 | 324-5 | SCREW-HH Price: $0.54 |
| 2 | 725245751 | SCREW Price: $4.99 |
| 3 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 4 | 340-2 | FITTING-STRAIGHT Price: $11.43 |
| 4 | 506556301 | BOLT Price: $3.99 |
| 5 | 340-4 | FITTING-STRAIGHT Price: $11.58 |
| 5 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 6 | 120-8935-03 | BRACKET-FAN Price: $221.61 |
| 6 | 578054801 | Price: Call Us |
| 7 | 140-6482 | HUB-FAN This part replaces 117-2364. Price: $160.95 |
| 8 | 114-3825 | FAN Price: $353.82 |
| 8 | 506556301 | BOLT Price: $3.99 |
| 9 | 340-70 | NUT-LOCK Price: $2.10 |
| 9 | 577813601 | MUFFLER Price: $249.99 |
| 10 | 340-127 | NUT-BULKHEAD Price: $2.24 |
| 10 | 725236461 | SCREW Price: $2.99 |
| 11 | 121-1518 | SHIM-SUPPORT Price: $5.04 |
| 11 | 501152201 | CLAMP ASSY EXHAUST Price: $2.99 |
| 12 | 121-1554 | TUBE-HYD Price: $75.61 |
| 12 | 577818502 | HEAT SHIELD Price: $84.99 |
| 13 | 121-1555 | TUBE ASM Price: $62.39 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 14 | 121-1553 | TUBE-HYD Price: $79.36 |
| 14 | 506839401 | SPRINGWASHER Price: $3.99 |
| 15 | 115-8486 | SCREW-HH Price: $0.68 |
| 15 | 577849104 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 506570104 | BOLT Price: $4.99 |
| 16 | 80-6990 | WASHER-HARDENED Price: $3.06 |
| 17 | 3296-48 | NUT-LOCK, NI Price: $0.37 |
| 17 | 532428287 | VALUE.OIL.DRAIN Price: $14.99 |
| 18 | 104-7201 | NUT-HF Price: $0.69 |
| 18 | 579529301 | NEEDS DESCRIPTION Price: Call Us |
| 19 | 117-4769 | HYD MOTOR ASM Price: $932.88 |
| 19 | 535475212 | SCREW EHHFM Price: $2.99 |
| 20 | 340-129 | FITTING-ELBOW, 90 DEG Price: $99.81 |
