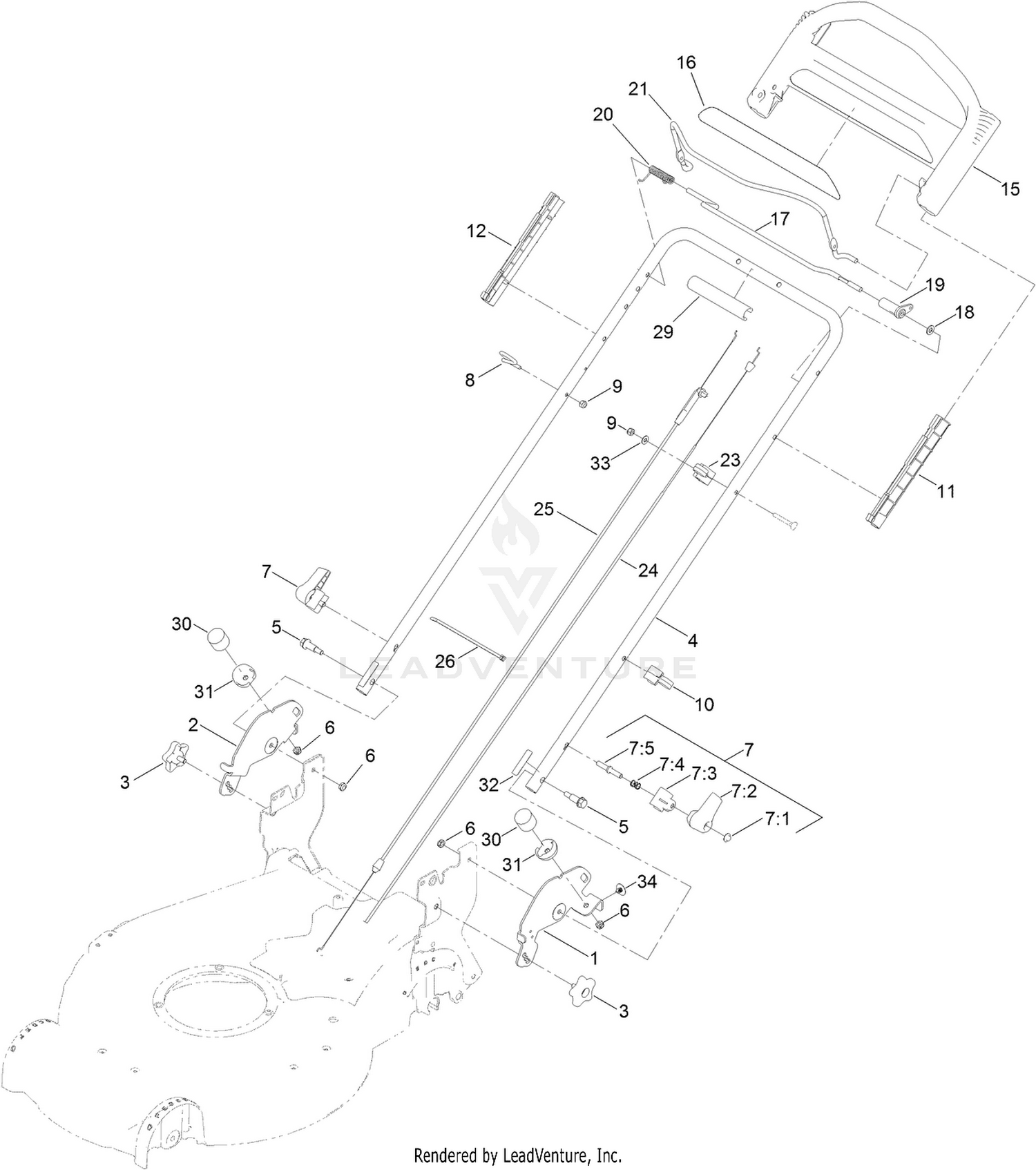

Handle Assembly
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-3831-03 | BRACKET-FLOAT, LH Price: $14.99 |
| 2 | 137-4838-03 | BRACKET-FLOAT, RH Price: $14.99 |
| 3 | 137-4844 | KNOB-HANDLE Price: $2.29 |
| 4 | 140-3824-05 | HANDLE-UPPER Price: $76.99 |
| 5 | 140-3759 | BOLT-SHOULDER, HHF This part replaces 130-2344. Price: $1.19 |
| 6 | 3296-47 | NUT-LOCK, NI Price: $3.59 |
| 7 | 138-3249 | QUICK RELEASE ASM Price: $10.99 |
| 8 | 86-9671 | GUIDE-ROPE Price: $3.99 |
| 9 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 10 | 114-7988 | GUIDE-CABLE Price: $2.59 |
| 11 | 105-6842 | GUIDE-LH Price: $7.99 |
| 12 | 105-6841 | GUIDE-RH Price: $7.99 |
| 15 | 104-8678 | HANDLE-CONTROL Price: $78.99 |
| 16 | 140-3821 | DECAL Price: $4.89 |
| 17 | 136-7150 | BAR-CONTROL, TRACTION Price: $15.99 |
| 18 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 19 | 99-1589 | LEVER-TRACTION Price: $7.19 |
| 20 | 136-7166 | SPRING-TORSION Price: $2.99 |
| 21 | 131-0880-03 | BAIL-BRAKE Price: $23.99 |
| 23 | 136-5864 | ANCHOR-CABLE Price: $2.69 |
| 24 | 117-9389 | CABLE-TRACTION Price: $37.99 |
| 25 | 117-5900 | CABLE-BRAKE Price: $39.99 |
| 26 | 614249 | TIE-CABLE Price: $0.79 |
| 29 | 131-4551 | HANDLE-COVER Price: $1.39 |
| 30 | 137-4803 | BUMPER-RUBBER Price: $4.19 |
| 31 | 137-9100 | COVER-BUMPER Price: $0.99 |
| 32 | 140-3827 | DECAL-FLEX Price: $1.19 |
| 33 | 3256-1 | WASHER-FLAT Price: $0.39 |
