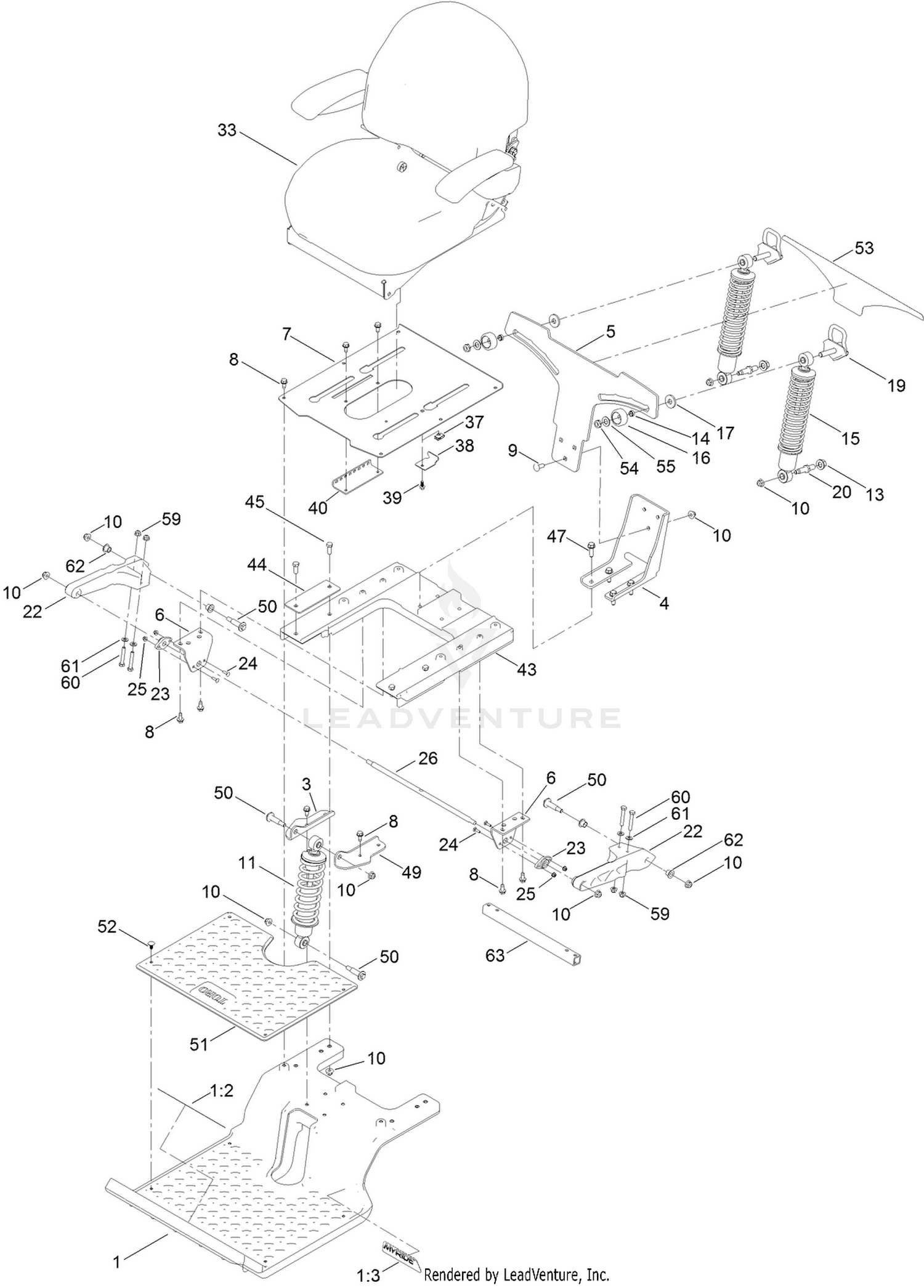

| Ref | Part Number | Description |
|---|
| 1 |
136-9191 |
SUBFRAME-FRONT Price: $190.49 |
| 3 |
133-9319-03 |
BRACKET-SHOCK MOUNT, UPPER (RH) Price: $10.35 |
| 4 |
133-4442-03 |
BRACKET-MOUNT, LOWER Price: $40.64 |
| 5 |
133-4462-03 |
BRACKET-MOUNTING, SHOCK Price: $44.46 |
| 6 |
137-1967-03 |
BRACKET-MOUNT, SWING ARM Price: $5.91 |
| 7 |
133-7029-03 |
PAN-SEAT Price: $44.41 |
| 8 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 9 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 11 |
133-5192 |
SHOCK/SPRING ASM Price: $84.79 |
| 13 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 14 |
133-5109 |
BEARING-SLEEVE Price: $2.29 |
| 15 |
133-5193 |
SHOCK/SPRING ASM Price: $84.79 |
| 16 |
136-5636 |
KNOB-LOCK, CAM Price: $7.75 |
| 17 |
131-4699 |
WASHER-PLASTIC Price: $3.13 |
| 19 |
133-5105 |
CAM LOCK ASM Price: $24.13 |
| 20 |
133-4401 |
BOLT-SHOULDER Price: $8.85 |
| 22 |
136-8979 |
TRAILING ARM Price: $21.60 |
| 23 |
127-0146 |
BEARING-FLANGE Price: $5.32 |
| 24 |
3229-20 |
SCREW-CARR Price: $0.80 |
| 25 |
120-4578 |
NUT-HF Price: $0.41 |
| 26 |
137-1968 |
ROD-PIVOT Price: $18.49 |
| 33 |
139-2367 |
SEAT ASM Price: $369.61 |
| 37 |
107069 |
CLIP Price: $1.79 |
| 38 |
138-7214 |
BRACKET-STOP, SEAT Price: $1.46 |
| 39 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 40 |
131-4008-03 |
BRACKET-LATCH, SEAT Price: $3.98 |
| 43 |
137-7031 |
SUBFRAME-REAR Price: $55.46 |
| 44 |
133-7089-03 |
PLATE-BACKER Price: $4.98 |
| 45 |
323-6 |
SCREW-HH Price: $0.66 |
| 47 |
32144-109 |
SCREW-THD Price: $1.29 |
| 49 |
133-9318-03 |
BRACKET-SHOCK MOUNT, UPPER (LH) Price: $10.35 |
| 50 |
136-7198 |
BOLT-SHOULDER Price: $1.49 |
| 51 |
133-5190 |
FLOORMAT Price: $44.46 |
| 52 |
117-2382 |
PLUG-PLASTIC Price: $0.69 |
| 53 |
133-5198 |
DECAL-ADJUSTMENT, RIDE Price: $12.68 |
| 54 |
3296-45 |
NUT-HEX Price: $3.79 |
| 55 |
3-6803 |
WASHER-ADJUSTING Price: $0.75 |
| 59 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 60 |
322-10 |
SCREW-HH Price: $0.70 |
| 61 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 62 |
125-5239 |
BUSHING-FLANGE Price: $4.21 |
