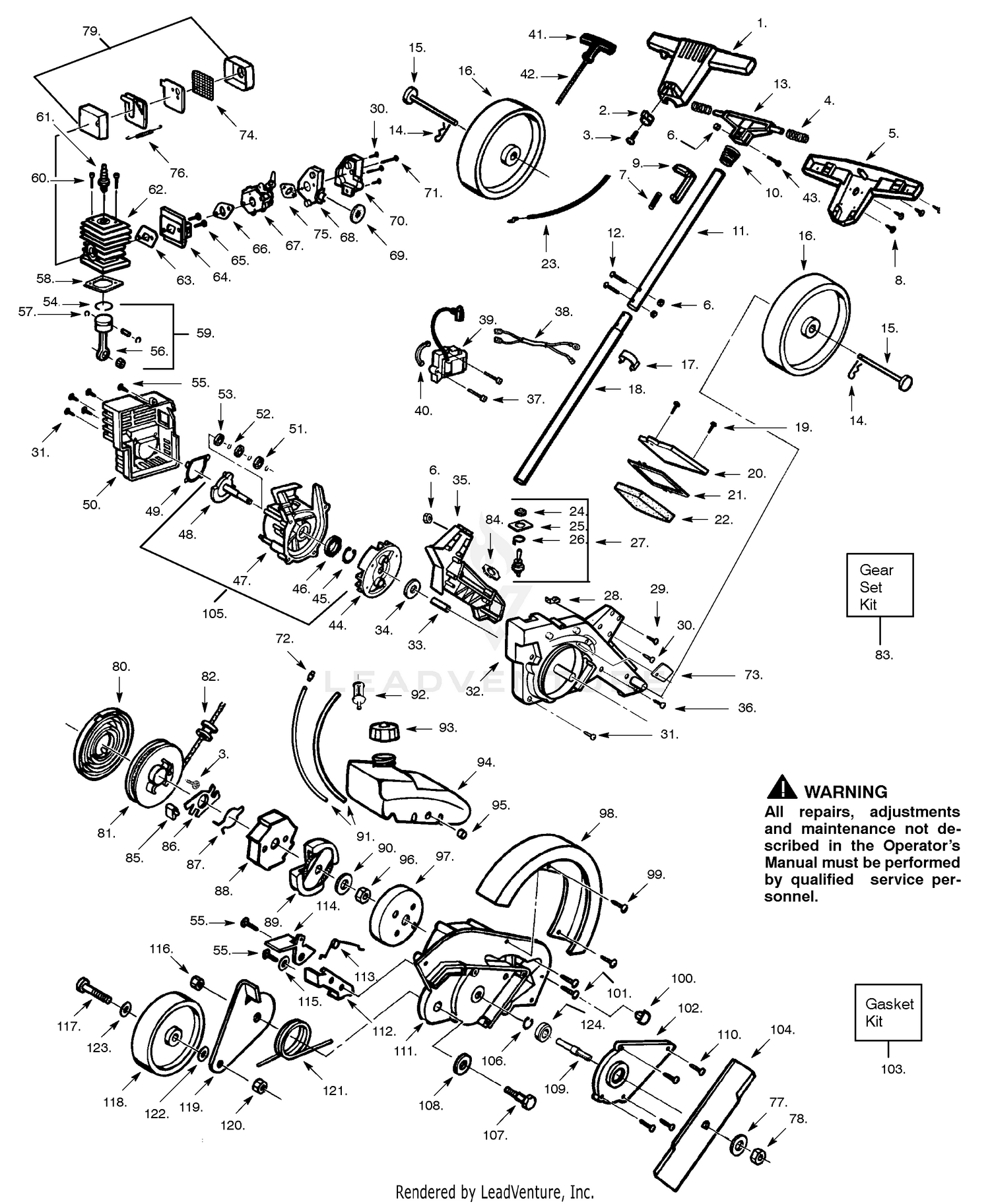

| Ref | Part Number | Description |
|---|
| 1 |
530036677 |
Upper Handle Price: $8.99 |
| 1 |
784106 |
Lever Housing Assy., Shift (Incl. Nos. 2 thru 7) Model 2307-B Price: Call Us |
| 2 |
530036985 |
Handle Eyelet Price: $1.99 |
| 2 |
792016 |
Ring-Snap Price: Call Us |
| 3 |
530016080 |
Screw Price: $1.99 |
| 3 |
792001 |
O Ring Price: Call Us |
| 4 |
530036981 |
Spring Isolator Price: $1.99 |
| 4 |
792049 |
Pin-Roll Price: Call Us |
| 5 |
530036676 |
Lower Handle Price: $6.99 |
| 5 |
784093 |
Housing-Shift Lever Price: Call Us |
| 6 |
530015768 |
Locknut-Coupling/Shaft Price: $1.99 |
| 6 |
784094 |
Keeper-Shift Lever Price: Call Us |
| 7 |
530036982 |
Throttle Spring Price: $1.99 |
| 7 |
784107 |
Lever, Shift Price: Call Us |
| 8 |
503210719 |
Screw-Handle Price: $1.99 |
| 8 |
784054 |
Rod Assy., Shift (Incl. Nos. 9 thru 12 24) Price: Call Us |
| 9 |
530036673 |
Throttle Trigger Price: Call Us |
| 9 |
792003 |
Spring Price: Call Us |
| 10 |
530036984 |
Handle Spring Price: $2.99 |
| 10 |
792004 |
Piston ASM Price: Call Us |
| 11 |
530095104 |
Upper Handle Tube Price: $11.99 |
| 11 |
784004 |
Shift Fork Price: Call Us |
| 12 |
530015999 |
Screw-Shaft Price: $1.99 |
| 12 |
784055 |
Rod, Shifter Price: Call Us |
| 13 |
530036983 |
Coupling-Handle Price: $2.99 |
| 13 |
784056 |
Rod Assy., Shift (Incl. Nos. 9, 10, 11, 14 24) Price: Call Us |
| 14 |
530016002 |
Bridgepin Price: $1.99 |
| 14 |
784057 |
Rod, Shifter Price: Call Us |
| 15 |
530015997 |
Axle Pin Price: $1.99 |
| 15 |
774163 |
Axle Price: Call Us |
| 16 |
530095126 |
Rear Wheel Price: $3.33 |
| 16 |
780042 |
Washer Price: Call Us |
| 17 |
530015982 |
Tube Clamp Price: $0.99 |
| 17 |
792056 |
Screw, Hex Hd. Cap Price: Call Us |
| 18 |
530095103 |
Lower Handle Tube Price: $11.99 |
| 18 |
792006 |
Lockwasher Price: Call Us |
| 19 |
530015983 |
Screw-Filter Cover Price: $1.99 |
| 19 |
778080 |
Gear, Ring Price: Call Us |
| 20 |
530036631 |
Air Filter Cover Type 3 Price: $1.99 |
| 20 |
530036632 |
Air Filter Cover Type 1 & 2 Price: $0.76 |
| 21 |
530036837 |
Gasket Price: $3.99 |
| 21 |
786052 |
Core, Body Price: Call Us |
| 22 |
530036664 |
Air Filter Foam Price: $1.99 |
| 22 |
778078 |
Gear, Pinion Price: Call Us |
| 23 |
530036674 |
Throttle Cable Price: $11.99 |
| 23 |
776029A |
Shaft Gear-Brake Price: Call Us |
| 24 |
530016038 |
Boot w/Nut Price: $3.99 |
| 24 |
792017 |
Ring-Snap Price: Call Us |
| 25 |
530053920 |
Assy-Gound Switch This part replaces 530038474. Price: $7.99 |
| 25 |
776026 |
Shaft Bearing Assy., Pinion (Incl. No. 26) Price: Call Us |
| 26 |
530037066 |
Grounding Terminal Price: $1.99 |
| 26 |
780018 |
Bearing Price: Call Us |
| 27 |
778034 |
Gear Cluster Assy. (Incl. No. 28) Price: Call Us |
| 28 |
530015922 |
Speed Nut Price: $1.99 |
| 28 |
780053 |
Bushing Price: Call Us |
| 29 |
530015774 |
Screw-Fan Housing Price: $1.99 |
| 29 |
784074 |
Stop-Shifter Price: Call Us |
| 30 |
530015886 |
Screw-Fan Housing Price: $1.99 |
| 30 |
788023 |
Gasket-Case Cover Price: Call Us |
| 31 |
530016386 |
Screw-Fan Housing/Shroud Price: $5.99 |
| 31 |
788022 |
Gasket-Lever Housing Price: Call Us |
| 32 |
778050 |
Gear, Shifting (3rd 4th) Price: Call Us |
| 33 |
530036927 |
Flywheel Spacer Price: $1.99 |
| 33 |
778020 |
Gear, Shifting Price: Call Us |
| 34 |
530015828 |
Washer Price: $1.99 |
| 34 |
778079 |
Gear, Side Price: Call Us |
| 35 |
530038301 |
Axle Cover Price: $5.99 |
| 35 |
778037 |
Gear-Spur Price: Call Us |
| 36 |
530015940 |
Screw-Fan Housing Price: $1.99 |
| 36 |
778049 |
Gear Cluster Assy. (Incl.28) Price: Call Us |
| 37 |
530015954 |
Screw-Ignition Module Price: $1.99 |
| 37 |
786024 |
Spacer Price: Call Us |
| 38 |
530014655 |
Switch Wire Ass'y. Price: $4.99 |
| 38 |
792018 |
Ring-Snap Price: Call Us |
| 39 |
530039163 |
Ignition Module Price: $34.99 |
| 39 |
776053 |
Shaft, Input Price: Call Us |
| 40 |
530036145 |
Spacer-Ignition Module Price: $1.99 |
| 40 |
778024 |
Gear (10 teeth) Price: Call Us |
| 41 |
530027569 |
Starter Handle Price: $1.99 |
| 41 |
780052 |
Washer-Thrust Price: Call Us |
| 42 |
530069421 |
Rope Kit Price: $2.99 |
| 42 |
788036 |
Seal Retainer Assy., Oil (Incl. No. 45) Price: Call Us |
| 43 |
530015774 |
Screw-Coupling Price: $1.99 |
| 43 |
778036 |
Gear-Output Price: Call Us |
| 44 |
545221701 |
FLYWHEEL ASSY This part replaces 530039149. Price: $8.99 |
| 44 |
778052 |
Pinion, Output Price: Call Us |
| 45 |
530015945 |
Retaining Ring-C'case Price: $1.99 |
| 45 |
788008 |
Seal-Oil Price: Call Us |
| 46 |
530019179 |
C'case Seal Price: $2.99 |
| 47 |
772041 |
Cover Assy., Transaxle (Incl. Nos.54,55,57,59,63 Price: Call Us |
| 48 |
530014864 |
Crankshaft Ass'y. Price: $14.99 |
| 48 |
770029 |
Case Assy., Transaxle (Incl. Nos. 54, 55, 57 63) Price: Call Us |
| 49 |
530019181 |
Gasket-Crankcase Price: $1.99 |
| 49 |
792007 |
Screw Price: Call Us |
| 49A |
792031 |
Screw Price: Call Us |
| 50 |
530036555 |
Shroud Price: $9.99 |
| 50 |
786026 |
Dowel Pin Price: Call Us |
| 51 |
530032124 |
Outer Bearing Price: $4.99 |
| 52 |
530015941 |
Retaining Ring-C'shaft Price: $1.99 |
| 52 |
792019 |
Plug-Magnetic Drain Price: Call Us |
| 53 |
530032125 |
Inner Bearing Price: $11.99 |
| 53 |
792055 |
Nut Price: Call Us |
| 54 |
530036404 |
Piston Ring Price: $4.99 |
| 54 |
780049 |
Bearing-Needle Price: Call Us |
| 55 |
530015934 |
Screw-Shroud Price: $1.99 |
| 55 |
530105 |
Bearing-Cartridge Price: Call Us |
| 57 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 57 |
780047 |
Bearing-Needle Price: Call Us |
| 58 |
530019223 |
Gasket-Cylinder Price: $1.99 |
| 59 |
780046 |
Bearing-Needle Price: Call Us |
| 60 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 61 |
530030075 |
Spark Plug (RCJ-8Y) Price: Call Us |
| 61 |
780001 |
Washer Price: Call Us |
| 62 |
530012353 |
CYLINDER This part replaces 530069619. Price: $6.99 |
| 62 |
776031 |
Shaft Pinion Price: Call Us |
| 63 |
530019233 |
Gasket - Cylin./Carb. This part replaces 530019185. Price: $1.99 |
| 63 |
780048 |
Bearing Needle Price: Call Us |
| 64 |
530036646 |
Carb. Adaptor Price: $1.99 |
| 64 |
776030 |
Shaft-Reverse Idler Price: Call Us |
| 65 |
530016014 |
Screw-Carb Adaptor Price: $1.99 |
| 65 |
786025 |
Spacer-Reverse Idler Price: Call Us |
| 66 |
530019194 |
Carb. Gasket Price: $1.99 |
| 66 |
778051 |
Idler-Reverse Price: Call Us |
| 67 |
530035328 |
Carburetor w/Choke Type 1 & 2 (WT-242) Price: $19.24 |
| 67 |
530071634 |
Carburetor w/Choke Type 3 (WT-630) This part replaces 530069654. Price: $37.99 |
| 67 |
778038 |
Gear-Spur (22 Teeth) Price: Call Us |
| 68 |
530036626 |
Air Box Base Price: $1.99 |
| 68 |
780039 |
Bearing-Thrust Price: Call Us |
| 69 |
530019190 |
Foam Seal Price: $1.99 |
| 69 |
774238 |
Carrier Assy., Differential (Incl. No. 76) Price: Call Us |
| 70 |
530036622 |
Airbox Cover Price: $1.99 |
| 70 |
774239 |
Carrier Assy., Differential (Incl. No. 76) Price: Call Us |
| 71 |
530015887 |
Screw-Airbox Cover Price: $1.99 |
| 71 |
792060 |
Tab, Locking Price: Call Us |
| 72 |
530023877 |
Fuel Line Fitting Price: $1.99 |
| 72 |
788024 |
O-Ring Price: Call Us |
| 73 |
530038308 |
Fuel Line Retainer Price: $1.99 |
| 73 |
780007 |
Washer-Thrust Price: Call Us |
| 74 |
530036180 |
Muffler Screen Price: $1.99 |
| 74 |
780051 |
Washer Price: Call Us |
| 75 |
530019144 |
Gasket-Carb. Price: $1.99 |
| 75 |
792010 |
Plug Price: Call Us |
| 76 |
530016197 |
Muffler Spring This part replaces 530029930. Price: $1.99 |
| 76 |
780041 |
Bushing Price: Call Us |
| 77 |
530016033 |
Washer-Blade Price: $1.99 |
| 78 |
530016032 |
Nut-Blade Price: $1.99 |
| 80 |
545008006 |
KIT STARTER SPRING This part replaces 530037229. Price: $3.99 |
| 82 |
530037224 |
Eyelet Price: $1.99 |
| 83 |
530071258 |
Gear Set Kit Price: $14.99 |
| 84 |
530019199 |
Gasket-Tube Price: $1.99 |
| 85 |
530027162 |
Starter Dog Price: $1.99 |
| 86 |
530042073 |
Starter Cam Price: $1.99 |
| 87 |
530042072 |
Starter Dog Wire Price: $1.99 |
| 88 |
530036922 |
Starter Cup Price: $2.99 |
| 89 |
530014832 |
Clutch Ass'y. Price: $5.99 |
| 90 |
530015127 |
Washer-Belleville Price: $1.99 |
| 91 |
530069599 |
Fuel Line Kit Price: $4.99 |
| 92 |
530095646 |
Assy-Fuel Pickup This part replaces 530014815. Price: $2.99 |
| 93 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 94 |
530058793 |
Fuel Tank Ass'y. Price: $24.99 |
| 95 |
530036792 |
Fuel Tank Isolator Price: $4.99 |
| 96 |
530626605 |
Nut Price: $1.99 |
| 97 |
530036665 |
Drum Clutch Price: $5.99 |
| 98 |
530095082 |
Front Shield Price: $3.33 |
| 99 |
530015843 |
Screw Price: $1.99 |
| 100 |
530036935 |
Dustplug Price: Call Us |
| 101 |
530015770 |
Screw-Bearing Holder Price: Call Us |
| 102 |
530036934 |
Bearing Holder Ass'y. Type 1 Price: $44.99 |
| 102 |
530037367 |
Bearing Holder Ass'y. Type 2 & 3 Price: $14.99 |
| 104 |
530095086 |
Blade Price: $4.99 |
| 106 |
530037625 |
Retainer Ring Price: $0.99 |
| 107 |
530016067 |
Shoulder Bolt Price: $1.99 |
| 108 |
530016040 |
Washer Price: $1.99 |
| 109 |
530095070 |
Drive Shaft Price: $14.99 |
| 110 |
530015814 |
Screw Price: $1.99 |
| 111 |
530014894 |
Gear Box Ass'y. Price: $65.32 |
| 112 |
530036675 |
Back Plate Price: $3.99 |
| 113 |
530036923 |
Spring Price: $2.99 |
| 114 |
530036683 |
Height Lever Price: $3.99 |
| 115 |
530027163 |
Retainer-Starter Pulley Price: $0.28 |
| 116 |
530016063 |
Nut-Swing Arm Price: $1.99 |
| 117 |
530015981 |
Bolt-Front Wheel Price: $1.99 |
| 118 |
530095125 |
Front Wheel Price: $5.99 |
| 119 |
530037279 |
Swing Arm Price: $4.99 |
| 120 |
530015515 |
Locknut-Swing Arm Price: $1.99 |
| 121 |
530036884 |
Front Axle Spring Price: $1.99 |
| 122 |
530001717 |
Washer-Thrust Price: $1.99 |
| 123 |
530015151 |
Washer-Flat Price: $1.99 |
| 124 |
530016042 |
Washer-Thrust Price: $1.99 |
