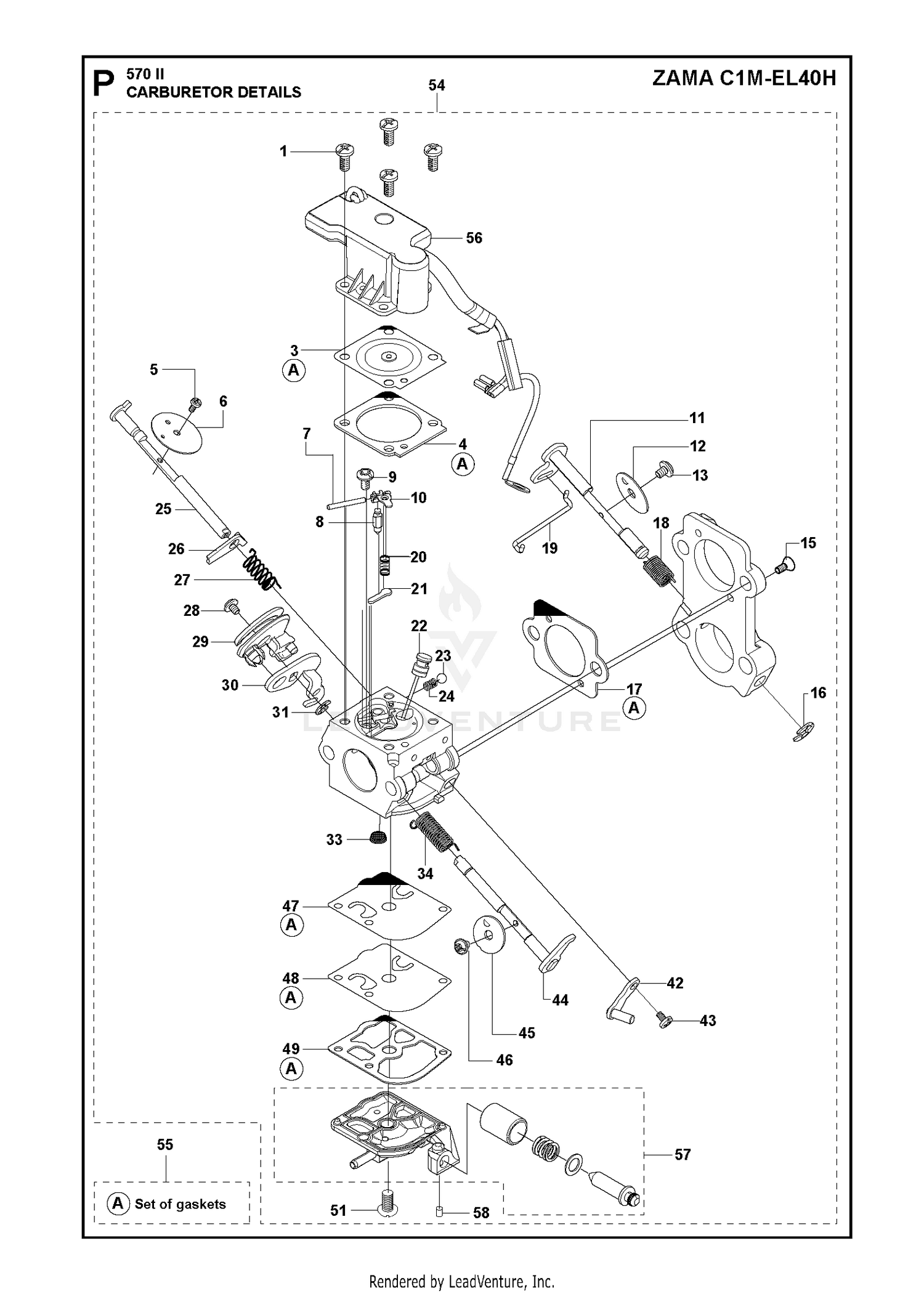

CARBURETOR DETAILS
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506396601 | SCREW Price: $1.51 |
| 3 | 504113801 | DIAPHRAGM Price: $22.99 |
| 4 | 504627901 | GASKET METERING Price: $4.99 |
| 5 | 503481801 | SCREW Price: $2.99 |
| 6 | 504627701 | CHOKE VALVE Price: $7.99 |
| 7 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 8 | 503479701 | INLET NEEDLE Price: $8.99 |
| 9 | 503480101 | SCREW Price: $2.99 |
| 10 | 503665901 | LEVER Price: $3.99 |
| 11 | 544237801 | SHAFT Price: $19.99 |
| 12 | 537177001 | THROTTLE FLAP Price: $14.99 |
| 13 | 503481801 | SCREW Price: $2.99 |
| 15 | 537385101 | SCREW Price: $2.99 |
| 16 | 537385001 | CLIP Price: $4.99 |
| 17 | 537385301 | GASKET Price: $3.99 |
| 18 | 537385501 | SPRING Price: $3.99 |
| 19 | 544237901 | ROD Price: $8.99 |
| 20 | 537383401 | SPRING Price: $3.99 |
| 21 | 504628001 | NEEDS DESCRIPTION Price: Call Us |
| 22 | 544237701 | JET Price: $14.99 |
| 23 | 537012501 | BALL Price: $2.99 |
| 24 | 537012601 | SPRING Price: $2.99 |
| 26 | 544238001 | LEVER Price: $7.99 |
| 27 | 537384401 | SPRING Price: $3.99 |
| 28 | 503479001 | SCREW Price: $2.99 |
| 29 | 544387601 | THROTTLE LEVER ASSY Price: $24.99 |
| 30 | 537384101 | LEVER Price: $4.99 |
| 33 | 503535701 | STRAINER Price: $3.99 |
| 34 | 537382901 | SPRING Price: $3.99 |
| 42 | 537384501 | LEVER Price: $17.99 |
| 43 | 503479001 | SCREW Price: $2.99 |
| 45 | 504627801 | NEEDS DESCRIPTION Price: Call Us |
| 47 | 537383101 | PUMP DIAPHRAGM Price: $11.99 |
| 48 | 537403301 | DIAPHRAGM Price: $9.99 |
| 49 | 537020101 | GASKET Price: $3.99 |
| 51 | 503479601 | SCREW Price: $2.99 |
| 55 | 504644001 | GASKET SET KIT Price: $44.99 |
| 56 | 576694201 | VALVE HOUSING ASSY This part replaces 575355901. Price: $159.99 |
| 57 | 581463101 | IDLE SPEED SCREW TAMPERPROOF K Price: $27.99 |
| 58 | 503481101 | PLUG Price: $3.99 |
