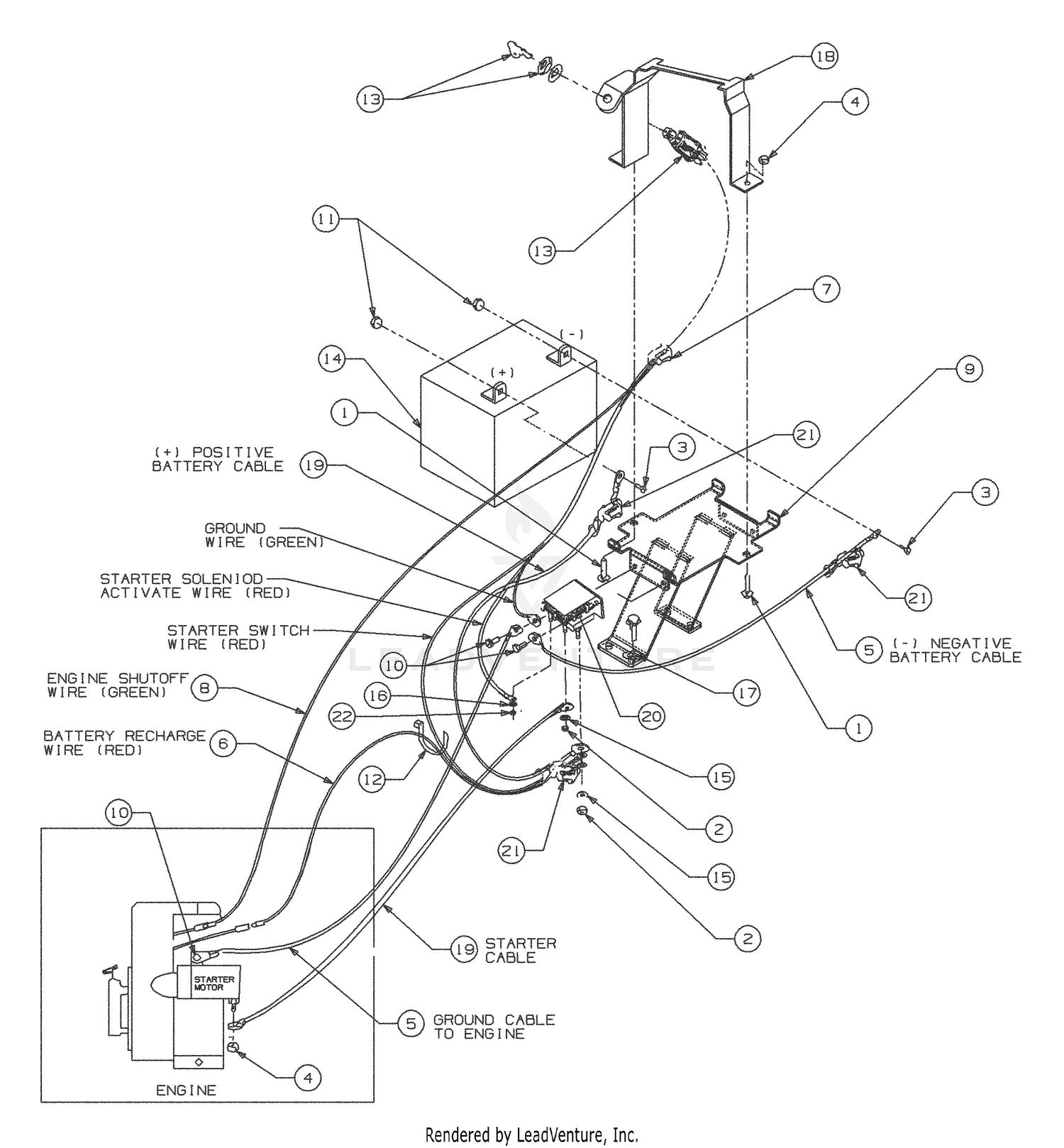

| Ref | Part Number | Description |
|---|
| 1 |
1186073 |
Carriage Screw, 1/4-20 x 1.25 Price: $2.67 |
| 2 |
912-3057 |
NUT-5/16X 24 This part replaces 1186211. Price: $5.94 |
| 3 |
1186390 |
Flange Screw, 1/4-20 x .625 Price: Call Us |
| 4 |
1186389 |
Hex Locknut, 1/4-20 Price: $3.05 |
| 5 |
1901202 |
Cable (ground wire to starter motor bracket) Price: $30.69 |
| 6 |
1901894 |
WIRE ASSEMBLY-RECHARGI Not Available Price: |
| 7 |
1908118 |
WIRE HARNESS Not Available Price: |
| 8 |
1917262 |
ASSM-WIRE SWITCH S Not Available Price: |
| 9 |
686-04024-0638 |
BATTERY BRACKET ASSEMBLY (MTD RED) Not Available This part replaces 686-04024. Price: |
| 10 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 11 |
712-3006 |
HEX NUT Price: $4.05 |
| 12 |
725-0157 |
Cable Tie Price: $3.46 |
| 13 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 14 |
925-1707D |
BATTERY Not Available This part replaces 725-1706. Price: |
| 15 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 16 |
936-0147 |
EXTERNAL WASHER #10 Not Available This part replaces 736-0147. Price: |
| 17 |
736-0607 |
External Lock Washer, 5/16 Price: $3.66 |
| 18 |
1900873 |
KEYSWITCH W/DECAL This part replaces GW-2614. Price: $142.31 |
| 19 |
GW-96510 |
Cable (solenoid to starter motor) This part replaces 96510. Price: $10.43 |
| 21 |
GW-97020 |
BOOT-BATTERY CABLE Not Available This part replaces 97020. Price: |
| 22 |
GW-9853 |
Sems Nut This part replaces 9853. Price: $6.01 |
