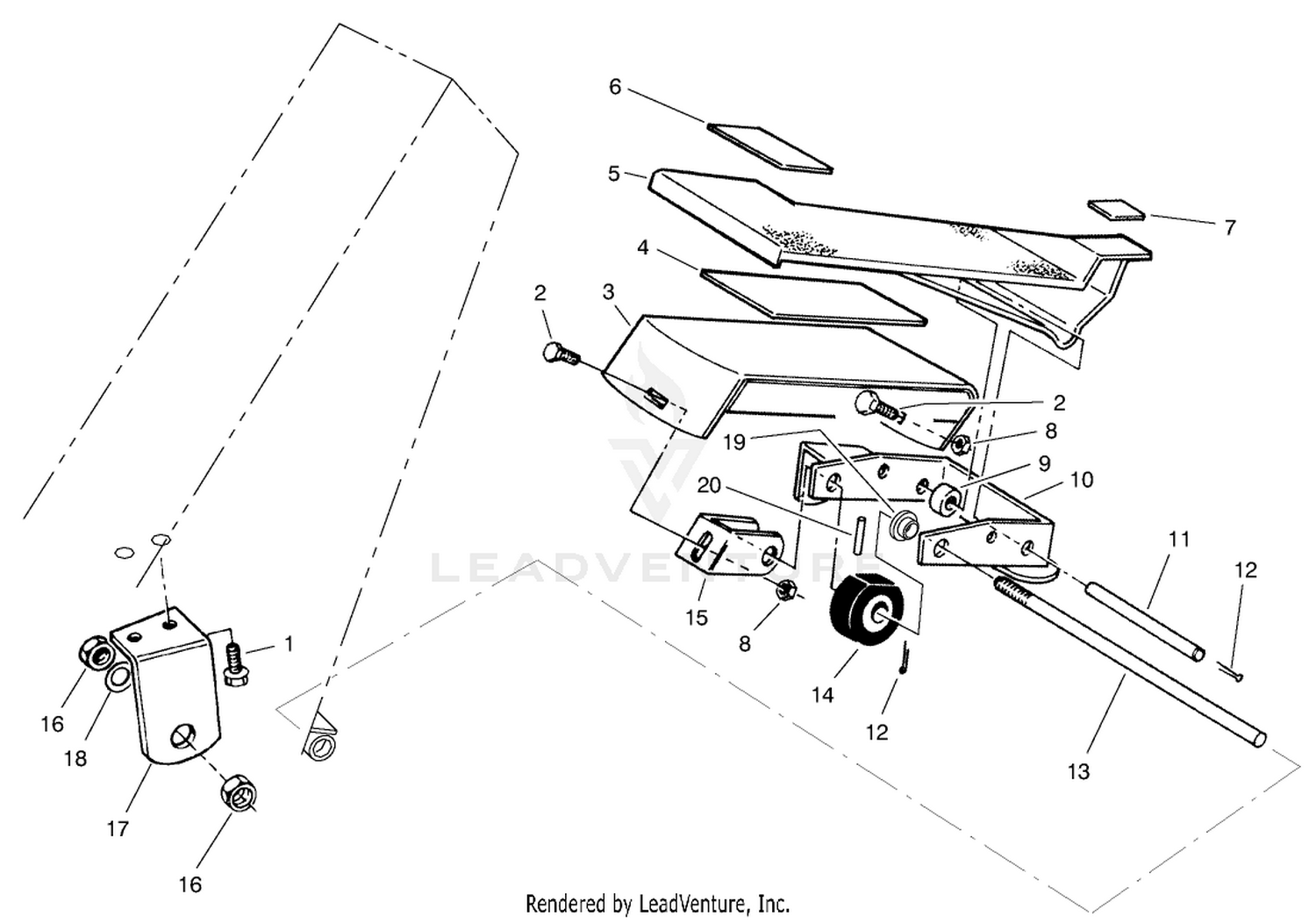

| Ref | Part Number | Description |
|---|
| 1 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 2 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 3 |
88-1710-01 |
FOOTREST ASM This part replaces 88-1710. Price: $62.29 |
| 4 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 5 |
94-3304-01 |
SUPPORT-PEDAL This part replaces 94-3304. Price: $121.34 |
| 6 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 7 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 8 |
32128-25 |
NUT-HF Price: $3.19 |
| 9 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 10 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 11 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 12 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 13 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 14 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 15 |
88-1680-01 |
BRACKET-FOOTREST This part replaces 88-1680. Price: $17.86 |
| 16 |
3218-5 |
NUT-JAM Price: $0.27 |
| 17 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 19 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
