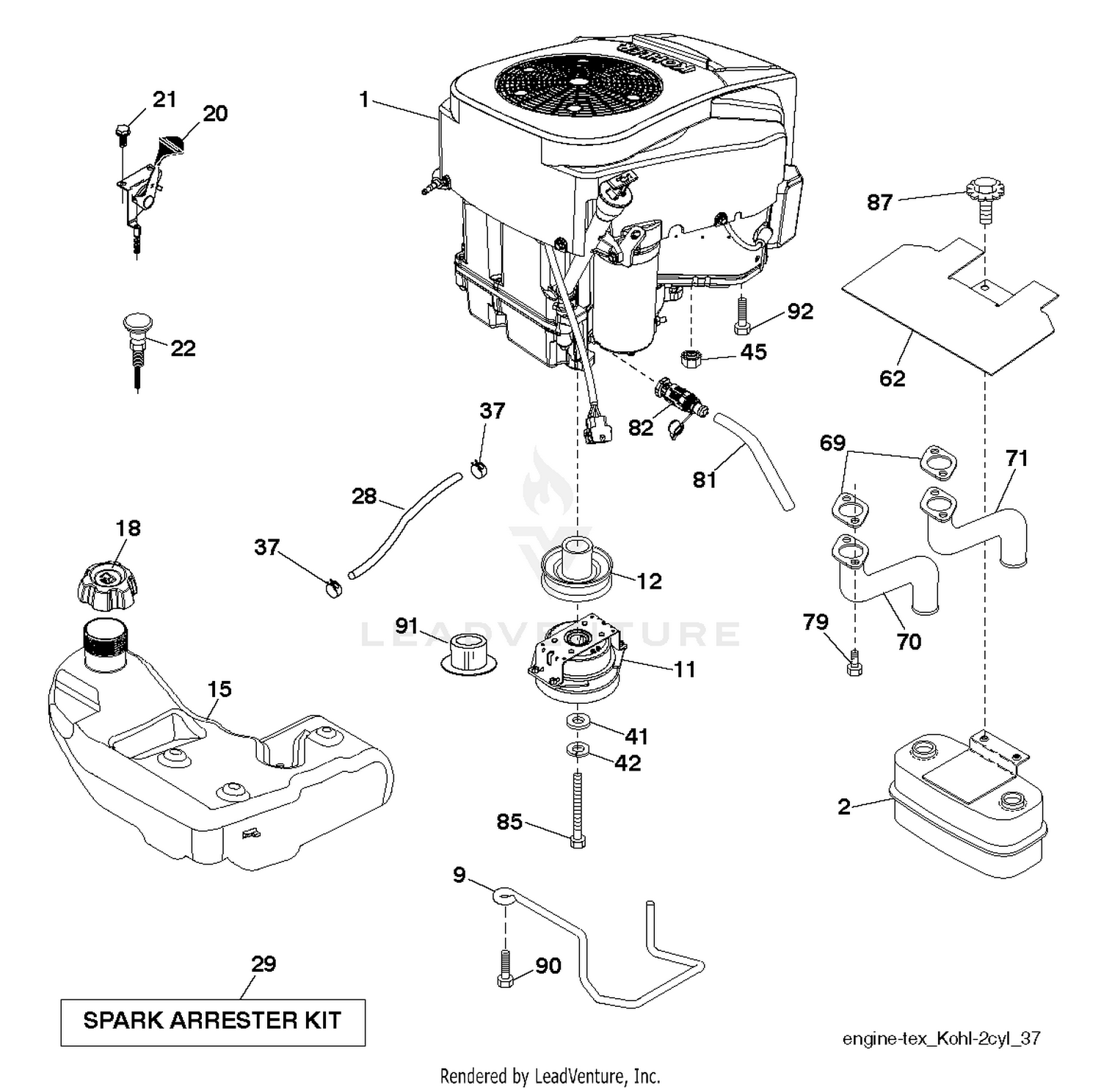

| Ref | Part Number | Description |
|---|
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
532400021 |
TANK.FUEL.SIDE-FILL.3.NON-EPA Price: $99.99 |
| 16 |
808417 |
Crankshaft Price: Call Us |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532439645. Price: $14.99 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 24 |
806066 |
Key-Flywheel Price: Call Us |
| 25 |
807619 |
Piston ASM (Standard) Price: Call Us |
| 26 |
807620 |
Ring Set (Standard) Price: Call Us |
| 27 |
805099 |
Lock-Piston Pin Price: Call Us |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
807621 |
Pin-Piston Price: Call Us |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
807900 |
Rod-Connecting (Standard) Price: Call Us |
| 32 |
805395 |
Screw-Hex. Price: Call Us |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
805654 |
Deflector-Oil Price: Call Us |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 46 |
807542 |
Gear-Cam Price: Call Us |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 146 |
94196 |
Key-Timing Price: Call Us |
| 243 |
807598 |
Screen-Oil Pump Price: Call Us |
| 305 |
805406 |
Screw Price: Call Us |
| 741 |
805984 |
Gear-Timing Price: Call Us |
| 819 |
805057 |
Screw Price: Call Us |
| 823 |
805317 |
Screw-HFH Price: Call Us |
| 1024 |
807644 |
Pump-Oil Price: Call Us |
| 807807 |
Piston |
ASM (.010 Oversize) Price: Call Us 807807 |
| 807808 |
Ring |
Set (.010 Oversize) Price: Call Us 807808 |
| 807809 |
Piston |
ASM (.020 Oversize) Price: Call Us 807809 |
| 807810 |
Ring |
Set (.020 Oversize) Price: Call Us 807810 |
| 807811 |
Piston |
ASM (.030 Oversize) Price: Call Us 807811 |
| 807812 |
Ring |
Set (.030 Oversize) Price: Call Us 807812 |
